Air Cleaner And Emissions

Aston Martin GT VANQUISH (2025-

Find Your Part

Aston Martin GT VANQUISH (2025- - Air Cleaner and Emissions

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

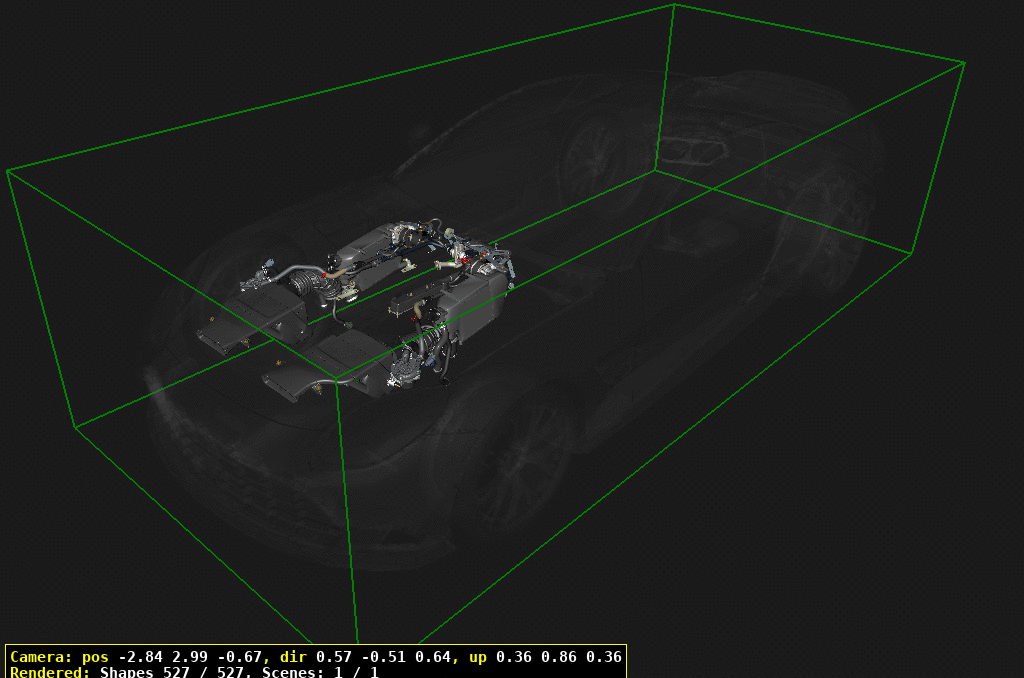

Air Cleaner and Emissions of Aston Martin Aston Martin GT VANQUISH (2025- Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
20 SY7Y52081AA
LH AIRBOX ASSY
Includes items 40-100 		- 1 Enquire
30 SY7Y52080AA
RH AIRBOX ASSY
Includes items 40-90 		- 1 Enquire
40 55030361
VALIGIA 24H BDGE F167RHT 		- 4 Enquire
50 55030362
VALIGIA 48H BDGE F167RHT 		- 4 Enquire
60 4G430410AA
Screw - 5.2x32 Self Tap 		- 12 Enquire
70 HY539601AA
AIR FILTER 		- 2 Enquire
80 HY5319214AA
O-RING 5MMX86MM ID 		- 2 Enquire
90 HY5312B579AA
MAF SENSOR
* Ensure replacementSensor is marked with aBLUE DOT. 		- 2 Enquire
100 HY5317Z606AA
CABLE CLIP 		- 1 Enquire
110 HY539G823AA
GROMMET - AIRBOX MTG 		- 4 Enquire
120 SY7Y9S449AA
PUMP INLET HOSE LH 		- 1 Enquire
130 SY7Y9S464AA
PUMP INLET HOSE RH 		- 1 Enquire
140 SY7Y9C623AA
LH CLEAN AIR DUCTS
Includes items 160-170 		- 1 Enquire
150 HY539C622AC
RH CLEAN AIR DUCTS
Includes items 160-170 		- 1 Enquire
160 HY539N832AA
BAND CLAMPS 		- 2 Enquire
170 HY53401101BA
WRM DRV CLMP 		- 2 Enquire
180 KY63106205AA
BLT-M6x35 CPWSHR 		- 4 Enquire
200 HY539C440AB
SCNDRY AIR PMP RH 		- 2 Enquire
210 SY7Y9S477AA
PIPE SYSTEM SAIS LH 		- 1 Enquire
220 SY7Y9S476AA
PIPE SYSTEM SAIS RH 		- 1 Enquire
230 703196
BOLT-M6x55 HEX FLNG 		- 4 Enquire
240 704328
Screw, M5 x 20, Torx Pan Head 		- 8 Enquire
250 HY539B449BB
FEED TUBE LH 		- 1 Enquire
260 HY539B448BB
FEED TUBE RH 		- 1 Enquire
270 702544
BOLT M6 x 50 HF PIL 8 		- 2 Enquire
280 HY539F491AD
AIR CONTROL VALVE 		- 2 Enquire
290 HY536G089BA
GASKET 		- 4 Enquire
300 703189
BOLT M8x16 HEX FLG CHROME FREE 		- 2 Enquire
310 HY539S477BC
REARLHSAIENGINEHOSE 		- 1 Enquire
320 HY539S476BA
PUMP DEL HOSE RH 		- 1 Enquire
330 HY539G491AC
BRACKET WIRE HRNS 		- 1 Enquire
350 HY530810210
VACUUM SOLENOID 		- 2 Enquire
360 HY539D438AA
VAC HARNESS-MAIN 		- 1 Enquire
370 HY539D438BA
VAC HARNESS LH 		- 1 Enquire
380 HY539D438CA
VAC HARNESS RH 		- 1 Enquire
500 HY536B673AD
SEPARATOR ASY OIL 		- 1 Enquire
510 HY536B752AA
FRONT OIL SPRTR GSKT 		- 1 Enquire
520 HY536B752BA
REAR OIL SPRTR GSKT 		- 1 Enquire
530 707155
BOLT-M6 x 65 		- 2 Enquire
540 702543
BOLT M6 x 25 PN TI PIL 8 		- 4 Enquire
550 SY7Y6N66NAA
HOSE ASY CRNKCS BRTH
Includes item 560 		- 1 Enquire
560 RY53SE2C444AA
SENSOR PRESSURE 		- 1 Enquire
570 HY5313447BA
OETIKER (34.4-37.6) 		- 1 Enquire
580 HY539E498BB
CONN ASY EMS VAC CNT 		- 1 Enquire
590 HY539E498AB
CONN ASY EMS VAC CNT 		- 1 Enquire
600 HY539E498EA
CONN ASY EMS VAC CNT 		- 1 Enquire
610 HY539E498FA
CONN ASY EMS VAC CNT 		- 1 Enquire
620 HY5313447AA
OETIKER (23.9-27.1) 		- 2 Enquire
700 HY539B051AD
PURGE VALVE
Clip On Isolator 		- 1 Enquire
720 HY539S331BD
THROTTLE CUFF 		- 2 Enquire
730 HY539W541AA
ADPT A/INTK CHG 		- 2 Enquire
740 HY539E926AA
T/BODY ASY - LH 		- 1 Enquire
750 HY539E927AA
T/BODY ASSY - RH 		- 1 Enquire
760 SY7Y6K808CA
SUPT-ENG CHG AIR BRK 		- 1 Enquire
770 SY7Y6K808BA
SUPT-ENG CHG AIR BRK 		- 1 Enquire
780 55031109
COMPL. LH ROOF LINKAGE COVER PANEL 		- 1 Enquire
790 HY539W549FA
INT MAN AD RH 		- 1 Enquire
800 HY53F9793AB
SEAL DCT TO THRTLE 		- 2 Enquire
810 703141
SCREW M8 x 16 CHROME FREE 		- 4 Enquire
820 HY53F9793AB
SEAL DCT TO THRTLE 		- 2 Enquire
830 703196
BOLT-M6x55 HEX FLNG 		- 8 Enquire
840 703025
Screw, M6 x 25, Hex Flange Head 		- 8 Enquire
850 HY539E936AA
O-RING-69 x 2 mm 		- 2 Enquire
900 14M0005CP
DECOUPLING RING - PDC SENSOR 		- 1 Enquire
910 14M1156CP
SENSOR - PDC - PRIMED 		- 1 Enquire
920 HY532976CB
TUB-MANF TO A/COMPLH 		- 1 Enquire
930 HY532976DB
TUB-MANF TO A/COM-RH 		- 1 Enquire
940 SY7Y9K308EA
TUB ASY AIR BYP L 		- 1 Enquire
950 SY7Y9K308FA
TUB ASY AIR BYP R 		- 1 Enquire
960 HY536K767BB
BRKT FR WCAC 		- 2 Enquire
970 55036988
PANTINA SX OPT PELLE USA 		- 1 Enquire
980 55040768
RH SIDE SEATS 		- 1 Enquire
990 HY536790AA
BUSH 		- 2 Enquire
1000 HY535144AA
SPACER 		- 2 Enquire
1010 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE 		- 2 Enquire
1020 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE 		- 8 Enquire
1030 703120
Screw M8-1.25-90 Hex Socket Head Shoulder 		- 2 Enquire
1040 HY536790BA
BUSH (REAR) 		- 2 Enquire
1050 55040797
RH SEAT CUSHION 		- 2 Enquire
1060 703265
Screw, M6 x 16, Hex Flange Head 		- 2 Enquire
1070 702637
SCREW M6X20 SKT HD 		- 6 Enquire
1080 HY53223035AA
RECIRC VALVE TR BCH 		- 2 Enquire
