Engine Power Conversion of Aston Martin Aston Martin DBS V12

View All

Aston Martin DBS V12 - Engine Power Conversion

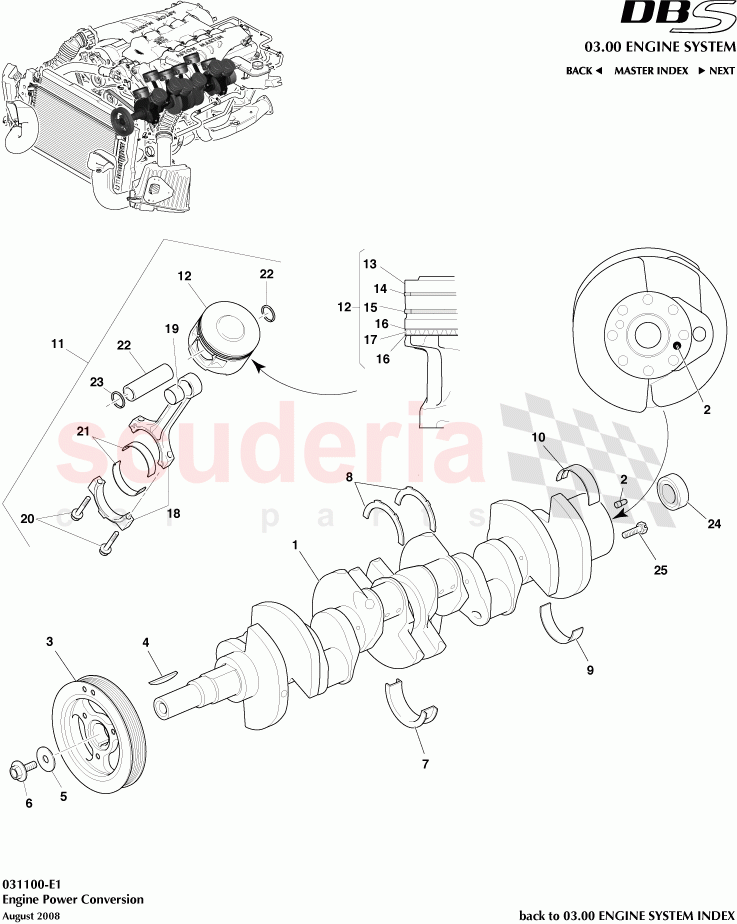

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G430210229	CrankShaft	$7,125.59	To Order

Photo	Part No	Description	Price (each)	Stock
	1R124110177	DOWEL PIN	$11.54	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210939	Pulley Assy, Crankshaft	$1,747.21	To Order

Photo	Part No	Description	Price (each)	Stock
	285008	Key, Crankshaft, 4.76 x 53.5	$31.34	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210821	WASHER 13.5 X 39.5 X 7.35 STEEL	$17.06	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210822	BOLT-M12x48 HF PIL10	$16.47	To Order

Photo	Part No	Description	Price (each)	Stock
	4R3E6A339AA	Washer CrankShaft MN Thrust Lower	$12.78	To Order

Photo	Part No	Description	Price (each)	Stock
	BR3E6A341BA	Washer, Crankshaft Main Thrust Upper	$9.31	To Order

Photo	Part No	Description	Price (each)	Stock
	4R3E6A338BA	Bearing, Crankshaft, Main, Lower (.012)	$20.31	To Order
	4R3E6A338CA	Bearing, Crankshaft, Main, Lower (.014)	$29.20	To Order
	285020	BEARING CRANKSHAFT MAIN LOWER	$31.18	To Order

Photo	Part No	Description	Price (each)	Stock
	4R3E6333BA	Bearing Crankshaft Main Upper Grade 2	$17.15	To Order
	4R3E6333CA	Bearing Crankshaft Main Upper Grade 3	$29.20	ARRIVING SOON
	4R3E6333AA	Bearing Crankshaft Main Upper Grade 1	$12.11	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4E6100BC	Piston and connecting rod assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285013	Piston Ring Compression Lower Orange/Yellow Ring	$22.57	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G4E6110AA	PISTON GRADE SIZE 1	$374.42	To Order
	4G4E6110BB	Piston, Grade 2	Enquire	To Order
	4G4E6110CB	Piston, Grade 3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210060	Piston Ring Compression Upper	$45.30	To Order

Photo	Part No	Description	Price (each)	Stock
	285013	Piston Ring Compression Lower Orange/Yellow Ring	$22.57	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	285014	Segment, Piston Oil Control Ring	$12.61	To Order

Photo	Part No	Description	Price (each)	Stock
	285015	Spacer, Piston Oil Control Segment	$11.54	To Order

Photo	Part No	Description	Price (each)	Stock
	6E5E6200A6B	Connecting rod assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210968	BUSH - CONN ROD V12	$5.69	To Order

Photo	Part No	Description	Price (each)	Stock
	285018	Bolt, Connecting Rod	$19.83	To Order

Photo	Part No	Description	Price (each)	Stock
	6E5E6211AB	Bearing, Connecting Rod	$26.10	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210955	PIN-PISTON (SINGLE)	$112.70	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210448	Retainer, Piston Pin	$3.00	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210061	Bearing Assembly Pilot	$34.64	To Order

Photo	Part No	Description	Price (each)	Stock
	697748	Plug-Oil Pan Drain	$26.96	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G430210229	CrankShaft	4G430210229 CrankShaft	$7,125.59	1
2	1R124110177	DOWEL PIN	1R124110177 DOWEL PIN	$11.54	1
3	4G430210939	Pulley Assy, Crankshaft	4G430210939 Pulley Assy, Crankshaft	$1,747.21	1
4	285008	Key, Crankshaft, 4.76 x 53.5	285008 Key, Crankshaft, 4.76 x 53.5	$31.34	1
5	4G430210821	WASHER 13.5 X 39.5 X 7.35 STEEL	4G430210821 WASHER 13.5 X 39.5 X 7.35 STEEL	$17.06	1
6	4G430210822	BOLT-M12x48 HF PIL10	4G430210822 BOLT-M12x48 HF PIL10	$16.47	1
7	4R3E6A339AA	Washer CrankShaft MN Thrust Lower	4R3E6A339AA Washer CrankShaft MN Thrust Lower	$12.78	1
8	BR3E6A341BA	Washer, Crankshaft Main Thrust Upper	BR3E6A341BA Washer, Crankshaft Main Thrust Upper	$9.31	2
9	4R3E6A338BA	Bearing, Crankshaft, Main, Lower (.012)	4R3E6A338BA Bearing, Crankshaft, Main, Lower (.012)	$20.31	-
9	4R3E6A338CA	Bearing, Crankshaft, Main, Lower (.014)	4R3E6A338CA Bearing, Crankshaft, Main, Lower (.014)	$29.20	-
9	285020	BEARING CRANKSHAFT MAIN LOWER	285020 BEARING CRANKSHAFT MAIN LOWER	$31.18	6
10	4R3E6333BA	Bearing Crankshaft Main Upper Grade 2	4R3E6333BA Bearing Crankshaft Main Upper Grade 2	$17.15	-
10	4R3E6333CA	Bearing Crankshaft Main Upper Grade 3 ARRIVING SOON	4R3E6333CA Bearing Crankshaft Main Upper Grade 3 ARRIVING SOON	$29.20	-
10	4R3E6333AA	Bearing Crankshaft Main Upper Grade 1	4R3E6333AA Bearing Crankshaft Main Upper Grade 1	$12.11	7
11	4G4E6100BC	Piston and connecting rod assy	4G4E6100BC Piston and connecting rod assy	-	12	Enquire
12	285013	Piston Ring Compression Lower Orange/Yellow Ring ARRIVING SOON	285013 Piston Ring Compression Lower Orange/Yellow Ring ARRIVING SOON	$22.57	-
13	4G4E6110AA	PISTON GRADE SIZE 1	4G4E6110AA PISTON GRADE SIZE 1	$374.42	-
13	4G4E6110BB	Piston, Grade 2	4G4E6110BB Piston, Grade 2	-	-	Enquire
13	4G4E6110CB	Piston, Grade 3	4G4E6110CB Piston, Grade 3	-	-	Enquire
14	1R120210060	Piston Ring Compression Upper	1R120210060 Piston Ring Compression Upper	$45.30	12
15	285013	Piston Ring Compression Lower Orange/Yellow Ring ARRIVING SOON	285013 Piston Ring Compression Lower Orange/Yellow Ring ARRIVING SOON	$22.57	12
16	285014	Segment, Piston Oil Control Ring	285014 Segment, Piston Oil Control Ring	$12.61	24
17	285015	Spacer, Piston Oil Control Segment	285015 Spacer, Piston Oil Control Segment	$11.54	12
18	6E5E6200A6B	Connecting rod assy	6E5E6200A6B Connecting rod assy	-	12	Enquire
19	4G430210968	BUSH - CONN ROD V12	4G430210968 BUSH - CONN ROD V12	$5.69	12
20	285018	Bolt, Connecting Rod	285018 Bolt, Connecting Rod	$19.83	24
21	6E5E6211AB	Bearing, Connecting Rod	6E5E6211AB Bearing, Connecting Rod	$26.10	24
22	4G430210955	PIN-PISTON (SINGLE)	4G430210955 PIN-PISTON (SINGLE)	$112.70	12
23	1R120210448	Retainer, Piston Pin	1R120210448 Retainer, Piston Pin	$3.00	24
24	1R120210061	Bearing Assembly Pilot	1R120210061 Bearing Assembly Pilot	$34.64	1
25	697748	Plug-Oil Pan Drain	697748 Plug-Oil Pan Drain	$26.96	8
