Engine Cooling (Engine Fit)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Engine Cooling (engine fit)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8G438A586AC Housing & Connection Assy, Engine Thermostat Enquire To Order
Photo Part No Description Price (each) Stock
4G4E8575AB Thermostat Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
3285116 Seal Thermostat Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
3285114 O Ring - Seal Housing Enquire To Order
Photo Part No Description Price (each) Stock
6G433910080 Sensor, Engine Coolant Temperature Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
3285112 O Ring - Water Outlet Enquire To Order
Photo Part No Description Price (each) Stock
3285113 O RING SEAL Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
702855 BOLT &WASHER-M6x30 HEX FLG PIL Enquire To Order
Photo Part No Description Price (each) Stock
7G438A588AA Bracket, Engine Thermostat Connector Enquire To Order
Photo Part No Description Price (each) Stock
585104 Pulley, Water Pump Enquire To Order
4G4318482AA Hose Guard, Water Pump Enquire To Order
585382 Gasket, Water Pump Enquire To Order
Photo Part No Description Price (each) Stock
1R123210531 WATER PUMP PRESS IN SEAL Enquire To Order
4G430510957 WATER PUMP (NOSE CONE ASSEMBLY) Enquire To Order
Photo Part No Description Price (each) Stock
8G438A513AA CVR ASY WTR PMP Enquire To Order
Photo Part No Description Price (each) Stock
703194 BOLT M8x45 HEX FLNG CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
703694 BOLT & WASHER M8x45 HF PIL 8 Enquire To Order
Photo Part No Description Price (each) Stock
702842 Bolt, M8 x 1.25 x 41, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
585308 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
585104 Pulley, Water Pump Enquire To Order
Photo Part No Description Price (each) Stock
702843 Screw and Washer, M8 x 1.25 x 19, Hex Head Enquire To Order
View All

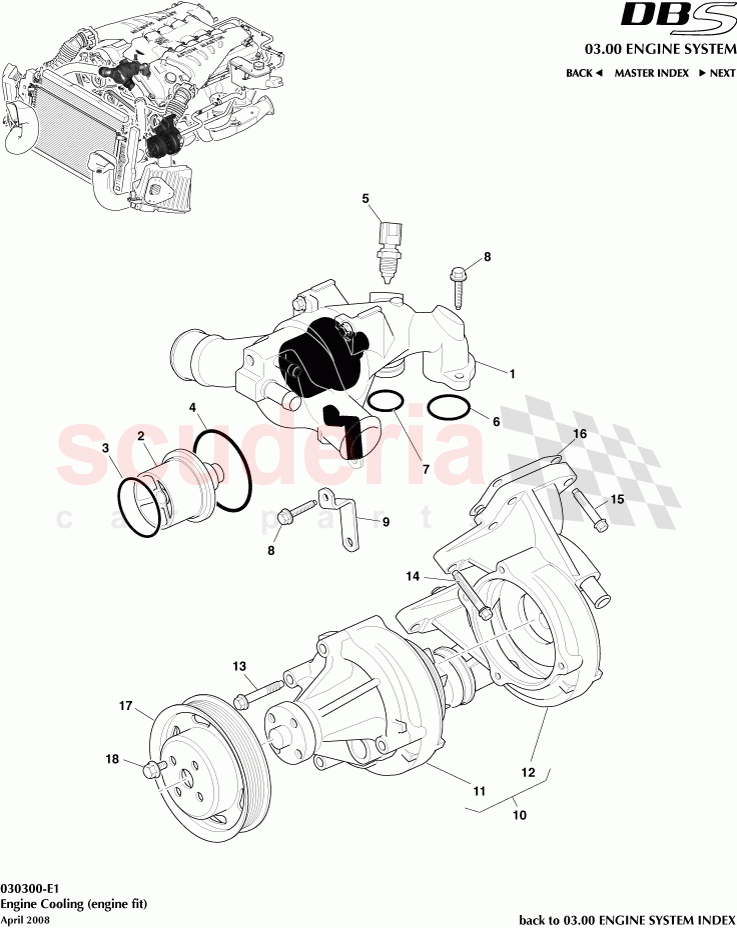

Engine Cooling (engine fit) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8G438A586AC
Housing & Connection Assy, Engine Thermostat 		- 1 Enquire
2 4G4E8575AB
Thermostat
ARRIVING SOON 		- 1 Enquire
3 3285116
Seal Thermostat
ARRIVING SOON 		- 1 Enquire
4 3285114
O Ring - Seal Housing 		- 1 Enquire
5 6G433910080
Sensor, Engine Coolant Temperature
ARRIVING SOON 		- 1 Enquire
6 3285112
O Ring - Water Outlet 		- 1 Enquire
7 3285113
O RING SEAL
ARRIVING SOON 		- 1 Enquire
8 702855
BOLT &WASHER-M6x30 HEX FLG PIL 		- 6 Enquire
9 7G438A588AA
Bracket, Engine Thermostat Connector 		- 1 Enquire
10 585104
Pulley, Water Pump 		- 1 Enquire
10 4G4318482AA
Hose Guard, Water Pump 		- 1 Enquire
10 585382
Gasket, Water Pump 		- 1 Enquire
11 1R123210531
WATER PUMP PRESS IN SEAL 		- 1 Enquire
11 4G430510957
WATER PUMP (NOSE CONE ASSEMBLY) 		- 1 Enquire
12 8G438A513AA
CVR ASY WTR PMP 		- 1 Enquire
13 703194
BOLT M8x45 HEX FLNG CHROME FREE 		- 4 Enquire
14 703694
BOLT & WASHER M8x45 HF PIL 8 		- 3 Enquire
15 702842
Bolt, M8 x 1.25 x 41, Hex Flange Head 		- 3 Enquire
16 585308
Gasket 		- 3 Enquire
17 585104
Pulley, Water Pump 		- 1 Enquire
18 702843
Screw and Washer, M8 x 1.25 x 19, Hex Head 		- 4 Enquire
