Name: Accessory Drive
Rating: 4.4 (1 reviews)

View All

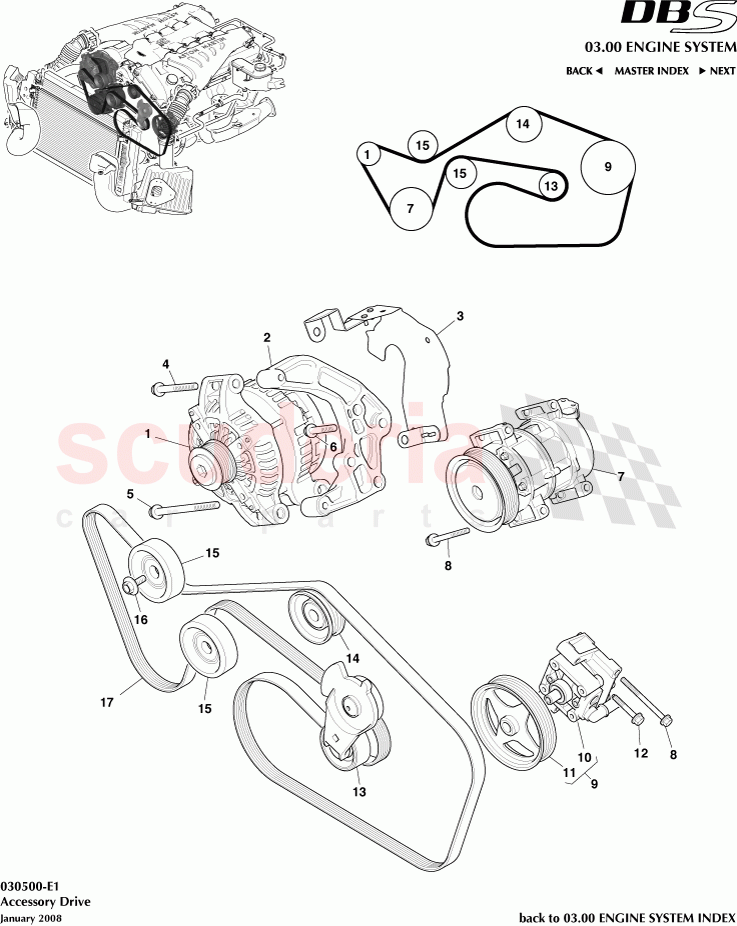

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D3310300AA	Alternator, 200A	$1,498.77	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3310239AB	BRKT ASY-ALT MTG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4310A346BA	HEATSHIELD - ALTERNATOR	$59.57	To Order

Photo	Part No	Description	Price (each)	Stock
	700140	Bolt and Washer, M10 x 97.5	$42.00	To Order

Photo	Part No	Description	Price (each)	Stock
	704079	Bolt, M10 x 150, Hex Flg Hd	$8.81	To Order

Photo	Part No	Description	Price (each)	Stock
	703692	Bolt, flg, M10x45, Alt bkt to cl hd	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3319D629AB	Compressor & Clutch, A/C	$1,369.92	To Order

Photo	Part No	Description	Price (each)	Stock
	702557	BOLT M8 X 100 HF 8	$26.51	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433A696AD	Pump and Pulley Assy, Power Steering	$1,894.39	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433A696AD	Pump and Pulley Assy, Power Steering	$1,894.39	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433A696AD	Pump and Pulley Assy, Power Steering	$1,894.39	To Order

Photo	Part No	Description	Price (each)	Stock
	702558	BOLT M8 X 60	$16.08	To Order

Photo	Part No	Description	Price (each)	Stock
	585368	Tensioner Drive Belt	$280.70	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120510530	Idler Pulley Grooved	$158.59	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120510488	Pulley, Engine Idler	$112.11	To Order

Photo	Part No	Description	Price (each)	Stock
	707627	SCREW M8 X 25MM HEX HEAD	$8.72	To Order

Photo	Part No	Description	Price (each)	Stock
	ED238620AA	Feed Drive Belt	$92.62	ARRIVING SOON

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8D3310300AA	Alternator, 200A	8D3310300AA Alternator, 200A	$1,498.77	1
2	CD3310239AB	BRKT ASY-ALT MTG	CD3310239AB BRKT ASY-ALT MTG	-	1	Enquire
3	8G4310A346BA	HEATSHIELD - ALTERNATOR	8G4310A346BA HEATSHIELD - ALTERNATOR	$59.57	1
4	700140	Bolt and Washer, M10 x 97.5	700140 Bolt and Washer, M10 x 97.5	$42.00	2
5	704079	Bolt, M10 x 150, Hex Flg Hd	704079 Bolt, M10 x 150, Hex Flg Hd	$8.81	1
6	703692	Bolt, flg, M10x45, Alt bkt to cl hd	703692 Bolt, flg, M10x45, Alt bkt to cl hd	$23.23	3
7	6G3319D629AB	Compressor & Clutch, A/C	6G3319D629AB Compressor & Clutch, A/C	$1,369.92	1
8	702557	BOLT M8 X 100 HF 8	702557 BOLT M8 X 100 HF 8	$26.51	6
9	4G433A696AD	Pump and Pulley Assy, Power Steering	4G433A696AD Pump and Pulley Assy, Power Steering	$1,894.39	1
10	4G433A696AD	Pump and Pulley Assy, Power Steering	4G433A696AD Pump and Pulley Assy, Power Steering	$1,894.39	1
11	4G433A696AD	Pump and Pulley Assy, Power Steering	4G433A696AD Pump and Pulley Assy, Power Steering	$1,894.39	1
12	702558	BOLT M8 X 60	702558 BOLT M8 X 60	$16.08	2
13	585368	Tensioner Drive Belt	585368 Tensioner Drive Belt	$280.70	1
14	1R120510530	Idler Pulley Grooved	1R120510530 Idler Pulley Grooved	$158.59	1
15	1R120510488	Pulley, Engine Idler	1R120510488 Pulley, Engine Idler	$112.11	2
16	707627	SCREW M8 X 25MM HEX HEAD	707627 SCREW M8 X 25MM HEX HEAD	$8.72	3
17	ED238620AA	Feed Drive Belt ARRIVING SOON	ED238620AA Feed Drive Belt ARRIVING SOON	$92.62	1
