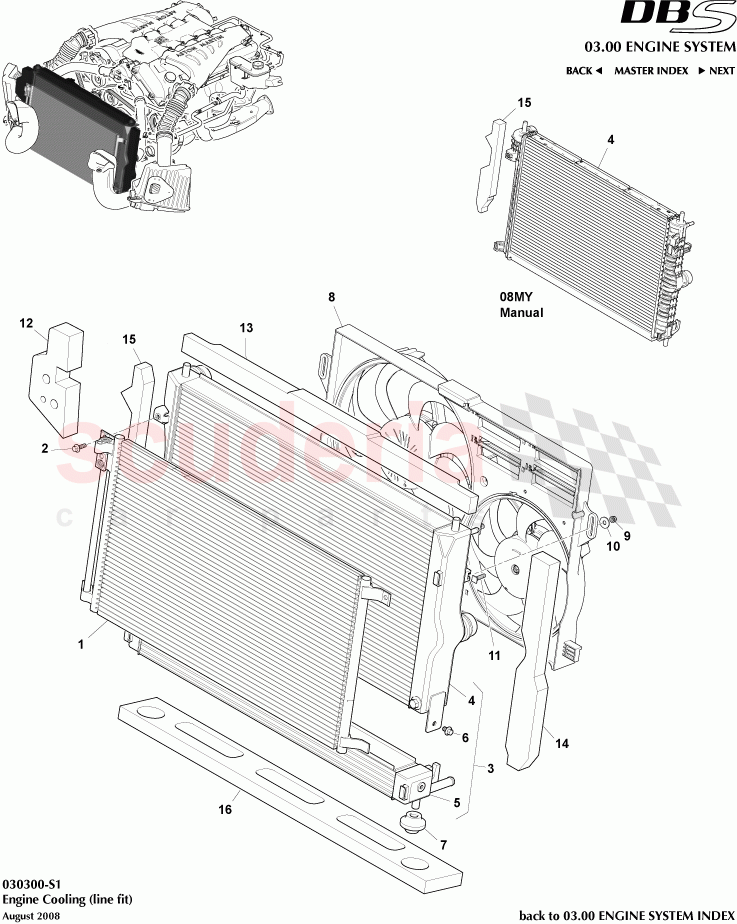

Aston Martin DBS V12 - Engine Cooling (line fit)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G4319710AA	Condenser	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703750	Bolt, M6 x 20, Hex Flg Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D338W000AA	Combined Radiator/Transmission Oil Cooler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D338W000AA	Combined Radiator/Transmission Oil Cooler	Enquire	To Order
	8D338005AC	RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D338W000AA	Combined Radiator/Transmission Oil Cooler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703202	Screw, M8 x 12, Flange Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3285101PK	Bush Mounting Upper (Pack of 2)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D338C607AD	Fan Module	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699614	WASHER 22 X 6.8 X 2 STAINLESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703728	Screw, M6 x 19, Square Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C8585BA	Foam Pad	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG438N301AA	Foam Seal - Upper Fan Module	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33F8B171AA	FOAM SEAL - L/HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33F8B170AA	FOAM SEAL - R/HAND	Enquire	To Order
	8D33F8B170AA	FOAM SEAL - R/HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12322666AAPK	COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12	Enquire	To Order
	CG438C477AD	Foam Seal, Lower	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9G4319710AA	Condenser	9G4319710AA Condenser	-	1	Enquire
2	703750	Bolt, M6 x 20, Hex Flg Hd	703750 Bolt, M6 x 20, Hex Flg Hd	-	1	Enquire
3	9D338W000AA	Combined Radiator/Transmission Oil Cooler	9D338W000AA Combined Radiator/Transmission Oil Cooler 9.5MY	-	1	Enquire
4	9D338W000AA	Combined Radiator/Transmission Oil Cooler	9D338W000AA Combined Radiator/Transmission Oil Cooler 9.5MY	-	1	Enquire
4	8D338005AC	RADIATOR	8D338005AC RADIATOR 08MY	-	1	Enquire
5	9D338W000AA	Combined Radiator/Transmission Oil Cooler	9D338W000AA Combined Radiator/Transmission Oil Cooler 9.5MY	-	1	Enquire
6	703202	Screw, M8 x 12, Flange Hd	703202 Screw, M8 x 12, Flange Hd	-	2	Enquire
7	3285101PK	Bush Mounting Upper (Pack of 2)	3285101PK Bush Mounting Upper (Pack of 2)	-	4	Enquire
8	8D338C607AD	Fan Module	8D338C607AD Fan Module	-	1	Enquire
9	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	2	Enquire
10	699614	WASHER 22 X 6.8 X 2 STAINLESS	699614 WASHER 22 X 6.8 X 2 STAINLESS	-	2	Enquire
11	703728	Screw, M6 x 19, Square Head	703728 Screw, M6 x 19, Square Head	-	2	Enquire
12	4G43C8585BA	Foam Pad	4G43C8585BA Foam Pad	-	1	Enquire
13	CG438N301AA	Foam Seal - Upper Fan Module	CG438N301AA Foam Seal - Upper Fan Module	-	1	Enquire
14	8D33F8B171AA	FOAM SEAL - L/HAND	8D33F8B171AA FOAM SEAL - L/HAND	-	1	Enquire
15	9D33F8B170AA	FOAM SEAL - R/HAND	9D33F8B170AA FOAM SEAL - R/HAND 9.5MY	-	1	Enquire
15	8D33F8B170AA	FOAM SEAL - R/HAND	8D33F8B170AA FOAM SEAL - R/HAND 08MY	-	1	Enquire
16	1R12322666AAPK	COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12	1R12322666AAPK COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12 Litre	-	1	Enquire
16	CG438C477AD	Foam Seal, Lower	CG438C477AD Foam Seal, Lower	-	1	Enquire
