Engine Structure of Aston Martin Aston Martin DBS V12

View All

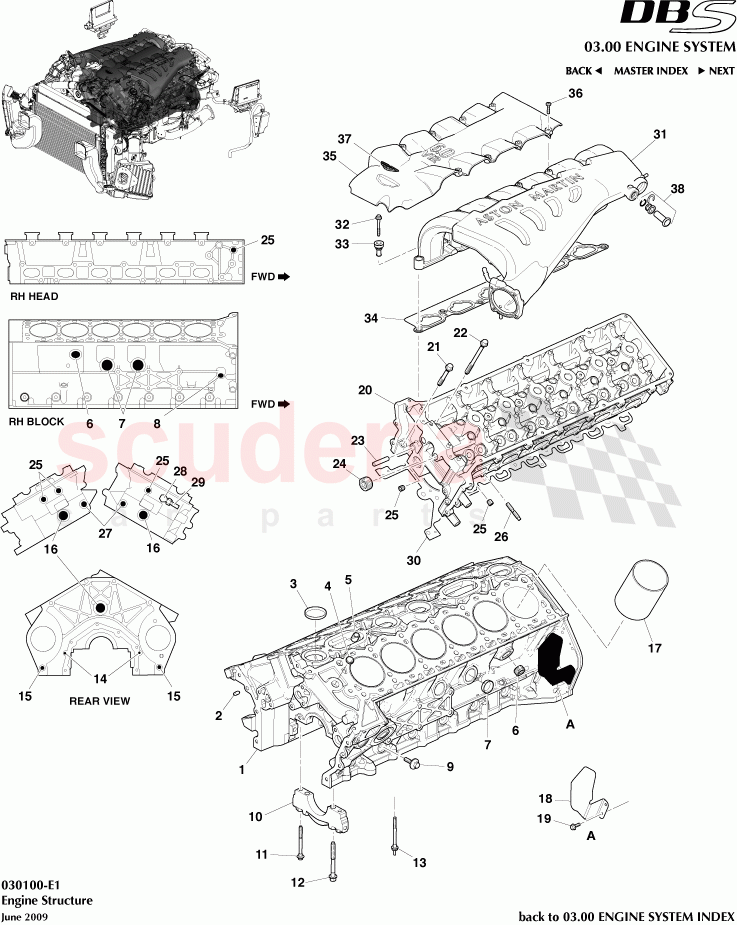

Aston Martin DBS V12 - Engine Structure

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD436010AA	CYLINDER BLOCK ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184995	Dowel, 8 x 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185000	Plug, 52.6 dia cup	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185001	Plug, Cup Expansion	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184994	Dowel, 16 x 19	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184998	PLUG-PIPE 3/4x14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184997	Plug 1.26 Cup (32mm)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184998	PLUG-PIPE 3/4x14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110819	Bolt Main Bearing Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120110678	CAP-CRANKSHAFT MAIN BRG-REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110203	Bolt, M10 x 1.5 x 91	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	185133	Stud Bolt, Bearing Caps	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	707151	PIN-6x16 DWL CHMFR H	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699134	Dowel, Hollow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184998	PLUG-PIPE 3/4x14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G436055AA	Cylinder Liner, V12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G436K342BB	CRANK SENSOR HEATSHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D336M099AA	Cylinder head assy LH (inc valves/adjusters/springs etc, minus cams etc)	Enquire	To Order
	8D336F093AA	Cylinder head assy RH (inc valves/adjusters/springs etc, minus cams etc)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703690	Bolt M8 x 63 Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184996	DOWEL-10x49.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685032	PLUG-1 x 11.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186452	Plug, 1/4-18 x 10.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703704	Stud, M8 x 13.6+16, Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	686441	PLUG-3/8 - 18x 10.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED230610174	ADAPTOR-O/PRESS SWTC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910532	Switch, Oil Pressure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336083AA	Gasket, Cylinder Head, LH	Enquire	To Order
	CD336051AA	Gasket, Cylinder Head, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD239424BA	Intake, Manifold Assy LH	Enquire	To Order
	AD239424AA	Intake, Manifold Assy RH	Enquire	To Order
	AD239424BA	Intake, Manifold Assy LH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430810002	Isolator, Intake, Manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D339J444AA	Support, Intake, manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702847	SCREW-M6x25 PAN INT LOB 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33001B46BB	Wing Badge, Engine Manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432A411AA	CARTRIDGE ASSEMBLY	Enquire	ARRIVING SOON

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	91951	ENGINE ASSY-DBS	91951 ENGINE ASSY-DBS DBS, 11MY	-	1	Enquire
-	91951	ENGINE ASSY-DBS	91951 ENGINE ASSY-DBS DBS	-	1	Enquire
1	AD436010AA	CYLINDER BLOCK ASSY	AD436010AA CYLINDER BLOCK ASSY	-	1	Enquire
2	184995	Dowel, 8 x 18	184995 Dowel, 8 x 18	-	2	Enquire
3	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup	-	4	Enquire
4	185001	Plug, Cup Expansion	185001 Plug, Cup Expansion	-	1	Enquire
5	184994	Dowel, 16 x 19	184994 Dowel, 16 x 19	-	4	Enquire
6	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14	-	2	Enquire
7	184997	Plug 1.26 Cup (32mm)	184997 Plug 1.26 Cup (32mm)	-	4	Enquire
8	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14	-	7	Enquire
9	4G430110819	Bolt Main Bearing Cap	4G430110819 Bolt Main Bearing Cap	-	14	Enquire
10	1R120110678	CAP-CRANKSHAFT MAIN BRG-REAR	1R120110678 CAP-CRANKSHAFT MAIN BRG-REAR	-	7	Enquire
11	4G430110203	Bolt, M10 x 1.5 x 91	4G430110203 Bolt, M10 x 1.5 x 91	-	14	Enquire
12	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	4G430110202 Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	-	10	Enquire
13	185133	Stud Bolt, Bearing Caps ARRIVING SOON	185133 Stud Bolt, Bearing Caps ARRIVING SOON	-	4	Enquire
14	707151	PIN-6x16 DWL CHMFR H	707151 PIN-6x16 DWL CHMFR H	-	2	Enquire
15	699134	Dowel, Hollow	699134 Dowel, Hollow	-	2	Enquire
16	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14	-	3	Enquire
17	7G436055AA	Cylinder Liner, V12	7G436055AA Cylinder Liner, V12	-	12	Enquire
18	8G436K342BB	CRANK SENSOR HEATSHIELD	8G436K342BB CRANK SENSOR HEATSHIELD	-	1	Enquire
19	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
20	8D336M099AA	Cylinder head assy LH (inc valves/adjusters/springs etc, minus cams etc)	8D336M099AA Cylinder head assy LH (inc valves/adjusters/springs etc, minus cams etc)	-	1	Enquire
20	8D336F093AA	Cylinder head assy RH (inc valves/adjusters/springs etc, minus cams etc)	8D336F093AA Cylinder head assy RH (inc valves/adjusters/springs etc, minus cams etc)	-	1	Enquire
21	703690	Bolt M8 x 63 Hex Flange Head	703690 Bolt M8 x 63 Hex Flange Head	-	4	Enquire
22	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	686044 Bolt M10 x 1.5 x 151.5, Hex Flange Head	-	28	Enquire
23	184996	DOWEL-10x49.25	184996 DOWEL-10x49.25	-	2	Enquire
24	685032	PLUG-1 x 11.5	685032 PLUG-1 x 11.5	-	1	Enquire
25	186452	Plug, 1/4-18 x 10.8	186452 Plug, 1/4-18 x 10.8	-	2	Enquire
26	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head	-	24	Enquire
27	686441	PLUG-3/8 - 18x 10.8	686441 PLUG-3/8 - 18x 10.8	-	2	Enquire
28	ED230610174	ADAPTOR-O/PRESS SWTC	ED230610174 ADAPTOR-O/PRESS SWTC	-	1	Enquire
29	1R123910532	Switch, Oil Pressure	1R123910532 Switch, Oil Pressure	-	1	Enquire
30	CD336083AA	Gasket, Cylinder Head, LH	CD336083AA Gasket, Cylinder Head, LH	-	1	Enquire
30	CD336051AA	Gasket, Cylinder Head, RH	CD336051AA Gasket, Cylinder Head, RH	-	1	Enquire
31	AD239424BA	Intake, Manifold Assy LH	AD239424BA Intake, Manifold Assy LH 10MY	-	1	Enquire
31	AD239424AA	Intake, Manifold Assy RH	AD239424AA Intake, Manifold Assy RH 10MY	-	1	Enquire
31	AD239424BA	Intake, Manifold Assy LH	AD239424BA Intake, Manifold Assy LH	-	1	Enquire
31	AD239424AA	Intake, Manifold Assy RH	AD239424AA Intake, Manifold Assy RH	-	1	Enquire
32	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	702852 BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	-	14	Enquire
33	4G430810002	Isolator, Intake, Manifold	4G430810002 Isolator, Intake, Manifold	-	14	Enquire
34	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	1R120810077PK Inlet Manifold Head Gasket (Pack of 2)	-	2	Enquire
35	8D339J444AA	Support, Intake, manifold	8D339J444AA Support, Intake, manifold	-	1	Enquire
36	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8	-	8	Enquire
37	8D33001B46BB	Wing Badge, Engine Manifold	8D33001B46BB Wing Badge, Engine Manifold	-	1	Enquire
38	4G432A411AA	CARTRIDGE ASSEMBLY ARRIVING SOON	4G432A411AA CARTRIDGE ASSEMBLY ARRIVING SOON	-	1	Enquire
