Coolant Hoses of Aston Martin Aston Martin DBS V12

View All

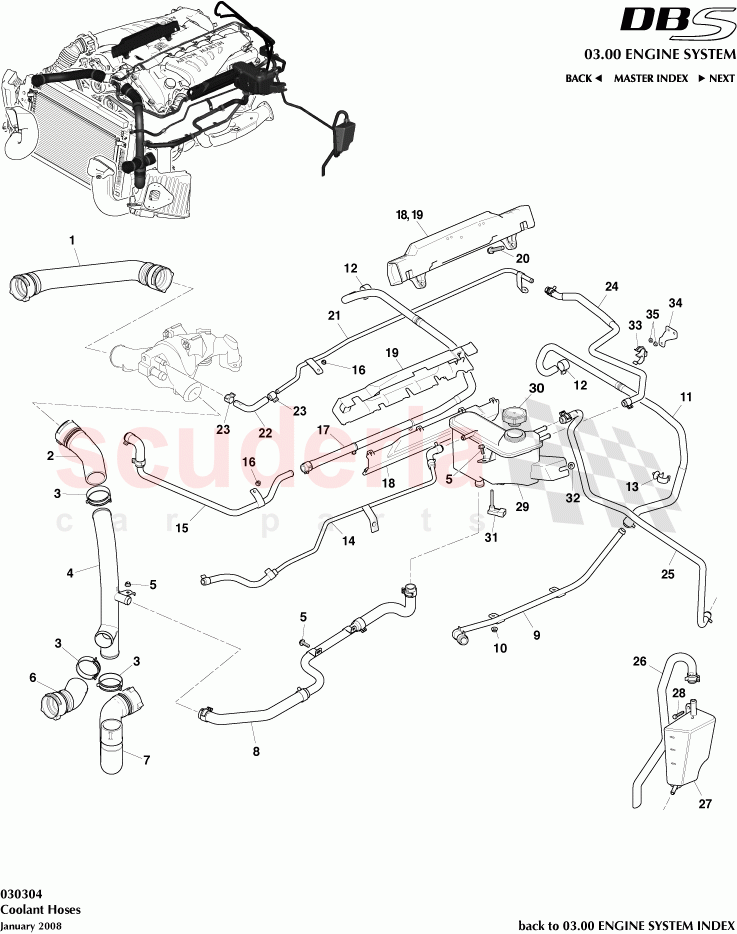

Aston Martin DBS V12 - Coolant Hoses

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D338333AA	HOSE RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D338555EA	HOSE ASSY - BYPASS TUBE TO THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702903	Heavy Duty Spring Band Clamp 55 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D338555FB	TUBE - WATER BYP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D338555DA	HOSE ASSY- BYPASS TUBE TO RADIATOR MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D338555BA	HOSE ASSY - BYPASS TUBE TO WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438C350CA	Hose, Make Up Tube to Bypass Tube	Enquire	To Order
	4G438C350EA	HOSE MAKE UP TUBE TO RESERVOIR	Enquire	To Order
	4G438C350FA	MAKE UP TUBE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318674EC	TUBE ASSY HTR OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701345	NUT M6 HEX FLG MTL 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318D359BC	HEATER OUTLET HOSE ASSY - RHD	Enquire	To Order
	4G4318D359AC	HEATER OUTLET HOSE ASSY - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701335	Clip, Hose Spring, 20 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701570	Clip, Swivel 20-24.5mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438C363CB	TUBE RADIATOR DEGAS ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438584DB	TUB HTR INLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318D334BC	HEATER INLET HOSE ASSY - RHD	Enquire	To Order
	4G4318D334AC	HEATER INLET HOSE ASSY - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434867BC	Bottom Cover, Engine Harness	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434867BA	Cover assy, bottom	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703731	Bolt, M8 x 35, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438003EB	Pipe, Cross Over Bleed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438003CA	Hose, Thermo Housing, Cross Over Bleed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702904	Spring Clamp, Hose, 17 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438063AE	Hose, Engine to Supply Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438B081AG	HOSE - RADIATOR SUPPLY TANK OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438N029AG	Hose Assy, Overflow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33TBD2BA	Reservoir, Coolant Expansion	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701667	Bolt and Washer, M6 x 25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319B518BD	RADIATOR EXPANSION TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438101BB	PRESSURE CAP 150KPA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710166	Switch, Coolant Level	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4358AA	HOSE CLIP SPACER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432A155AD	Bracket, Hose Clip, Heater Outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8D338333AA	HOSE RADIATOR	8D338333AA HOSE RADIATOR	-	1	Enquire
2	8D338555EA	HOSE ASSY - BYPASS TUBE TO THERMOSTAT	8D338555EA HOSE ASSY - BYPASS TUBE TO THERMOSTAT	-	1	Enquire
3	702903	Heavy Duty Spring Band Clamp 55 x 15	702903 Heavy Duty Spring Band Clamp 55 x 15	-	2	Enquire
4	8D338555FB	TUBE - WATER BYP	8D338555FB TUBE - WATER BYP	-	1	Enquire
5	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	-	4	Enquire
6	8D338555DA	HOSE ASSY- BYPASS TUBE TO RADIATOR MODULE	8D338555DA HOSE ASSY- BYPASS TUBE TO RADIATOR MODULE	-	1	Enquire
7	8D338555BA	HOSE ASSY - BYPASS TUBE TO WATER PUMP	8D338555BA HOSE ASSY - BYPASS TUBE TO WATER PUMP	-	1	Enquire
8	4G438C350CA	Hose, Make Up Tube to Bypass Tube	4G438C350CA Hose, Make Up Tube to Bypass Tube	-	1	Enquire
8	4G438C350EA	HOSE MAKE UP TUBE TO RESERVOIR	4G438C350EA HOSE MAKE UP TUBE TO RESERVOIR	-	1	Enquire
8	4G438C350FA	MAKE UP TUBE ASSY	4G438C350FA MAKE UP TUBE ASSY	-	1	Enquire
9	4G4318674EC	TUBE ASSY HTR OUTLET	4G4318674EC TUBE ASSY HTR OUTLET	-	1	Enquire
10	701345	NUT M6 HEX FLG MTL 8	701345 NUT M6 HEX FLG MTL 8	-	2	Enquire
11	4G4318D359BC	HEATER OUTLET HOSE ASSY - RHD	4G4318D359BC HEATER OUTLET HOSE ASSY - RHD RHD	-	1	Enquire
11	4G4318D359AC	HEATER OUTLET HOSE ASSY - LHD	4G4318D359AC HEATER OUTLET HOSE ASSY - LHD LHD	-	1	Enquire
12	701335	Clip, Hose Spring, 20 x 15	701335 Clip, Hose Spring, 20 x 15	-	2	Enquire
13	701570	Clip, Swivel 20-24.5mm	701570 Clip, Swivel 20-24.5mm	-	1	Enquire
14	4G438C363CB	TUBE RADIATOR DEGAS ASSY	4G438C363CB TUBE RADIATOR DEGAS ASSY	-	1	Enquire
15	4G438584DB	TUB HTR INLT	4G438584DB TUB HTR INLT	-	1	Enquire
16	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	4	Enquire
17	4G4318D334BC	HEATER INLET HOSE ASSY - RHD	4G4318D334BC HEATER INLET HOSE ASSY - RHD RHD	-	1	Enquire
17	4G4318D334AC	HEATER INLET HOSE ASSY - LHD	4G4318D334AC HEATER INLET HOSE ASSY - LHD LHD	-	1	Enquire
18	4G434867BC	Bottom Cover, Engine Harness	4G434867BC Bottom Cover, Engine Harness	-	2	Enquire
19	4G434867BA	Cover assy, bottom	4G434867BA Cover assy, bottom	-	2	Enquire
20	703731	Bolt, M8 x 35, Hex Flange Head	703731 Bolt, M8 x 35, Hex Flange Head	-	4	Enquire
21	4G438003EB	Pipe, Cross Over Bleed	4G438003EB Pipe, Cross Over Bleed	-	1	Enquire
22	4G438003CA	Hose, Thermo Housing, Cross Over Bleed	4G438003CA Hose, Thermo Housing, Cross Over Bleed	-	1	Enquire
23	702904	Spring Clamp, Hose, 17 x 15	702904 Spring Clamp, Hose, 17 x 15	-	2	Enquire
24	4G438063AE	Hose, Engine to Supply Tank	4G438063AE Hose, Engine to Supply Tank	-	1	Enquire
25	4G438B081AG	HOSE - RADIATOR SUPPLY TANK OVERFLOW	4G438B081AG HOSE - RADIATOR SUPPLY TANK OVERFLOW	-	1	Enquire
26	4G438N029AG	Hose Assy, Overflow	4G438N029AG Hose Assy, Overflow	-	1	Enquire
27	6G33TBD2BA	Reservoir, Coolant Expansion	6G33TBD2BA Reservoir, Coolant Expansion	-	1	Enquire
28	701667	Bolt and Washer, M6 x 25	701667 Bolt and Washer, M6 x 25	-	2	Enquire
29	4G4319B518BD	RADIATOR EXPANSION TANK	4G4319B518BD RADIATOR EXPANSION TANK	-	1	Enquire
30	4G438101BB	PRESSURE CAP 150KPA	4G438101BB PRESSURE CAP 150KPA	-	1	Enquire
31	1R123710166	Switch, Coolant Level	1R123710166 Switch, Coolant Level	-	1	Enquire
32	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB	-	1	Enquire
33	4G4358AA	HOSE CLIP SPACER PLATE	4G4358AA HOSE CLIP SPACER PLATE	-	1	Enquire
34	4G432A155AD	Bracket, Hose Clip, Heater Outlet	4G432A155AD Bracket, Hose Clip, Heater Outlet	-	1	Enquire
35	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	2	Enquire
