Transaxle, MANUAL of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - Transaxle, MANUAL

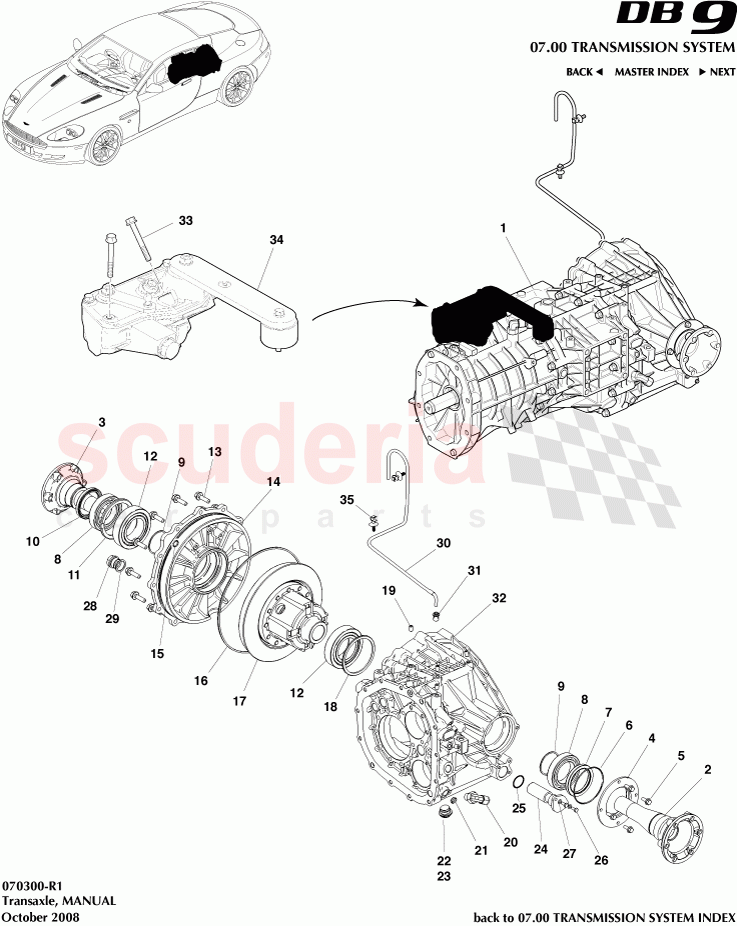

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	91789	TRAN AX ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710600	OUTPUT SHAFT - LEFT SIDE DIF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710601	OUTPUT SHAFT - RIGHT SIDE DIF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710602	BEARING - DIF OUTPUT SHAFT LEFT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702812	Bolt, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710482	O Ring, 2.62 x 75.87	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710483	Seal, Differential Output Shaft, Left, 55 x 72 x 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710603	Bearing, Differential Output Shaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702813	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710604	Seal, Differential Output Shaft RH, 55 x 70 x 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702814	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710605	Bearing, Differential Output	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702815	BOLT M8 x 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710606	COVER - DIFFERENTIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710502	O Ring, 2.69 x 9.92	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710607	SEAL - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710608	Crown wheel, Differential	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702816	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702817	Set Screw, M8 x 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710609	Pipe, trans cooling, 90°	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702818	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710244	DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710245PK	Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710490	Filter, Oil	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710491PK	O RING 2.62 x 20.63 (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710492	Screw, M5 x 12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702821	Washer, 5.3 x 0.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710493	PLUG - OIL LEVEL M22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710245PK	Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437A245CA	TUBE ASSY - MAN TRANSMISSION BREATHE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710488	Adaptor, Breather	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710611	HOUSING-DIFFERENTIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702822	BOLT M6 x 50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337N372AB	BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319G506BA	Grease, Input Shaft Spline	Enquire	To Order
	6G337H436AA	Pinion and bevel gear set	Enquire	To Order
	6G3375106AA/S	OIL-MAN TRANS 1 ltr	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	91789	TRAN AX ASSY	91789 TRAN AX ASSY	-	1	Enquire
2	4G432710600	OUTPUT SHAFT - LEFT SIDE DIF	4G432710600 OUTPUT SHAFT - LEFT SIDE DIF	-	1	Enquire
3	4G432710601	OUTPUT SHAFT - RIGHT SIDE DIF	4G432710601 OUTPUT SHAFT - RIGHT SIDE DIF	-	1	Enquire
4	4G432710602	BEARING - DIF OUTPUT SHAFT LEFT HAND	4G432710602 BEARING - DIF OUTPUT SHAFT LEFT HAND	-	1	Enquire
5	702812	Bolt, M6 x 16, Hex Flange Head	702812 Bolt, M6 x 16, Hex Flange Head	-	4	Enquire
6	4G432710482	O Ring, 2.62 x 75.87	4G432710482 O Ring, 2.62 x 75.87	-	1	Enquire
7	4G432710483	Seal, Differential Output Shaft, Left, 55 x 72 x 8	4G432710483 Seal, Differential Output Shaft, Left, 55 x 72 x 8	-	1	Enquire
8	4G432710603	Bearing, Differential Output Shaft	4G432710603 Bearing, Differential Output Shaft	-	2	Enquire
9	702813	SHIM	702813 SHIM	-	1	Enquire
10	4G432710604	Seal, Differential Output Shaft RH, 55 x 70 x 8	4G432710604 Seal, Differential Output Shaft RH, 55 x 70 x 8	-	1	Enquire
11	702814	SHIM	702814 SHIM	-	1	Enquire
12	4G432710605	Bearing, Differential Output	4G432710605 Bearing, Differential Output	-	2	Enquire
13	702815	BOLT M8 x 30	702815 BOLT M8 x 30	-	12	Enquire
14	4G432710606	COVER - DIFFERENTIAL	4G432710606 COVER - DIFFERENTIAL	-	1	Enquire
15	4G432710502	O Ring, 2.69 x 9.92	4G432710502 O Ring, 2.69 x 9.92	-	1	Enquire
16	4G432710607	SEAL - COVER	4G432710607 SEAL - COVER	-	1	Enquire
17	4G432710608	Crown wheel, Differential	4G432710608 Crown wheel, Differential	-	1	Enquire
18	702816	SHIM	702816 SHIM	-	1	Enquire
19	702817	Set Screw, M8 x 10	702817 Set Screw, M8 x 10	-	6	Enquire
20	4G432710609	Pipe, trans cooling, 90°	4G432710609 Pipe, trans cooling, 90°	-	1	Enquire
21	702818	PLUG	702818 PLUG	-	1	Enquire
22	4G432710244	DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	4G432710244 DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	-	1	Enquire
23	4G432710245PK	Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	4G432710245PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	-	1	Enquire
24	4G432710490	Filter, Oil	4G432710490 Filter, Oil	-	1	Enquire
25	4G432710491PK	O RING 2.62 x 20.63 (PACK OF 10)	4G432710491PK O RING 2.62 x 20.63 (PACK OF 10)	-	1	Enquire
26	4G432710492	Screw, M5 x 12	4G432710492 Screw, M5 x 12	-	2	Enquire
27	702821	Washer, 5.3 x 0.5	702821 Washer, 5.3 x 0.5	-	2	Enquire
28	4G432710493	PLUG - OIL LEVEL M22	4G432710493 PLUG - OIL LEVEL M22	-	1	Enquire
29	4G432710245PK	Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	4G432710245PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	-	1	Enquire
30	4G437A245CA	TUBE ASSY - MAN TRANSMISSION BREATHE	4G437A245CA TUBE ASSY - MAN TRANSMISSION BREATHE	-	1	Enquire
31	4G432710488	Adaptor, Breather	4G432710488 Adaptor, Breather	-	1	Enquire
32	4G432710611	HOUSING-DIFFERENTIAL	4G432710611 HOUSING-DIFFERENTIAL	-	1	Enquire
33	702822	BOLT M6 x 50	702822 BOLT M6 x 50	-	2	Enquire
34	6G337N372AB	BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT	6G337N372AB BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT	-	1	Enquire
35	4G4319G506BA	Grease, Input Shaft Spline	4G4319G506BA Grease, Input Shaft Spline	-	1	Enquire
35	6G337H436AA	Pinion and bevel gear set	6G337H436AA Pinion and bevel gear set	-	1	Enquire
35	6G3375106AA/S	OIL-MAN TRANS 1 ltr	6G3375106AA/S OIL-MAN TRANS 1 ltr	-	1	Enquire
35	701575	Clip, Trans Breather Pipe	701575 Clip, Trans Breather Pipe	-	1	Enquire
