Clutch System (LHD) of Aston Martin Aston Martin DB9 (2004-2012)

View All

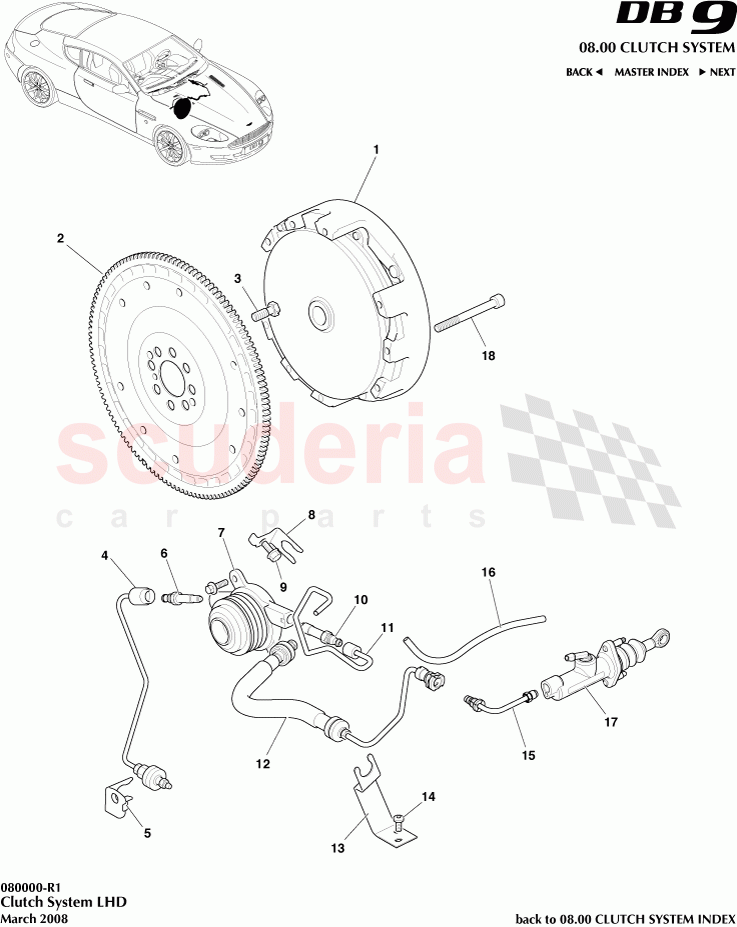

Aston Martin DB9 (2004-2012) - Clutch System (LHD)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D337540AB	CLUTCH - TWIN PLATE	Enquire	To Order
	4G431111200	Clutch Kit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G436375BA	FLYWHEEL ASSEMBLY SINGLE MASS	Enquire	To Order
	4G436375AC	FLYWHEEL - SINGLE MASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697748	Plug-Oil Pan Drain	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437H552AB	HOSE ASSY - CLUTCH BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437K640BB	STUTZEN BLEED TO CSC M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	Enquire	To Order
	4G437A564AB	Clutch Slave Cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437T503AA	HOSE SUPPORT BRACKET LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437K640AB	STUTZEN FEED TO CSC M12x1.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437608BB	HOSE ASSY - CLUTCH MASTER CYLINDER TUBE LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43R7N630AC	BRACKET CLUTCH LINE LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701158	SCREW M6x10 BUTTON HD TORX BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437608DB	TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4341360BA	Pipe, Clutch Low Pressure, Reservoir to Master Cyl	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437578AA	Kit, Clutch Master Cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33CD60BA	BOLT CLUTCH TO FLYWHEEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	1186031	CLUTCH &FLYWHEEL ASY	1186031 CLUTCH &FLYWHEEL ASY	-	1	Enquire
1	8D337540AB	CLUTCH - TWIN PLATE	8D337540AB CLUTCH - TWIN PLATE 09MY	-	1	Enquire
1	4G431111200	Clutch Kit	4G431111200 Clutch Kit	-	1	Enquire
2	9G436375BA	FLYWHEEL ASSEMBLY SINGLE MASS	9G436375BA FLYWHEEL ASSEMBLY SINGLE MASS 09MY	-	1	Enquire
2	4G436375AC	FLYWHEEL - SINGLE MASS	4G436375AC FLYWHEEL - SINGLE MASS	-	1	Enquire
3	697748	Plug-Oil Pan Drain	697748 Plug-Oil Pan Drain	-	8	Enquire
4	4G437H552AB	HOSE ASSY - CLUTCH BLEED	4G437H552AB HOSE ASSY - CLUTCH BLEED	-	1	Enquire
6	4G437K640BB	STUTZEN BLEED TO CSC M8	4G437K640BB STUTZEN BLEED TO CSC M8	-	1	Enquire
7	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	-	1	Enquire
7	4G437A564AB	Clutch Slave Cylinder	4G437A564AB Clutch Slave Cylinder	-	1	Enquire
8	4G437T503AA	HOSE SUPPORT BRACKET LHD	4G437T503AA HOSE SUPPORT BRACKET LHD	-	1	Enquire
9	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head 08MY From (V) A09110	-	1	Enquire
9	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head 07MY	-	1	Enquire
10	4G437K640AB	STUTZEN FEED TO CSC M12x1.0	4G437K640AB STUTZEN FEED TO CSC M12x1.0	-	1	Enquire
12	4G437608BB	HOSE ASSY - CLUTCH MASTER CYLINDER TUBE LHD	4G437608BB HOSE ASSY - CLUTCH MASTER CYLINDER TUBE LHD Includes item 11	-	1	Enquire
13	4G43R7N630AC	BRACKET CLUTCH LINE LHD	4G43R7N630AC BRACKET CLUTCH LINE LHD	-	1	Enquire
14	701158	SCREW M6x10 BUTTON HD TORX BLACK	701158 SCREW M6x10 BUTTON HD TORX BLACK	-	1	Enquire
15	4G437608DB	TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER LHD	4G437608DB TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER LHD	-	1	Enquire
16	4G4341360BA	Pipe, Clutch Low Pressure, Reservoir to Master Cyl	4G4341360BA Pipe, Clutch Low Pressure, Reservoir to Master Cyl	-	1	Enquire
17	4G437578AA	Kit, Clutch Master Cylinder	4G437578AA Kit, Clutch Master Cylinder	-	1	Enquire
18	8D33CD60BA	BOLT CLUTCH TO FLYWHEEL	8D33CD60BA BOLT CLUTCH TO FLYWHEEL	-	6	Enquire
