Automatic Transaxle 1 of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - Automatic Transaxle 1

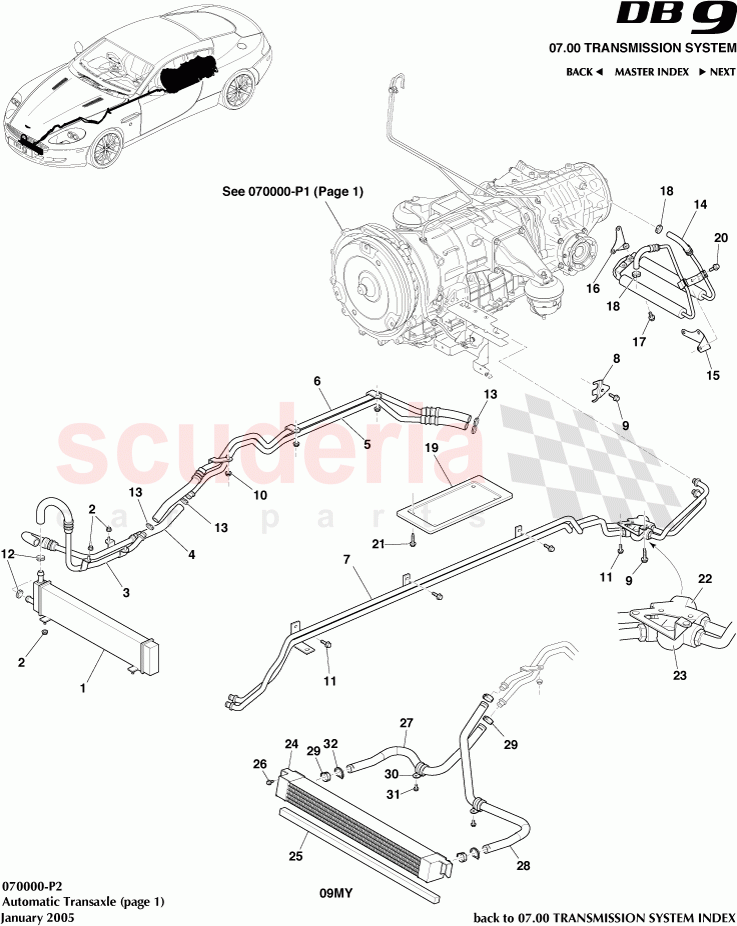

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7G43445396AA	OIL COOLER - AUTO TRANS	$881.58	To Order
	4G433110938	AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542	$1,218.30	To Order

Photo	Part No	Description	Price (each)	Stock
	7G437F120BA	PIPE AIR/OIL COOLER INLET	$386.32	To Order
	7G437F120BA	PIPE AIR/OIL COOLER INLET	$386.32	To Order

Photo	Part No	Description	Price (each)	Stock
	7G437F120BA	PIPE AIR/OIL COOLER INLET	$386.32	To Order
	4G433110938	AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542	$1,218.30	To Order

Photo	Part No	Description	Price (each)	Stock
	9G437W093BA	PIPE ASSEMBLY ENGINE BAY OUTLET	$233.27	To Order
	4G433110938	AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542	$1,218.30	To Order

Photo	Part No	Description	Price (each)	Stock
	7G437W093AA	PIPE ENGINE BAY	$389.20	To Order
	4G433110938	AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542	$1,218.30	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43321363AC	OIL PIPE ASSEMBLY TRANS	$1,268.27	To Order
	9G43321363AA	OIL PIPE ASSEMBLY REAR TRANSMISSION	$1,005.62	To Order

Photo	Part No	Description	Price (each)	Stock
	2W937B147AC	Clamp plate, Oil cooler pipes	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703189	BOLT M8x16 HEX FLG CHROME FREE	$0.37	To Order
	703189	BOLT M8x16 HEX FLG CHROME FREE	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	$1.05	To Order
	702944	Nut, M6, Hex Flanged Head	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	$0.21	To Order
	700606	Screw, M6 x 12, Hex Flange Head	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	699765PK	HOSE CLAMP (5)	$15.56	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437869AA	COOL AND BRACKET ASSY - TRANS OIL	$1,090.22	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437B142AA	BRACKET TRANS OIL COOLER MTG	$31.20	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437B142BA	BRACKET TRANS OIL COOLER MTG	$31.20	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	$0.36	To Order
	703265	Screw, M6 x 16, Hex Flange Head	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	699547	Clamp, Hose	$3.14	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437C309CB	PLT ASY - TRANS GR SH OPG CVR	$67.70	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	$0.36	To Order
	703265	Screw, M6 x 16, Hex Flange Head	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436A626AA	Bracket, Oil pipe	$114.30	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436L635AA	Thermostat, Transmission Oil Control	$1,132.29	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43445396CA	MATRIX OIL COOLER	$1,271.89	To Order

Photo	Part No	Description	Price (each)	Stock
	3285306	Seal, Radiator Upper	$17.69	To Order

Photo	Part No	Description	Price (each)	Stock
	9G437F120AA	HOSE - AIR/OIL ASSY COOLER OUTLET	$154.27	To Order

Photo	Part No	Description	Price (each)	Stock
	9G437F120BA	HOSE - AIR/OIL ASSY COOLER INLET	$217.64	To Order

Photo	Part No	Description	Price (each)	Stock
	9G438777CA	CLAMP HOSE OETIKER 025.5-1008R	$6.85	To Order

Photo	Part No	Description	Price (each)	Stock
	9G437F120AA	HOSE - AIR/OIL ASSY COOLER OUTLET	$154.27	To Order

Photo	Part No	Description	Price (each)	Stock
	9G437R041AA	SEAL HOSE TRANS OIL COOLER	$20.22	To Order

View All

Automatic Transaxle 1 of Aston Martin Aston Martin DB9 (2004-2012)

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	-	4G433110938	AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542	4G433110938 AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542 Contains items marked KT	$1,218.30	1
	-	4G433111060	OIL PIPE KIT-WITHOUT OIL COOLER (USE FROM VIN 05543 to 09783)	4G433111060 OIL PIPE KIT-WITHOUT OIL COOLER (USE FROM VIN 05543 to 09783) From (V)05543 to 09783	$636.99	1
	1	7G43445396AA	OIL COOLER - AUTO TRANS	7G43445396AA OIL COOLER - AUTO TRANS From (V) A09784 KT	$881.58	1
	1	4G433110938	AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542	4G433110938 AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542 Up to (V) A09783	$1,218.30	1
	3	7G437F120BA	PIPE AIR/OIL COOLER INLET	7G437F120BA PIPE AIR/OIL COOLER INLET From (V) A09784 KT	$386.32	1
	3	7G437F120BA	PIPE AIR/OIL COOLER INLET	7G437F120BA PIPE AIR/OIL COOLER INLET Up to (V) A09783	$386.32	1
	4	7G437F120BA	PIPE AIR/OIL COOLER INLET	7G437F120BA PIPE AIR/OIL COOLER INLET From (V) A09784 KT	$386.32	1
	4	4G433110938	AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542	4G433110938 AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542 Up to (V) A09783	$1,218.30	1
	5	9G437W093BA	PIPE ASSEMBLY ENGINE BAY OUTLET	9G437W093BA PIPE ASSEMBLY ENGINE BAY OUTLET From (V) A09784 KT	$233.27	1
	5	4G433110938	AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542	4G433110938 AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542 Up to (V) A09783	$1,218.30	1
	6	7G437W093AA	PIPE ENGINE BAY	7G437W093AA PIPE ENGINE BAY From (V) A09784 KT	$389.20	1
	6	4G433110938	AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542	4G433110938 AUTOMATIC TRANSAXEL OIL COOLER KIT UP TO VIN 05542 Up to (V) A09783	$1,218.30	1
	7	4G43321363AC	OIL PIPE ASSEMBLY TRANS	4G43321363AC OIL PIPE ASSEMBLY TRANS Up to (V) A09783	$1,268.27	1
	7	9G43321363AA	OIL PIPE ASSEMBLY REAR TRANSMISSION	9G43321363AA OIL PIPE ASSEMBLY REAR TRANSMISSION From (V) A09784	$1,005.62	1
	8	2W937B147AC	Clamp plate, Oil cooler pipes	2W937B147AC Clamp plate, Oil cooler pipes	-	1		Enquire
	9	703189	BOLT M8x16 HEX FLG CHROME FREE	703189 BOLT M8x16 HEX FLG CHROME FREE 08MY From (V) A09110	$0.37	2
	9	703189	BOLT M8x16 HEX FLG CHROME FREE	703189 BOLT M8x16 HEX FLG CHROME FREE 07MY	$0.37	2
	10	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head 08MY From (V) A09110	$1.05	3
	10	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head 07MY	$1.05	3
	11	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head 08MY From (V) A09110	$0.21	4
	11	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head 07MY	$0.21	4
	12	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	699545 HOSE CLAMP OETIKER REF: 025.6 - 706R	$3.23	2
	13	699765PK	HOSE CLAMP (5)	699765PK HOSE CLAMP (5) KT	$15.56	4
	14	4G437869AA	COOL AND BRACKET ASSY - TRANS OIL	4G437869AA COOL AND BRACKET ASSY - TRANS OIL	$1,090.22	1
	15	4G437B142AA	BRACKET TRANS OIL COOLER MTG	4G437B142AA BRACKET TRANS OIL COOLER MTG	$31.20	1
	16	4G437B142BA	BRACKET TRANS OIL COOLER MTG	4G437B142BA BRACKET TRANS OIL COOLER MTG	$31.20	1
	17	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head 08MY From (V) A09110	$0.36	2
	17	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head 07MY	$0.36	2
	18	699547	Clamp, Hose	699547 Clamp, Hose	$3.14	2
	19	4G437C309CB	PLT ASY - TRANS GR SH OPG CVR	4G437C309CB PLT ASY - TRANS GR SH OPG CVR	$67.70	1
	20	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head 08MY From (V) A09110	$0.36	2
	20	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head 07MY	$0.36	2
	22	4G436A626AA	Bracket, Oil pipe	4G436A626AA Bracket, Oil pipe	$114.30	1
	23	4G436L635AA	Thermostat, Transmission Oil Control	4G436L635AA Thermostat, Transmission Oil Control	$1,132.29	1
	24	9G43445396CA	MATRIX OIL COOLER	9G43445396CA MATRIX OIL COOLER 09MY	$1,271.89	1
	25	3285306	Seal, Radiator Upper	3285306 Seal, Radiator Upper 09MY	$17.69	1
	27	9G437F120AA	HOSE - AIR/OIL ASSY COOLER OUTLET	9G437F120AA HOSE - AIR/OIL ASSY COOLER OUTLET 09MY	$154.27	1
	28	9G437F120BA	HOSE - AIR/OIL ASSY COOLER INLET	9G437F120BA HOSE - AIR/OIL ASSY COOLER INLET 09MY	$217.64	1
	29	9G438777CA	CLAMP HOSE OETIKER 025.5-1008R	9G438777CA CLAMP HOSE OETIKER 025.5-1008R 09MY	$6.85	2
	30	9G437F120AA	HOSE - AIR/OIL ASSY COOLER OUTLET	9G437F120AA HOSE - AIR/OIL ASSY COOLER OUTLET 09MY	$154.27	2
	32	9G437R041AA	SEAL HOSE TRANS OIL COOLER	9G437R041AA SEAL HOSE TRANS OIL COOLER 09MY	$20.22	2
