Automatic Transaxle of Aston Martin Aston Martin DB9 (2004-2012)

View All

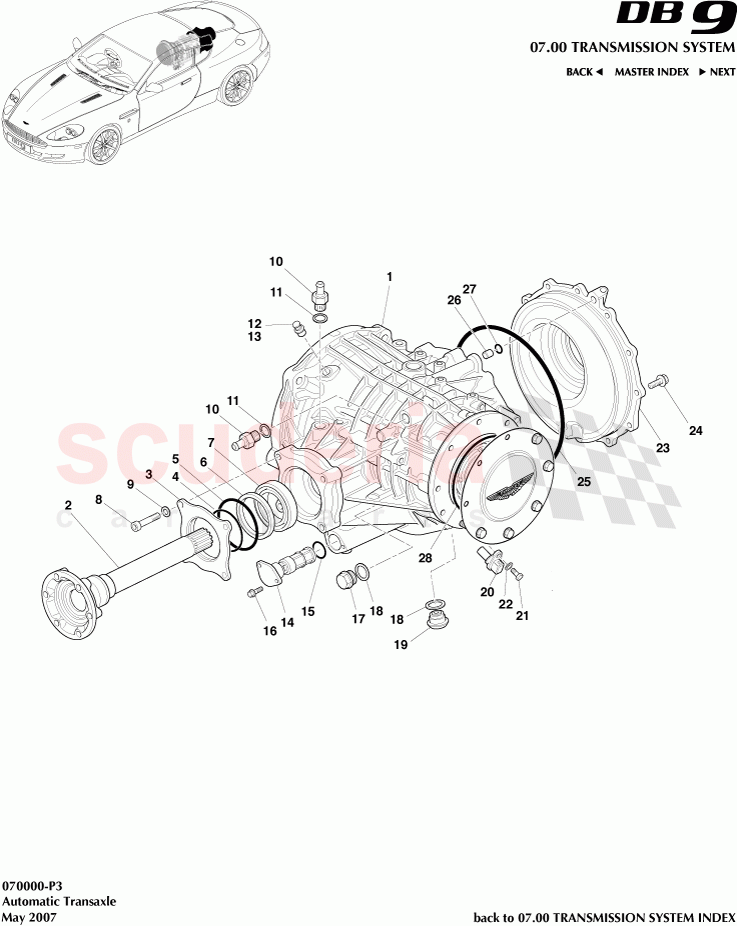

Aston Martin DB9 (2004-2012) - Automatic Transaxle

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	91828	DIFFERENTIAL-AUTO	Enquire	To Order
	91827	DIFFERENTIAL-AUTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710480	OUTPUT SHAFT - LEFT SIDE DIFF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710481	Cover, Output Shaft, Differential	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710482	O Ring, 2.62 x 75.87	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432711055	O Ring, 2.62 x 94.92	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710483	Seal, Differential Output Shaft, Left, 55 x 72 x 8	Enquire	To Order
	4G432710604	Seal, Differential Output Shaft RH, 55 x 70 x 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD332710007	Ball bearing, 50 x 80 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710485	Screw, M8 x 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710486	WASHER - ELASTIC CURVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710494	Union, Oil Cooler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710487	Gasket, Flat, 16 x 22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710488	Adaptor, Breather	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710489	PLUG - BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710490	Filter, Oil	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710491PK	O RING 2.62 x 20.63 (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710492	Screw, M5 x 12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710493	PLUG - OIL LEVEL M22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710245PK	Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710244	DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710495	SPEED SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710496	SCREW M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710497	WASHER - ELASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710498	COVER - DIFFERENTIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710499	Screw, M8 x 25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710500	O Ring, 3.53 x 228.19	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710501	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710502	O Ring, 2.69 x 9.92	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704349PK	TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12	Enquire	To Order
	4G432711158	O Ring, Rear Cover, 3.53 x 123.42	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	91828	DIFFERENTIAL-AUTO	91828 DIFFERENTIAL-AUTO 11MY	-	1	Enquire
1	91827	DIFFERENTIAL-AUTO	91827 DIFFERENTIAL-AUTO	-	1	Enquire
2	4G432710480	OUTPUT SHAFT - LEFT SIDE DIFF	4G432710480 OUTPUT SHAFT - LEFT SIDE DIFF	-	2	Enquire
3	4G432710481	Cover, Output Shaft, Differential	4G432710481 Cover, Output Shaft, Differential	-	1	Enquire
4	4G432710482	O Ring, 2.62 x 75.87	4G432710482 O Ring, 2.62 x 75.87	-	1	Enquire
5	4G432711055	O Ring, 2.62 x 94.92	4G432711055 O Ring, 2.62 x 94.92	-	1	Enquire
6	4G432710483	Seal, Differential Output Shaft, Left, 55 x 72 x 8	4G432710483 Seal, Differential Output Shaft, Left, 55 x 72 x 8	-	1	Enquire
6	4G432710604	Seal, Differential Output Shaft RH, 55 x 70 x 8	4G432710604 Seal, Differential Output Shaft RH, 55 x 70 x 8	-	1	Enquire
7	CD332710007	Ball bearing, 50 x 80 x 16	CD332710007 Ball bearing, 50 x 80 x 16	-	1	Enquire
8	4G432710485	Screw, M8 x 30	4G432710485 Screw, M8 x 30	-	4	Enquire
9	4G432710486	WASHER - ELASTIC CURVE	4G432710486 WASHER - ELASTIC CURVE	-	4	Enquire
10	4G432710494	Union, Oil Cooler	4G432710494 Union, Oil Cooler	-	2	Enquire
11	4G432710487	Gasket, Flat, 16 x 22	4G432710487 Gasket, Flat, 16 x 22	-	2	Enquire
12	4G432710488	Adaptor, Breather	4G432710488 Adaptor, Breather	-	1	Enquire
13	4G432710489	PLUG - BREATHER	4G432710489 PLUG - BREATHER	-	1	Enquire
14	4G432710490	Filter, Oil	4G432710490 Filter, Oil	-	1	Enquire
15	4G432710491PK	O RING 2.62 x 20.63 (PACK OF 10)	4G432710491PK O RING 2.62 x 20.63 (PACK OF 10)	-	1	Enquire
16	4G432710492	Screw, M5 x 12	4G432710492 Screw, M5 x 12	-	2	Enquire
17	4G432710493	PLUG - OIL LEVEL M22	4G432710493 PLUG - OIL LEVEL M22	-	1	Enquire
18	4G432710245PK	Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	4G432710245PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	-	2	Enquire
19	4G432710244	DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	4G432710244 DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	-	1	Enquire
20	4G432710495	SPEED SENSOR	4G432710495 SPEED SENSOR	-	1	Enquire
21	4G432710496	SCREW M6 x 16	4G432710496 SCREW M6 x 16	-	1	Enquire
22	4G432710497	WASHER - ELASTIC	4G432710497 WASHER - ELASTIC	-	1	Enquire
23	4G432710498	COVER - DIFFERENTIAL	4G432710498 COVER - DIFFERENTIAL	-	1	Enquire
24	4G432710499	Screw, M8 x 25	4G432710499 Screw, M8 x 25	-	12	Enquire
25	4G432710500	O Ring, 3.53 x 228.19	4G432710500 O Ring, 3.53 x 228.19	-	1	Enquire
26	4G432710501	DOWEL	4G432710501 DOWEL	-	1	Enquire
27	4G432710502	O Ring, 2.69 x 9.92	4G432710502 O Ring, 2.69 x 9.92	-	1	Enquire
28	704349PK	TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12	704349PK TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12 -Shell Spirax	-	-	Enquire
28	4G432711158	O Ring, Rear Cover, 3.53 x 123.42	4G432711158 O Ring, Rear Cover, 3.53 x 123.42	-	1	Enquire
