Driveshaft Assembly (Auto) of Aston Martin Aston Martin DB9 (2004-2012)

View All

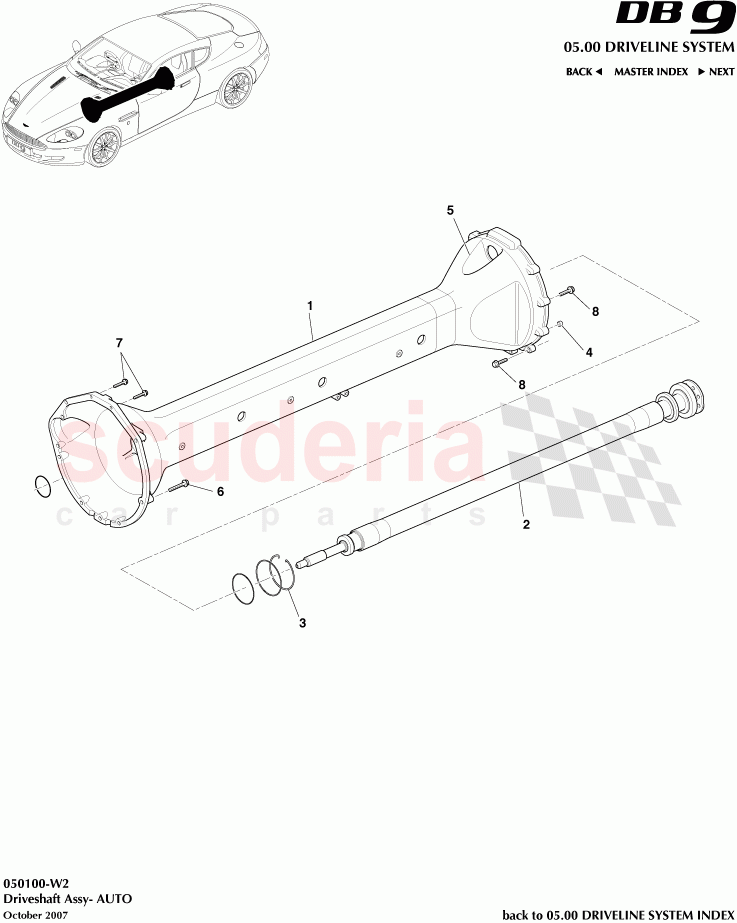

Aston Martin DB9 (2004-2012) - Driveshaft Assembly (Auto)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G434602BE	DRIVESHAFT ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436922AA	RETAINING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699134	Dowel, Hollow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434210021	PLUG-T/CONV ACCESS TORQUE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703191	BOLT-M10x1.5x65 FLG CHROME FREE	Enquire	To Order
	703191	BOLT-M10x1.5x65 FLG CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703195	SCREW M8x40 FLG 8 CHROME FREE	Enquire	To Order
	703195	SCREW M8x40 FLG 8 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703192	SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	Enquire	To Order
	703192	SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	Enquire	To Order
	704575	O RING 4G43-7B084-BA_PIA2	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D334500BA	TORQUE TUBE & PROPSH AFT ASY AUTO/TT	8D334500BA TORQUE TUBE & PROPSH AFT ASY AUTO/TT Up to (V) A07422	-	1	Enquire
-	8D334500BA	TORQUE TUBE & PROPSH AFT ASY AUTO/TT	8D334500BA TORQUE TUBE & PROPSH AFT ASY AUTO/TT From (V) A07423	-	1	Enquire
2	4G434602BE	DRIVESHAFT ASSEMBLY	4G434602BE DRIVESHAFT ASSEMBLY	-	1	Enquire
3	4G436922AA	RETAINING CLIP	4G436922AA RETAINING CLIP	-	1	Enquire
4	699134	Dowel, Hollow	699134 Dowel, Hollow	-	2	Enquire
5	4G434210021	PLUG-T/CONV ACCESS TORQUE TUBE	4G434210021 PLUG-T/CONV ACCESS TORQUE TUBE	-	2	Enquire
6	703191	BOLT-M10x1.5x65 FLG CHROME FREE	703191 BOLT-M10x1.5x65 FLG CHROME FREE 08MY From (V) A09110	-	7	Enquire
6	703191	BOLT-M10x1.5x65 FLG CHROME FREE	703191 BOLT-M10x1.5x65 FLG CHROME FREE 07MY	-	7	Enquire
7	703195	SCREW M8x40 FLG 8 CHROME FREE	703195 SCREW M8x40 FLG 8 CHROME FREE 08MY From (V) A09110	-	2	Enquire
7	703195	SCREW M8x40 FLG 8 CHROME FREE	703195 SCREW M8x40 FLG 8 CHROME FREE 07MY	-	2	Enquire
8	703192	SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	703192 SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE 08MY From (V) A09110	-	2	Enquire
8	703192	SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	703192 SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE 07MY	-	2	Enquire
8	704575	O RING 4G43-7B084-BA_PIA2	704575 O RING 4G43-7B084-BA_PIA2	-	1	Enquire
8	704574	O RING 4G43-7B084-BA_PIA1	704574 O RING 4G43-7B084-BA_PIA1	-	1	Enquire
8	HY538527AA	O-RING (PROP FR)	HY538527AA O-RING (PROP FR)	-	1	Enquire
