Clutch System (RHD) of Aston Martin Aston Martin DB9 (2004-2012)

View All

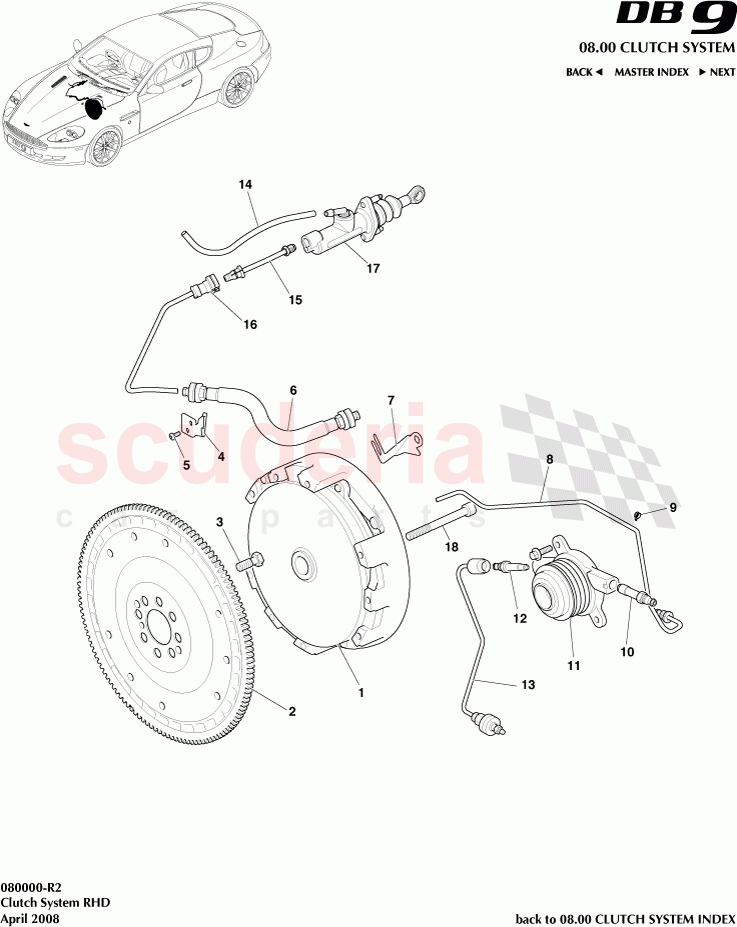

Aston Martin DB9 (2004-2012) - Clutch System (RHD)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D337540AB	CLUTCH - TWIN PLATE	Enquire	To Order
	4G431111200	Clutch Kit	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	9G436375BA	FLYWHEEL ASSEMBLY SINGLE MASS	Enquire	To Order
	4G436375AC	FLYWHEEL - SINGLE MASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697748	Plug-Oil Pan Drain	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43R7N630BB	BRACKET CLUTCH LINE RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701158	SCREW M6x10 BUTTON HD TORX BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437608AB	HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437T503BA	HOSE SUPPORT BRACKET RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	Enquire	IN STOCK
	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	Enquire	IN STOCK
	699632	'P' CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437K640AB	STUTZEN FEED TO CSC M12x1.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437A564AB	Clutch Slave Cylinder	Enquire	IN STOCK
	700126	SCREW M6x20 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437K640BB	STUTZEN BLEED TO CSC M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437H552AB	HOSE ASSY - CLUTCH BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4341360BA	Pipe, Clutch Low Pressure, Reservoir to Master Cyl	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437608CB	TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437578AA	Kit, Clutch Master Cylinder	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D33CD60BA	BOLT CLUTCH TO FLYWHEEL	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	1186031	CLUTCH &FLYWHEEL ASY	1186031 CLUTCH &FLYWHEEL ASY	-	1	Enquire
1	8D337540AB	CLUTCH - TWIN PLATE	8D337540AB CLUTCH - TWIN PLATE 09MY	-	1	Enquire
1	4G431111200	Clutch Kit IN STOCK	4G431111200 Clutch Kit IN STOCK	-	1	Enquire
2	9G436375BA	FLYWHEEL ASSEMBLY SINGLE MASS	9G436375BA FLYWHEEL ASSEMBLY SINGLE MASS 09MY	-	1	Enquire
2	4G436375AC	FLYWHEEL - SINGLE MASS	4G436375AC FLYWHEEL - SINGLE MASS	-	1	Enquire
3	697748	Plug-Oil Pan Drain IN STOCK	697748 Plug-Oil Pan Drain IN STOCK	-	8	Enquire
4	4G43R7N630BB	BRACKET CLUTCH LINE RHD	4G43R7N630BB BRACKET CLUTCH LINE RHD	-	1	Enquire
5	701158	SCREW M6x10 BUTTON HD TORX BLACK	701158 SCREW M6x10 BUTTON HD TORX BLACK	-	2	Enquire
6	4G437608AB	HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD	4G437608AB HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD Includes items 8 and 16	-	1	Enquire
7	4G437T503BA	HOSE SUPPORT BRACKET RHD	4G437T503BA HOSE SUPPORT BRACKET RHD	-	1	Enquire
9	703206	SCREW-M5 x 8 HEX FLG CHROME FREE IN STOCK	703206 SCREW-M5 x 8 HEX FLG CHROME FREE 08MY From (V) A09110 IN STOCK	-	1	Enquire
9	703206	SCREW-M5 x 8 HEX FLG CHROME FREE IN STOCK	703206 SCREW-M5 x 8 HEX FLG CHROME FREE 07MY IN STOCK	-	1	Enquire
9	699632	'P' CLIP	699632 'P' CLIP	-	1	Enquire
10	4G437K640AB	STUTZEN FEED TO CSC M12x1.0	4G437K640AB STUTZEN FEED TO CSC M12x1.0	-	1	Enquire
11	4G437A564AB	Clutch Slave Cylinder IN STOCK	4G437A564AB Clutch Slave Cylinder IN STOCK	-	1	Enquire
11	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	-	2	Enquire
12	4G437K640BB	STUTZEN BLEED TO CSC M8	4G437K640BB STUTZEN BLEED TO CSC M8	-	1	Enquire
13	4G437H552AB	HOSE ASSY - CLUTCH BLEED	4G437H552AB HOSE ASSY - CLUTCH BLEED	-	1	Enquire
14	4G4341360BA	Pipe, Clutch Low Pressure, Reservoir to Master Cyl	4G4341360BA Pipe, Clutch Low Pressure, Reservoir to Master Cyl	-	1	Enquire
15	4G437608CB	TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD	4G437608CB TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD	-	1	Enquire
17	4G437578AA	Kit, Clutch Master Cylinder IN STOCK	4G437578AA Kit, Clutch Master Cylinder IN STOCK	-	1	Enquire
18	8D33CD60BA	BOLT CLUTCH TO FLYWHEEL IN STOCK	8D33CD60BA BOLT CLUTCH TO FLYWHEEL IN STOCK	-	8	Enquire
