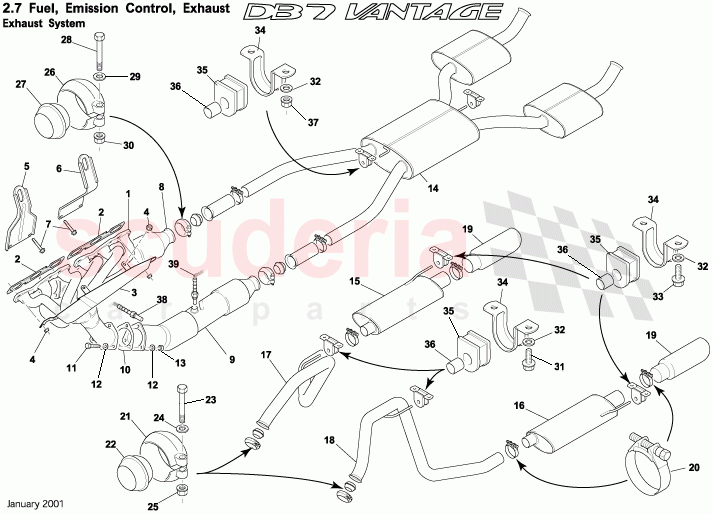

Aston Martin DB7 Vantage - Exhaust System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3585183	EXHAUST MANIFOLD LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510003	Gasket Exhaust Manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8685185	EXH HEATSHIELD LH	Enquire	To Order
	8685186	EXH HEATSHIELD RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697775PK	Nut M8 Hex Flange Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14121608AA	EYE ENGINE LIFTING FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14125648AA	Eye, engine lifting, rear, RH	Enquire	To Order
	14125649AA	Eye, engine lifting, rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697776	SCREW M8 x 25 FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	35121268AC	CATALYTIC CONVERTER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	35121269AC	CATALYTIC CONVERTER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

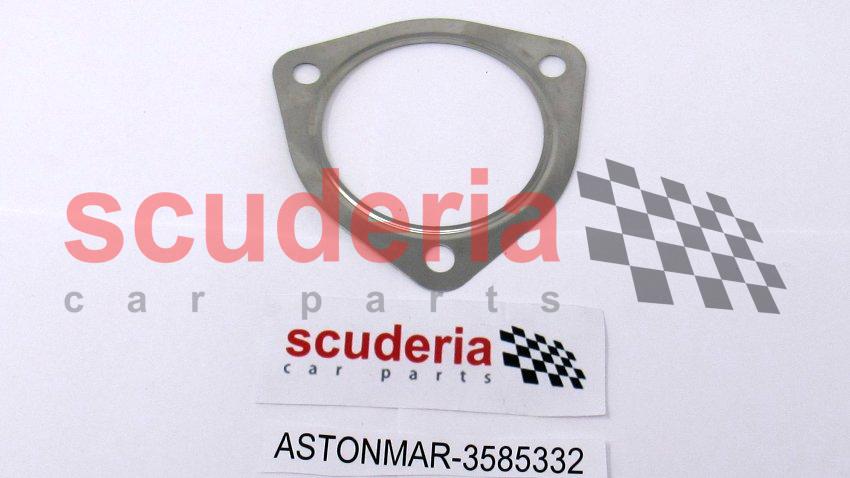

	3585332	Gasket Catalyst to Exhaust Manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699177	SCREW M8x30 HEX HD STAINLESS STL A4-80	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	694118	WASHER M8 PLAIN STAINLESS STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701884PK	NUT LOCKING (PACK OF 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3585557	SPTS EXH SYSTEM-ALL	Enquire	To Order
	35140419AA	CENTRE CRUCIFORM ASSEMBLY - DUAL MODE	Enquire	To Order
	35122054AC	SILENCER ASSY CENTRE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	35140040AA	REAR SILENCER ASSEMBLY RH	Enquire	To Order
	35120056AC	SILENCER ASSY REAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	35140041AA	REAR SILENCER ASSEMBLY LH	Enquire	To Order
	35120057AC	SILENCER ASSY REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	35121270AC	PIPE EXHAUST OVER AXLE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	35121271AC	PIPE EXHAUST OVER AXLE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	35120338AA	EXHAUST TAIL PIPE FINISHER ASSY	Enquire	To Order
	35140042AA	EXHAUST TAILPIPE FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698911	CLAMP ASSY SPHERICAL EXHAUST PIPE 50.8DIA	Enquire	To Order
	699326	BAND CLAMP 54-59 x 25 WIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698911	CLAMP ASSY SPHERICAL EXHAUST PIPE 50.8DIA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698907	Olive, spherical, 57.2dia	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698909	BOLT M8 x 55 HEX HD STAINLESS STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	694118	WASHER M8 PLAIN STAINLESS STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

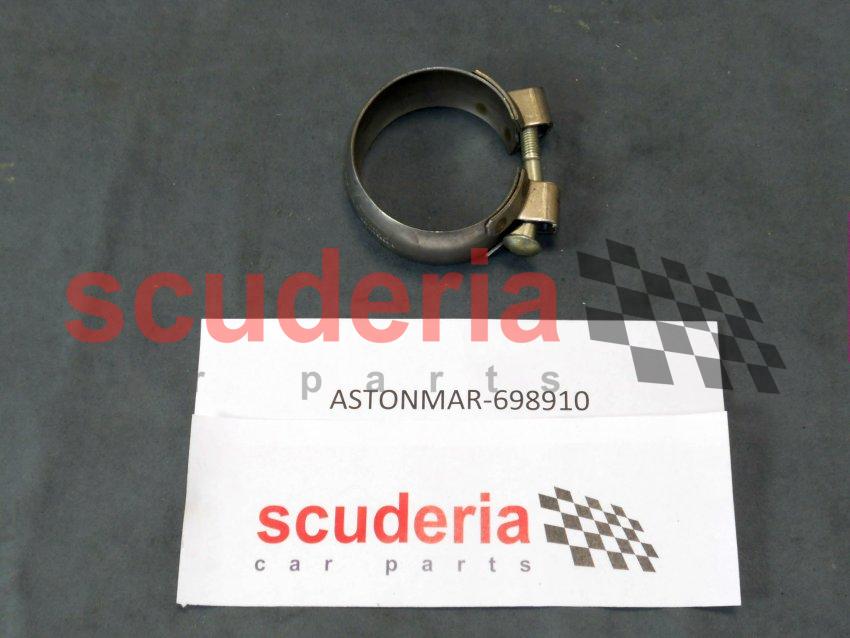

	698910	Clamp Assy Spherical Olive 60.4ID/2.3/8in	Enquire	To Order
	701884PK	NUT LOCKING (PACK OF 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698910	Clamp Assy Spherical Olive 60.4ID/2.3/8in	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698906	Olive, spherical, 63.5dia	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699178	BOLT M8 X 65 HEX HEAD STAINLESS STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	694118	WASHER M8 PLAIN STAINLESS STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	35120333AB	Fitting kit, exhaust	Enquire	To Order
	701884PK	NUT LOCKING (PACK OF 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	695567	SCREW M8 x20 HEX FLG GRD 8 8 ZINC PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692057	WASHER M8 x 16 x 1 MILD STEEL ZINC PLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703730	Screw, M8 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3580462	CRADLE-EXH MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3583229	MOUNTING RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3580461	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697444	NUT M8 FLG CLASS 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	35123997AB	Exhaust system complete, sports, federal, large bore	Enquire	To Order
	35123998AB	Exhaust system complete, sports, federal, small bore	Enquire	To Order
	35123909AB	Exhaust system complete, sports, federal	Enquire	To Order

...and 27 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	3585182	EXHAUST MANIFOLD RH	3585182 EXHAUST MANIFOLD RH	-	1	Enquire
1	3585183	EXHAUST MANIFOLD LH	3585183 EXHAUST MANIFOLD LH	-	1	Enquire
2	4G433510003	Gasket Exhaust Manifold	4G433510003 Gasket Exhaust Manifold	-	4	Enquire
3	8685185	EXH HEATSHIELD LH	8685185 EXH HEATSHIELD LH	-	1	Enquire
3	8685186	EXH HEATSHIELD RH	8685186 EXH HEATSHIELD RH	-	1	Enquire
4	697775PK	Nut M8 Hex Flange Head (Pack of 10)	697775PK Nut M8 Hex Flange Head (Pack of 10) Exhaust manifolds to cylinder heads	-	24	Enquire
5	14121608AA	EYE ENGINE LIFTING FRONT	14121608AA EYE ENGINE LIFTING FRONT	-	2	Enquire
6	14125648AA	Eye, engine lifting, rear, RH	14125648AA Eye, engine lifting, rear, RH	-	1	Enquire
6	14125649AA	Eye, engine lifting, rear, LH	14125649AA Eye, engine lifting, rear, LH	-	1	Enquire
7	697776	SCREW M8 x 25 FLG	697776 SCREW M8 x 25 FLG Lifting eyes attach	-	8	Enquire
8	35121268AC	CATALYTIC CONVERTER RH	35121268AC CATALYTIC CONVERTER RH	-	1	Enquire
9	35121269AC	CATALYTIC CONVERTER LH	35121269AC CATALYTIC CONVERTER LH	-	1	Enquire
10	3585332	Gasket Catalyst to Exhaust Manifold	3585332 Gasket Catalyst to Exhaust Manifold	-	2	Enquire
11	699177	SCREW M8x30 HEX HD STAINLESS STL A4-80	699177 SCREW M8x30 HEX HD STAINLESS STL A4-80 Catalysts to exhaust manifolds	-	6	Enquire
12	694118	WASHER M8 PLAIN STAINLESS STEEL	694118 WASHER M8 PLAIN STAINLESS STEEL Catalysts to exhaust manifolds	-	12	Enquire
13	701884PK	NUT LOCKING (PACK OF 5)	701884PK NUT LOCKING (PACK OF 5) Catalysts to exhaust manifolds	-	6	Enquire
14	3585557	SPTS EXH SYSTEM-ALL	3585557 SPTS EXH SYSTEM-ALL GT/DBAR1	-	1	Enquire
14	35140419AA	CENTRE CRUCIFORM ASSEMBLY - DUAL MODE	35140419AA CENTRE CRUCIFORM ASSEMBLY - DUAL MODE Zagato	-	1	Enquire
14	35122054AC	SILENCER ASSY CENTRE	35122054AC SILENCER ASSY CENTRE	-	1	Enquire
14	696696	EXHAUST CLAMP 67mm ALL FRONT OF C/FORM	696696 EXHAUST CLAMP 67mm ALL FRONT OF C/FORM	-	2	Enquire
15	35140040AA	REAR SILENCER ASSEMBLY RH	35140040AA REAR SILENCER ASSEMBLY RH Zagato	-	1	Enquire
15	35120056AC	SILENCER ASSY REAR RH	35120056AC SILENCER ASSY REAR RH	-	1	Enquire
16	35140041AA	REAR SILENCER ASSEMBLY LH	35140041AA REAR SILENCER ASSEMBLY LH Zagato	-	1	Enquire
16	35120057AC	SILENCER ASSY REAR LH	35120057AC SILENCER ASSY REAR LH	-	1	Enquire
17	35121270AC	PIPE EXHAUST OVER AXLE RH	35121270AC PIPE EXHAUST OVER AXLE RH	-	1	Enquire
18	35121271AC	PIPE EXHAUST OVER AXLE LH	35121271AC PIPE EXHAUST OVER AXLE LH	-	1	Enquire
19	35120338AA	EXHAUST TAIL PIPE FINISHER ASSY	35120338AA EXHAUST TAIL PIPE FINISHER ASSY Optional for sports exhaust	-	2	Enquire
19	35140042AA	EXHAUST TAILPIPE FINISHER	35140042AA EXHAUST TAILPIPE FINISHER Zagato	-	2	Enquire
20	698911	CLAMP ASSY SPHERICAL EXHAUST PIPE 50.8DIA	698911 CLAMP ASSY SPHERICAL EXHAUST PIPE 50.8DIA	-	2	Enquire
20	699326	BAND CLAMP 54-59 x 25 WIDE	699326 BAND CLAMP 54-59 x 25 WIDE	-	4	Enquire
21	698911	CLAMP ASSY SPHERICAL EXHAUST PIPE 50.8DIA	698911 CLAMP ASSY SPHERICAL EXHAUST PIPE 50.8DIA	-	2	Enquire
22	698907	Olive, spherical, 57.2dia	698907 Olive, spherical, 57.2dia	-	2	Enquire
23	698909	BOLT M8 x 55 HEX HD STAINLESS STEEL	698909 BOLT M8 x 55 HEX HD STAINLESS STEEL	-	2	Enquire
24	694118	WASHER M8 PLAIN STAINLESS STEEL	694118 WASHER M8 PLAIN STAINLESS STEEL	-	2	Enquire
25	698910	Clamp Assy Spherical Olive 60.4ID/2.3/8in	698910 Clamp Assy Spherical Olive 60.4ID/2.3/8in	-	2	Enquire
25	701884PK	NUT LOCKING (PACK OF 5)	701884PK NUT LOCKING (PACK OF 5)	-	2	Enquire
26	698910	Clamp Assy Spherical Olive 60.4ID/2.3/8in	698910 Clamp Assy Spherical Olive 60.4ID/2.3/8in	-	2	Enquire
27	698906	Olive, spherical, 63.5dia	698906 Olive, spherical, 63.5dia	-	2	Enquire
28	699178	BOLT M8 X 65 HEX HEAD STAINLESS STEEL	699178 BOLT M8 X 65 HEX HEAD STAINLESS STEEL	-	2	Enquire
29	694118	WASHER M8 PLAIN STAINLESS STEEL	694118 WASHER M8 PLAIN STAINLESS STEEL	-	2	Enquire
30	35120333AB	Fitting kit, exhaust	35120333AB Fitting kit, exhaust	-	1	Enquire
30	701884PK	NUT LOCKING (PACK OF 5)	701884PK NUT LOCKING (PACK OF 5)	-	2	Enquire
31	695567	SCREW M8 x20 HEX FLG GRD 8 8 ZINC PLATE	695567 SCREW M8 x20 HEX FLG GRD 8 8 ZINC PLATE	-	4	Enquire
32	692057	WASHER M8 x 16 x 1 MILD STEEL ZINC PLT	692057 WASHER M8 x 16 x 1 MILD STEEL ZINC PLT	-	12	Enquire
33	703730	Screw, M8 x 16, Hex Flange Head	703730 Screw, M8 x 16, Hex Flange Head	-	4	Enquire
34	3580462	CRADLE-EXH MOUNTING	3580462 CRADLE-EXH MOUNTING	-	6	Enquire
35	3583229	MOUNTING RUBBER	3583229 MOUNTING RUBBER	-	6	Enquire
36	3580461	BUSH	3580461 BUSH	-	6	Enquire
37	697444	NUT M8 FLG CLASS 8	697444 NUT M8 FLG CLASS 8	-	4	Enquire
38	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	1R123910174 Heated Exhaust Gas Oxygen Sensor Rear	-	2	Enquire
39	35123997AB	Exhaust system complete, sports, federal, large bore	35123997AB Exhaust system complete, sports, federal, large bore OE fit 2002 Model year Not GT	-	1	Enquire
39	35123998AB	Exhaust system complete, sports, federal, small bore	35123998AB Exhaust system complete, sports, federal, small bore OE fit 2002 Model year Not GT	-	1	Enquire
39	35123909AB	Exhaust system complete, sports, federal	35123909AB Exhaust system complete, sports, federal OE fit 2002 Model year Not GT	-	1	Enquire
39	35124002AB	Exhaust system standard, large bore	35124002AB Exhaust system standard, large bore OE fit 2002 Model year Not GT	-	1	Enquire
39	35124003AB	Exhaust system standard, small bore	35124003AB Exhaust system standard, small bore OE fit 2002 Model year Not GT	-	1	Enquire
39	35122360AD	Exhaust system complete	35122360AD Exhaust system complete OE fit 2002 Model year Not GT	-	1	Enquire
39	35125423AB	Exhaust system complete, GT	35125423AB Exhaust system complete, GT GT/DBAR1 Manual	-	1	Enquire
39	3486004	Shift trans retro control pedal rod	3486004 Shift trans retro control pedal rod GT/DBAR1	-	1	Enquire
39	35125288AB	BRACKET VACUUM PUMP MOUNTING	35125288AB BRACKET VACUUM PUMP MOUNTING GT/DBAR1	-	1	Enquire
39	35124947AB	TANK/SOLENOID/PUMP HOSE ASSY	35124947AB TANK/SOLENOID/PUMP HOSE ASSY GT/DBAR1	-	1	Enquire
39	35124949AB	GROMMET/VALVES HOSE ASSY	35124949AB GROMMET/VALVES HOSE ASSY GT/DBAR1	-	1	Enquire
39	699233PK	TIE-STRAP HT RES-100	699233PK TIE-STRAP HT RES-100 GT/DBAR1	-	1	Enquire
39	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	703206 SCREW-M5 x 8 HEX FLG CHROME FREE GT/DBAR1	-	1	Enquire
39	3486005	VACUUM PUMP	3486005 VACUUM PUMP GT/DBAR1	-	1	Enquire
39	8984150	Reservior, Vacuum	8984150 Reservior, Vacuum GT/DBAR1	-	1	Enquire
39	3781850	Grommet, battery vent tube	3781850 Grommet, battery vent tube GT/DBAR1	-	1	Enquire
39	697648	Fastener, Fir Tree	697648 Fastener, Fir Tree GT/DBAR1	-	2	Enquire
39	35124945AA	DUAL MODE VALVE	35124945AA DUAL MODE VALVE GT/DBAR1	-	2	Enquire
39	35125613AA	Exhaust system, large bore chamfered, standard	35125613AA Exhaust system, large bore chamfered, standard GT Auto	-	1	Enquire
39	35125614AA	Exhaust system, large bore chamfered, sports	35125614AA Exhaust system, large bore chamfered, sports GT Auto	-	1	Enquire
39	35140038AA	Exhaust system complete, Zagato	35140038AA Exhaust system complete, Zagato Zagato	-	1	Enquire
39	35123911AB	Silencer assy, centre, sports	35123911AB Silencer assy, centre, sports Not GT	-	1	Enquire
39	3527376	EXH TAILTRIM 3 1/8 SMALL CHROME	3527376 EXH TAILTRIM 3 1/8 SMALL CHROME Not GT	-	2	Enquire
39	3527375	EXH TAILTRIM 3 1/2 BIG BORE	3527375 EXH TAILTRIM 3 1/2 BIG BORE Not GT	-	2	Enquire
39	35140039AA	Slip joint, exhaust stub, 85mm	35140039AA Slip joint, exhaust stub, 85mm Zagato	-	2	Enquire
39	35120388AA	Finisher assy, tail pipe	35120388AA Finisher assy, tail pipe Not GT	-	2	Enquire
39	35123997AB	Exhaust system complete, sports, federal, large bore	35123997AB Exhaust system complete, sports, federal, large bore DBAR1	-	1	Enquire
39	35122360AD	Exhaust system complete	35122360AD Exhaust system complete DBAR1	-	1	Enquire
39	35124942AA	EXHAUST TAILTRIM LARGE BORE CHAMFERED	35124942AA EXHAUST TAILTRIM LARGE BORE CHAMFERED GT	-	2	Enquire
39	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter	1R123910175 Sensor HEGO RH Rear Post Catalytic Converter	-	2	Enquire
