Find Your Part

View All

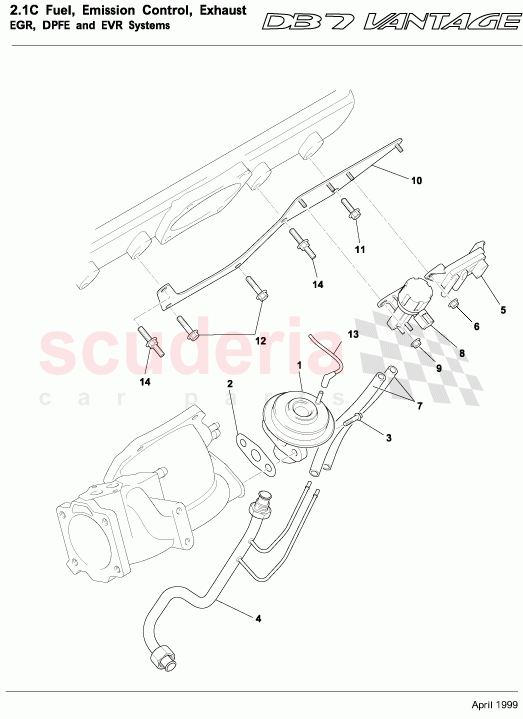

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3585388	EGR VALVE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

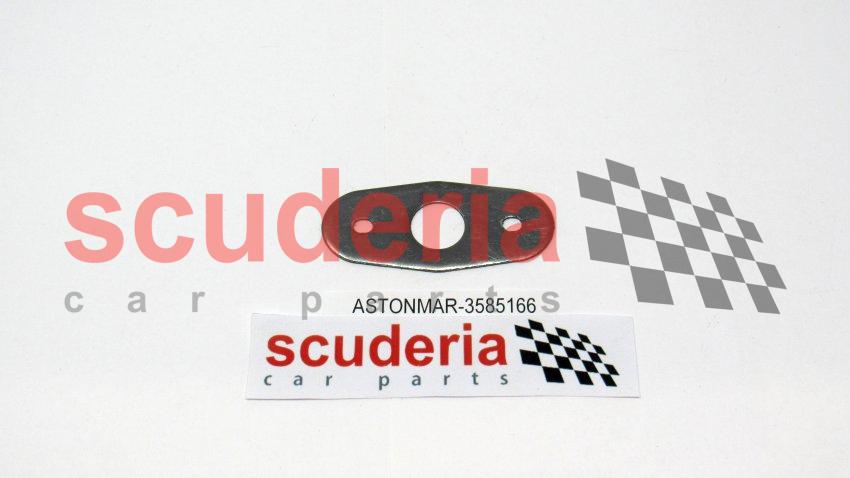

	3585166	Gasket-EGR Valve	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697738	BOLT &WASHER M8x1.25 x39	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3985131	TRANSDUCER-DPFE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697764	NUT M5x0.8 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

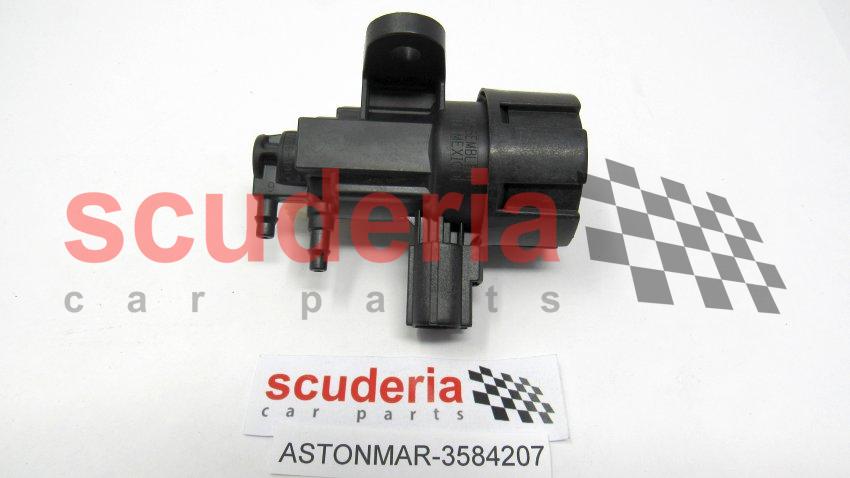

	3584207	EGR Valve (EGR)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697764	NUT M5x0.8 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699111	BOLT M6x1.0x18.5 HEX FLNG PIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	699102	STUDBOLT M6 x 1/M5 x0.83x42.3	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3585388	EGR VALVE ASSY	3585388 EGR VALVE ASSY	-	2	Enquire
2	3585166	Gasket-EGR Valve IN STOCK	3585166 Gasket-EGR Valve IN STOCK	-	2	Enquire
3	697738	BOLT &WASHER M8x1.25 x39	697738 BOLT &WASHER M8x1.25 x39	-	4	Enquire
4	3585167	TUBE-EGR/MANIFOLD-RH	3585167 TUBE-EGR/MANIFOLD-RH	-	1	Enquire
4	3585168	TUBE-EGR/MANIFOLD-LH	3585168 TUBE-EGR/MANIFOLD-LH	-	1	Enquire
5	3985131	TRANSDUCER-DPFE	3985131 TRANSDUCER-DPFE	-	2	Enquire
6	697764	NUT M5x0.8 HEX FLG	697764 NUT M5x0.8 HEX FLG	-	4	Enquire
7	3585385	HOSE-DELTA PFE 4.5 x 11.5 x 180mm L IN STOCK	3585385 HOSE-DELTA PFE 4.5 x 11.5 x 180mm L IN STOCK	-	1	Enquire
7	3585384	HOSE DELTA PFE 5.5 X 12.5 X 122MM L IN STOCK	3585384 HOSE DELTA PFE 5.5 X 12.5 X 122MM L IN STOCK	-	2	Enquire
8	3584207	EGR Valve (EGR) IN STOCK	3584207 EGR Valve (EGR) IN STOCK	-	2	Enquire
9	697764	NUT M5x0.8 HEX FLG	697764 NUT M5x0.8 HEX FLG	-	4	Enquire
10	3585169	BRACKET-EVR/IMANF LH	3585169 BRACKET-EVR/IMANF LH	-	1	Enquire
10	3585170	BRACKET-EVR/IMANF RH	3585170 BRACKET-EVR/IMANF RH	-	1	Enquire
11	699111	BOLT M6x1.0x18.5 HEX FLNG PIL	699111 BOLT M6x1.0x18.5 HEX FLNG PIL Support bracket to manifold	-	2	Enquire
12	703121	Screw, M8 x 25, Hex Flange Head IN STOCK	703121 Screw, M8 x 25, Hex Flange Head Support bracket to cylinder head IN STOCK	-	4	Enquire
14	699102	STUDBOLT M6 x 1/M5 x0.83x42.3	699102 STUDBOLT M6 x 1/M5 x0.83x42.3	-	4	Enquire
