Coupe Fuel Tank of Aston Martin Aston Martin DB7 Vantage

View All

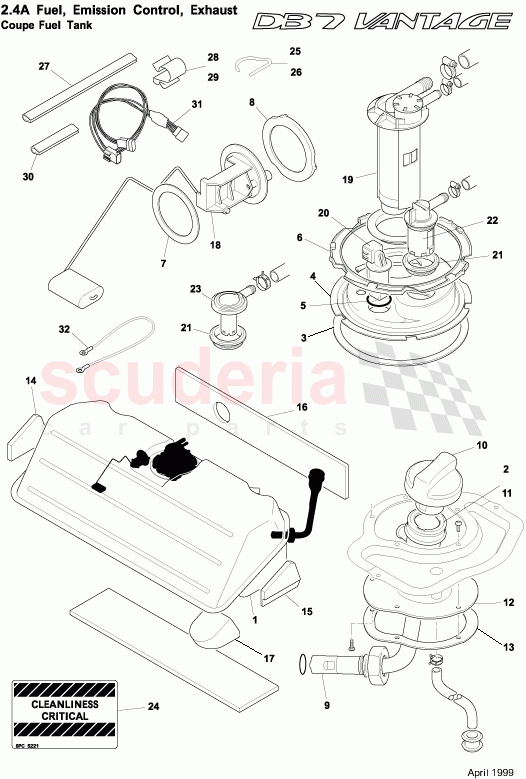

Aston Martin DB7 Vantage - Coupe Fuel Tank

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3486499	FUELTANK-COUPE N/FED	Enquire	To Order
	34121661AB	ASSY - FUEL TANK - COUPE FED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34121855AB	Filler pipe assy, fuel tank	Enquire	To Order
	34121663AC	Filler pipe assy, fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3484300	EVAPOURATIVE LOSS FLANGE SEALING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3485308	STANT GRADE VALVE	Enquire	To Order
	34120319AA	Flange, evaporative loss	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3486570	O RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3481413	RING - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3483775	RING SEAL FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3483774	RING-LOCKING-F/TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3485144	CHECK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34123901AA	ASSY-TETHERED FUEL FILLER CAP	Enquire	To Order
	34120820AA	ASSEMBLY CAP - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34120822AC	ASSY - FUEL FILLER PIPE - NON FED	Enquire	To Order
	34122260AC	ASSY - FUEL FILLER PIPE - FEDERAL	Enquire	To Order
	34124963AA	FACE SEAL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	34122901AB	GROMMET - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34122910AB	ASSY - GROMMET CLAMPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3481422	PAD-LATERAL LOCATION RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3481423	PAD-LATERAL LOCATION LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8584292	PAD-TRUNK REINFORCE- MENT	Enquire	To Order
	85121110AA	PAD - FUEL TANK SHELF	Enquire	To Order
	8581425	PAD-INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3481426	SEAL-TANK TO CHASSIS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781415	SENSOR - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3486249	VALVE-LIQUID VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3481418	CONNECTOR SUMITO 04DL90HSNPNAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3485149	SEAL-ROLL OVER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3485150	ROLL OVER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3485308	STANT GRADE VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9781468	LABEL-CLEANLINESS- FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3481445	CLIP-SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3481446	CLIP-SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781933	STRIP EDGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697765	CLIP-EDGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697766	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3381094	Strip, Edge Protection, 65mm	Enquire	To Order
	34123329AB	STRAP-FUEL TANK	Enquire	To Order
	68123106AA	NYLON WASHER (BLK) (M5x10x0.1)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3783220	SUPPRESSION MODULE- FUEL PUMP	Enquire	To Order
	37124192AA	LINK LEAD-FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37123644AA	LINK LEAD FUEL FILLER EARTH STRAP	Enquire	To Order
	3486039	ASSY-BRACKET TRUNK REINFORCE RH	Enquire	To Order
	3486040	ASSY-BRACKET TRUNK REINFORCE LH	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3486499	FUELTANK-COUPE N/FED	3486499 FUELTANK-COUPE N/FED Non federal	-	1	Enquire
1	34121661AB	ASSY - FUEL TANK - COUPE FED	34121661AB ASSY - FUEL TANK - COUPE FED Federal	-	1	Enquire
2	34121855AB	Filler pipe assy, fuel tank	34121855AB Filler pipe assy, fuel tank Non Federal	-	1	Enquire
2	34121663AC	Filler pipe assy, fuel tank	34121663AC Filler pipe assy, fuel tank Federal	-	1	Enquire
3	3484300	EVAPOURATIVE LOSS FLANGE SEALING RING	3484300 EVAPOURATIVE LOSS FLANGE SEALING RING	-	1	Enquire
4	3485308	STANT GRADE VALVE	3485308 STANT GRADE VALVE Non federal	-	1	Enquire
4	34120319AA	Flange, evaporative loss	34120319AA Flange, evaporative loss Federal	-	1	Enquire
5	3486570	O RING	3486570 O RING	-	1	Enquire
6	3481413	RING - LOCKING	3481413 RING - LOCKING	-	1	Enquire
7	3483775	RING SEAL FUEL TANK	3483775 RING SEAL FUEL TANK	-	1	Enquire
8	3483774	RING-LOCKING-F/TANK	3483774 RING-LOCKING-F/TANK	-	1	Enquire
9	3485144	CHECK VALVE	3485144 CHECK VALVE Federal	-	1	Enquire
10	34123901AA	ASSY-TETHERED FUEL FILLER CAP	34123901AA ASSY-TETHERED FUEL FILLER CAP	-	1	Enquire
10	34120820AA	ASSEMBLY CAP - FUEL FILLER	34120820AA ASSEMBLY CAP - FUEL FILLER	-	1	Enquire
11	34120822AC	ASSY - FUEL FILLER PIPE - NON FED	34120822AC ASSY - FUEL FILLER PIPE - NON FED Non federal	-	1	Enquire
11	34122260AC	ASSY - FUEL FILLER PIPE - FEDERAL	34122260AC ASSY - FUEL FILLER PIPE - FEDERAL Federal	-	1	Enquire
11	34124963AA	FACE SEAL	34124963AA FACE SEAL	-	1	Enquire
11	34124964AA	O-RING	34124964AA O-RING	-	1	Enquire
12	34122901AB	GROMMET - FUEL	34122901AB GROMMET - FUEL	-	1	Enquire
13	34122910AB	ASSY - GROMMET CLAMPING	34122910AB ASSY - GROMMET CLAMPING	-	1	Enquire
14	3481422	PAD-LATERAL LOCATION RH	3481422 PAD-LATERAL LOCATION RH	-	1	Enquire
15	3481423	PAD-LATERAL LOCATION LH	3481423 PAD-LATERAL LOCATION LH	-	1	Enquire
16	8584292	PAD-TRUNK REINFORCE- MENT	8584292 PAD-TRUNK REINFORCE- MENT	-	1	Enquire
16	85121110AA	PAD - FUEL TANK SHELF	85121110AA PAD - FUEL TANK SHELF	-	1	Enquire
16	8581425	PAD-INSULATION	8581425 PAD-INSULATION	-	1	Enquire
17	3481426	SEAL-TANK TO CHASSIS	3481426 SEAL-TANK TO CHASSIS	-	1	Enquire
18	3781415	SENSOR - FUEL TANK	3781415 SENSOR - FUEL TANK	-	1	Enquire
19	3486249	VALVE-LIQUID VAPOUR	3486249 VALVE-LIQUID VAPOUR Federal	-	1	Enquire
20	3481418	CONNECTOR SUMITO 04DL90HSNPNAT	3481418 CONNECTOR SUMITO 04DL90HSNPNAT	-	1	Enquire
21	3485149	SEAL-ROLL OVER VALVE	3485149 SEAL-ROLL OVER VALVE	-	1	Enquire
22	3485150	ROLL OVER VALVE	3485150 ROLL OVER VALVE Federal	-	1	Enquire
23	3485308	STANT GRADE VALVE	3485308 STANT GRADE VALVE Non Federal	-	1	Enquire
24	9781468	LABEL-CLEANLINESS- FUEL TANK	9781468 LABEL-CLEANLINESS- FUEL TANK	-	1	Enquire
25	3481445	CLIP-SPRING	3481445 CLIP-SPRING	-	1	Enquire
26	3481446	CLIP-SPRING	3481446 CLIP-SPRING	-	1	Enquire
27	3781933	STRIP EDGE	3781933 STRIP EDGE	-	1	Enquire
28	697765	CLIP-EDGE	697765 CLIP-EDGE	-	3	Enquire
29	697766	CLIP	697766 CLIP	-	2	Enquire
30	3381094	Strip, Edge Protection, 65mm	3381094 Strip, Edge Protection, 65mm	-	2	Enquire
30	34123329AB	STRAP-FUEL TANK	34123329AB STRAP-FUEL TANK	-	2	Enquire
30	68123106AA	NYLON WASHER (BLK) (M5x10x0.1)	68123106AA NYLON WASHER (BLK) (M5x10x0.1)	-	3	Enquire
31	3783220	SUPPRESSION MODULE- FUEL PUMP	3783220 SUPPRESSION MODULE- FUEL PUMP Up to (V) 302252	-	1	Enquire
31	37124192AA	LINK LEAD-FUEL PUMP	37124192AA LINK LEAD-FUEL PUMP From (V) 302253	-	1	Enquire
32	37123644AA	LINK LEAD FUEL FILLER EARTH STRAP	37123644AA LINK LEAD FUEL FILLER EARTH STRAP	-	1	Enquire
32	3486039	ASSY-BRACKET TRUNK REINFORCE RH	3486039 ASSY-BRACKET TRUNK REINFORCE RH	-	1	Enquire
32	3486040	ASSY-BRACKET TRUNK REINFORCE LH	3486040 ASSY-BRACKET TRUNK REINFORCE LH	-	1	Enquire
32	3485340	FILTER	3485340 FILTER	-	1	Enquire
32	3485992	FILTER-DRAIN TUBE	3485992 FILTER-DRAIN TUBE	-	1	Enquire
32	3485341	FILTER-MODIFIED	3485341 FILTER-MODIFIED	-	1	Enquire
