Evaporative Emission System (Non Federal)

Aston Martin DB7 Vantage

Find Your Part

Aston Martin DB7 Vantage - Evaporative Emission System (Non Federal)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
34120888AB BRACKET ASSEMBLY- CANISTER MOUNTING RH Enquire To Order
Photo Part No Description Price (each) Stock
34121367AB BRACKET-ASSEMBLY CANISTER MOUNTING LH Enquire To Order
Photo Part No Description Price (each) Stock
3485176 FOAM STRIP-40mm Enquire To Order
Photo Part No Description Price (each) Stock
3484916 CARBON CANNISTER Enquire To Order
Photo Part No Description Price (each) Stock
3484258 GROMMET - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
34122237AA T connector Enquire To Order
Photo Part No Description Price (each) Stock
34121557AA PIPE ASSY VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
34122239AA HOSE ASSY - EVAP FLANGE TO CARBON CAN (FED) Enquire To Order
Photo Part No Description Price (each) Stock
34122240AA T connector Enquire To Order
Photo Part No Description Price (each) Stock
34123178AA Hose, 90 long Enquire To Order
Photo Part No Description Price (each) Stock
3485178 SENSOR-FTPT-REMOTE Enquire To Order
Photo Part No Description Price (each) Stock
34122242AA Clip Enquire To Order
Photo Part No Description Price (each) Stock
34122250AA Hose, 475 long Enquire To Order
Photo Part No Description Price (each) Stock
34122243AA Elbow connector Enquire To Order
Photo Part No Description Price (each) Stock
34122990AA Schraeder valve assy Enquire To Order
Photo Part No Description Price (each) Stock
34122252AA Hose, 70 long Enquire To Order
Photo Part No Description Price (each) Stock
34122286AA Clip Enquire To Order
Photo Part No Description Price (each) Stock
34122244AA Pipe, canister to canister Enquire To Order
Photo Part No Description Price (each) Stock
34122994AA HOSE Enquire To Order
Photo Part No Description Price (each) Stock
34122995AA Hose, 60 long Enquire To Order
Photo Part No Description Price (each) Stock
3485325 CONNECTOR-C/CANISTER Enquire To Order
Photo Part No Description Price (each) Stock
34122242AA Clip Enquire To Order
Photo Part No Description Price (each) Stock
34122238AA HOSE ASSY - EVAP FLANGE TO CARBON CAN (NON FED) Enquire To Order
Photo Part No Description Price (each) Stock
34122754BA HOSE TANK TO FILLER NECK (CONV) Enquire To Order
34122704AA HOSE TANK FILLER NECK (COUPE) Enquire To Order
698996 CLIP PIPE DIA 15-21 Enquire To Order
Photo Part No Description Price (each) Stock
3485308 STANT GRADE VALVE Enquire To Order
Photo Part No Description Price (each) Stock
3484269 PURGE VALVE (CANVNT) Enquire To Order
Photo Part No Description Price (each) Stock
3484268 PURGE VALVE (VMV) Enquire To Order
Photo Part No Description Price (each) Stock
34123472AA ASSEMBLY-BRACKET-RH CANISTER RETAINER Enquire To Order
Photo Part No Description Price (each) Stock
34123470AA ASSEMBLY-BRACKET-LH CANISTER RETAINER Enquire To Order
Photo Part No Description Price (each) Stock
34122971AB PIPE - SOLENOID TO FIRST CAN Enquire To Order
34122995AA Hose, 60 long Enquire To Order
34122996AA Hose Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3281332 GROMMET- 12.7 Dia 2.8 P.T Enquire To Order
Photo Part No Description Price (each) Stock
34121263AB PIPE SIGNAL - UNDER FLOOR Enquire To Order
3484539 ARMOUR HOSE Enquire To Order
700119 SPACER Enquire To Order
...and 1 more part variants. See table on right for more details.
View All

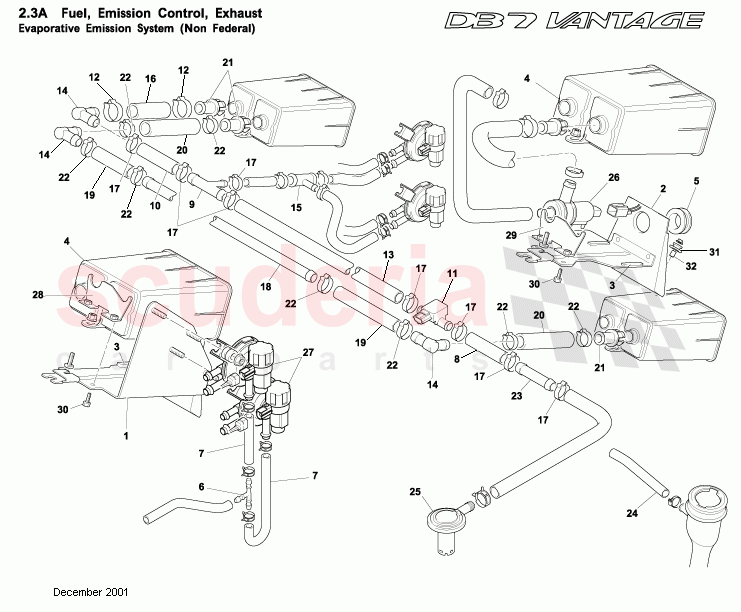

Evaporative Emission System (Non Federal) of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 34122238AA
HOSE ASSY - EVAP FLANGE TO CARBON CAN (NON FED) 		- 1 Enquire
1 34120888AB
BRACKET ASSEMBLY- CANISTER MOUNTING RH 		- 1 Enquire
2 34121367AB
BRACKET-ASSEMBLY CANISTER MOUNTING LH 		- 1 Enquire
3 3485176
FOAM STRIP-40mm 		- 4 Enquire
4 3484916
CARBON CANNISTER 		- 2 Enquire
5 3484258
GROMMET - RUBBER 		- 2 Enquire
6 34122237AA
T connector 		- 1 Enquire
7 34121557AA
PIPE ASSY VACUUM 		- 2 Enquire
8 34122239AA
HOSE ASSY - EVAP FLANGE TO CARBON CAN (FED) 		- 2 Enquire
9 34122240AA
T connector 		- 1 Enquire
10 34123178AA
Hose, 90 long 		- 1 Enquire
11 3485178
SENSOR-FTPT-REMOTE 		- 1 Enquire
12 34122242AA
Clip 		- 3 Enquire
13 34122250AA
Hose, 475 long 		- 1 Enquire
14 34122243AA
Elbow connector 		- 1 Enquire
15 34122990AA
Schraeder valve assy 		- 1 Enquire
16 34122252AA
Hose, 70 long 		- 1 Enquire
17 34122286AA
Clip 		- 6 Enquire
18 34122244AA
Pipe, canister to canister 		- 1 Enquire
19 34122994AA
HOSE 		- 2 Enquire
20 34122995AA
Hose, 60 long 		- 2 Enquire
21 3485325
CONNECTOR-C/CANISTER 		- 2 Enquire
22 34122242AA
Clip 		- 8 Enquire
23 34122238AA
HOSE ASSY - EVAP FLANGE TO CARBON CAN (NON FED) 		- 1 Enquire
24 34122754BA
HOSE TANK TO FILLER NECK (CONV)
Volante 		- 1 Enquire
24 34122704AA
HOSE TANK FILLER NECK (COUPE)
Coupe 		- 1 Enquire
24 698996
CLIP PIPE DIA 15-21 		- 2 Enquire
25 3485308
STANT GRADE VALVE 		- 1 Enquire
26 3484269
PURGE VALVE (CANVNT) 		- 1 Enquire
27 3484268
PURGE VALVE (VMV) 		- 2 Enquire
28 34123472AA
ASSEMBLY-BRACKET-RH CANISTER RETAINER 		- 1 Enquire
29 34123470AA
ASSEMBLY-BRACKET-LH CANISTER RETAINER 		- 1 Enquire
30 34122971AB
PIPE - SOLENOID TO FIRST CAN 		- 1 Enquire
30 34122995AA
Hose, 60 long 		- 1 Enquire
30 34122996AA
Hose 		- 1 Enquire
30 3485533
FOAM PAD 		- 2 Enquire
30 697304
SCREW M5 x 10 HEX FLANGE HEAD GRADE 8.8 		- 4 Enquire
31 3281332
GROMMET- 12.7 Dia 2.8 P.T 		- 2 Enquire
32 34121263AB
PIPE SIGNAL - UNDER FLOOR 		- 1 Enquire
32 3484539
ARMOUR HOSE 		- 1 Enquire
32 700119
SPACER 		- 2 Enquire
32 3790075
Cable Tie, 290mm 		- 2 Enquire
