Coupe Fuel Tank Swirl Pot of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Coupe Fuel Tank Swirl Pot

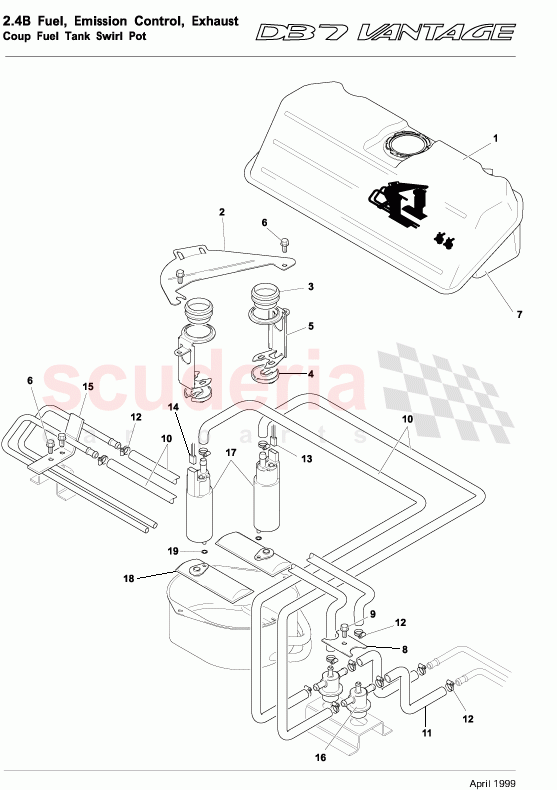

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3486499	FUELTANK-COUPE N/FED	Enquire	To Order
	34121661AB	ASSY - FUEL TANK - COUPE FED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3485137	PLATE-SURGE POT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3485138	PUMP MOUNTING RUBBER TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3485139	PUMP MOUNTING RUBBER BOTTOM	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3485140	BRACKET-PUMP MTG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697304	SCREW M5 x 10 HEX FLANGE HEAD GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3485141	O RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	34120934AA	Clamp plate, pressure regulator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	34121316AA	HOSE - IN TANK (370 LONG)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34121317AA	HOSE - IN TANK (120 LONG)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692613	Hose-Clip 10-16mm	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	34121306AA	LINK LEAD FUEL PUMP RH ASSY	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	34121307AA	LINK LEAD FUEL PUMP LH ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34120900AA	Pipe and clip assy, fuel return	Enquire	To Order
	34122190AA	Pipe, surge pot fill	Enquire	To Order
	34122191AA	Pipe, surge pot fill	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3485606	REGULATOR-F/PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

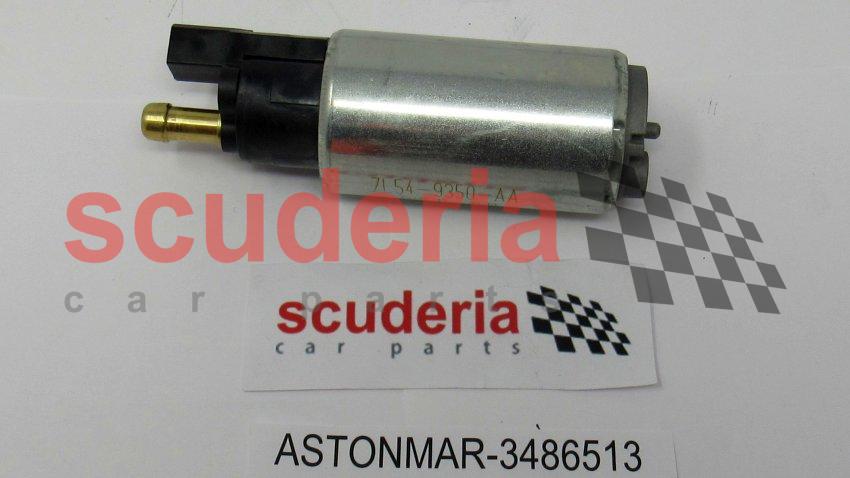

	3486513	Fuel Pump	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3485146	FUEL PUMP FILTER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3485147	FILTER WASHER	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3486499	FUELTANK-COUPE N/FED	3486499 FUELTANK-COUPE N/FED	-	1	Enquire
1	34121661AB	ASSY - FUEL TANK - COUPE FED	34121661AB ASSY - FUEL TANK - COUPE FED	-	1	Enquire
2	3485137	PLATE-SURGE POT	3485137 PLATE-SURGE POT	-	1	Enquire
3	3485138	PUMP MOUNTING RUBBER TOP	3485138 PUMP MOUNTING RUBBER TOP	-	2	Enquire
4	3485139	PUMP MOUNTING RUBBER BOTTOM IN STOCK	3485139 PUMP MOUNTING RUBBER BOTTOM IN STOCK	-	2	Enquire
5	3485140	BRACKET-PUMP MTG	3485140 BRACKET-PUMP MTG	-	2	Enquire
6	697304	SCREW M5 x 10 HEX FLANGE HEAD GRADE 8.8	697304 SCREW M5 x 10 HEX FLANGE HEAD GRADE 8.8	-	4	Enquire
7	3485141	O RING IN STOCK	3485141 O RING Inside tank end of pipe IN STOCK	-	2	Enquire
8	34120934AA	Clamp plate, pressure regulator	34120934AA Clamp plate, pressure regulator	-	1	Enquire
9	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head IN STOCK	-	1	Enquire
10	34121316AA	HOSE - IN TANK (370 LONG)	34121316AA HOSE - IN TANK (370 LONG)	-	4	Enquire
11	34121317AA	HOSE - IN TANK (120 LONG)	34121317AA HOSE - IN TANK (120 LONG)	-	2	Enquire
12	692613	Hose-Clip 10-16mm IN STOCK	692613 Hose-Clip 10-16mm IN STOCK	-	12	Enquire
13	34121306AA	LINK LEAD FUEL PUMP RH ASSY IN STOCK	34121306AA LINK LEAD FUEL PUMP RH ASSY IN STOCK	-	1	Enquire
14	34121307AA	LINK LEAD FUEL PUMP LH ASSY	34121307AA LINK LEAD FUEL PUMP LH ASSY	-	1	Enquire
15	34120900AA	Pipe and clip assy, fuel return	34120900AA Pipe and clip assy, fuel return	-	1	Enquire
15	34122190AA	Pipe, surge pot fill	34122190AA Pipe, surge pot fill	-	1	Enquire
15	34122191AA	Pipe, surge pot fill	34122191AA Pipe, surge pot fill	-	1	Enquire
15	34122189AA	Bracket, clamp	34122189AA Bracket, clamp	-	1	Enquire
16	3485606	REGULATOR-F/PRESSURE	3485606 REGULATOR-F/PRESSURE	-	2	Enquire
17	3486513	Fuel Pump IN STOCK	3486513 Fuel Pump IN STOCK	-	2	Enquire
18	3485146	FUEL PUMP FILTER IN STOCK	3485146 FUEL PUMP FILTER IN STOCK	-	2	Enquire
19	3485147	FILTER WASHER IN STOCK	3485147 FILTER WASHER IN STOCK	-	2	Enquire
