Air Filter and MAF Sensor of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Air Filter and MAF Sensor

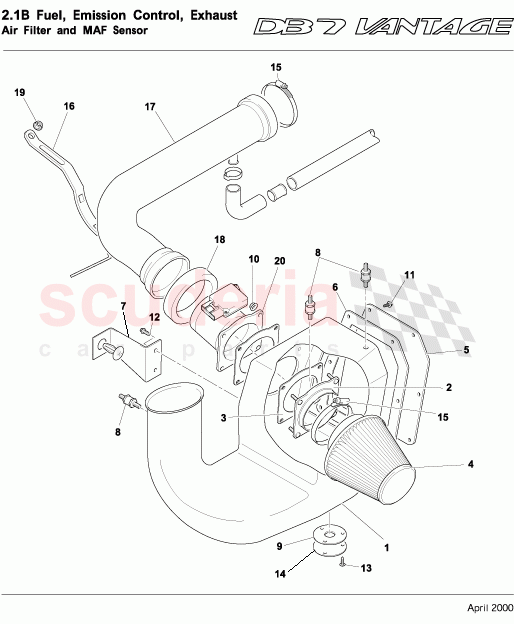

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12120813AC	ASSY AIRBOX LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12120279AB	ASSY ADAPTOR RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12120280AA	GASKET MAFS TO AIRBX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

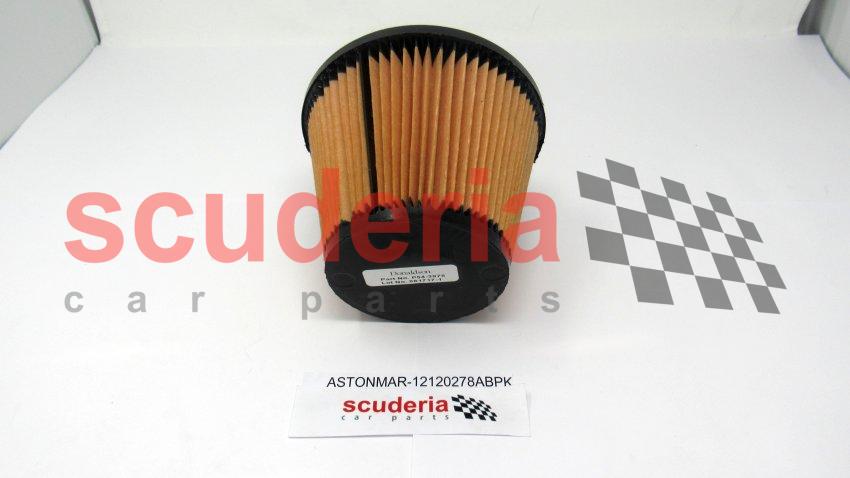

	12120278ABPK	AIR FILTER (PACK OF 2)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12121140AA	Lid, airbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12121638AA	Bracket, airbox mounting, RH	Enquire	To Order
	12121138AA	GASKET-AIRBOX LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12121639AB	BRACKET AIR BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698899	RUBBER ISOLATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12123381AA	SEAL-WATER DRAIN VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	695514	NUT M6 HEX FLG SLK GRD 8 ZINC PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697118	SCREW M5 x 16 HEX FLANGE HEAD GRD 8.8 ZINC PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	695562	SCREW M6 x10 HEX FLG GRD 8.8 ZINC PLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697645	SCREW-SELF DRILLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12111577AA	Cover, air box drain	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8121132AD	BRACKET SUPPORT INTAKE DUCT RH	Enquire	To Order
	698979	CLIP HOSE WORM DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8121133AA	BRACKET SUPPORT INTAKE DUCT LH	Enquire	To Order

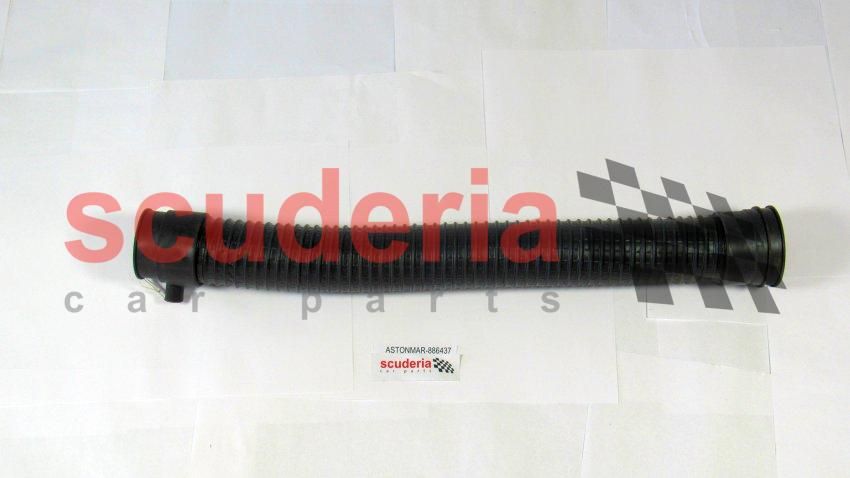

	886437	Assy Air Intake Duct	Enquire	To Order
	691787PK	CABLE TIE-BLACK(100)	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	886437	Assy Air Intake Duct	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8122020AA	SEAL AIR INTAKE DUCT	Enquire	To Order
	699269	LOCTITE 480 ADHESIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697764	NUT M5x0.8 HEX FLG	Enquire	To Order
	124383	WASHER 1/4 x 1 PLAIN MILD STEEL ZINC PLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	885812	SENSOR-MASS AIR FLOW	Enquire	To Order
	885285	LINK-MAF SENSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	12120812AC	ASSY AIR BOX RH	12120812AC ASSY AIR BOX RH	-	1	Enquire
-	12120813AC	ASSY AIRBOX LH	12120813AC ASSY AIRBOX LH	-	1	Enquire
1	12120813AC	ASSY AIRBOX LH	12120813AC ASSY AIRBOX LH	-	1	Enquire
2	12120279AB	ASSY ADAPTOR RING	12120279AB ASSY ADAPTOR RING	-	2	Enquire
3	12120280AA	GASKET MAFS TO AIRBX	12120280AA GASKET MAFS TO AIRBX	-	4	Enquire
4	12120278ABPK	AIR FILTER (PACK OF 2)	12120278ABPK AIR FILTER (PACK OF 2)	-	2	Enquire
5	12121140AA	Lid, airbox	12121140AA Lid, airbox	-	2	Enquire
6	12121638AA	Bracket, airbox mounting, RH	12121638AA Bracket, airbox mounting, RH	-	1	Enquire
6	12121138AA	GASKET-AIRBOX LID	12121138AA GASKET-AIRBOX LID	-	2	Enquire
7	12121639AB	BRACKET AIR BOX	12121639AB BRACKET AIR BOX	-	1	Enquire
8	698899	RUBBER ISOLATOR	698899 RUBBER ISOLATOR	-	6	Enquire
9	12123381AA	SEAL-WATER DRAIN VALVE	12123381AA SEAL-WATER DRAIN VALVE	-	2	Enquire
10	695514	NUT M6 HEX FLG SLK GRD 8 ZINC PLATE	695514 NUT M6 HEX FLG SLK GRD 8 ZINC PLATE	-	8	Enquire
11	697118	SCREW M5 x 16 HEX FLANGE HEAD GRD 8.8 ZINC PLATE	697118 SCREW M5 x 16 HEX FLANGE HEAD GRD 8.8 ZINC PLATE	-	12	Enquire
12	695562	SCREW M6 x10 HEX FLG GRD 8.8 ZINC PLT	695562 SCREW M6 x10 HEX FLG GRD 8.8 ZINC PLT	-	4	Enquire
13	697645	SCREW-SELF DRILLING	697645 SCREW-SELF DRILLING	-	6	Enquire
14	12111577AA	Cover, air box drain	12111577AA Cover, air box drain	-	2	Enquire
15	8121132AD	BRACKET SUPPORT INTAKE DUCT RH	8121132AD BRACKET SUPPORT INTAKE DUCT RH	-	1	Enquire
15	698979	CLIP HOSE WORM DRIVE	698979 CLIP HOSE WORM DRIVE	-	4	Enquire
16	8121133AA	BRACKET SUPPORT INTAKE DUCT LH	8121133AA BRACKET SUPPORT INTAKE DUCT LH	-	1	Enquire
16	886437	Assy Air Intake Duct	886437 Assy Air Intake Duct	-	1	Enquire
16	691787PK	CABLE TIE-BLACK(100)	691787PK CABLE TIE-BLACK(100)	-	2	Enquire
16	697764	NUT M5x0.8 HEX FLG	697764 NUT M5x0.8 HEX FLG	-	2	Enquire
16	697564	Retainer, Push On	697564 Retainer, Push On	-	2	Enquire
17	886437	Assy Air Intake Duct	886437 Assy Air Intake Duct	-	1	Enquire
18	8122020AA	SEAL AIR INTAKE DUCT	8122020AA SEAL AIR INTAKE DUCT	-	2	Enquire
18	699269	LOCTITE 480 ADHESIVE	699269 LOCTITE 480 ADHESIVE	-	-	Enquire
19	697764	NUT M5x0.8 HEX FLG	697764 NUT M5x0.8 HEX FLG	-	2	Enquire
19	124383	WASHER 1/4 x 1 PLAIN MILD STEEL ZINC PLT	124383 WASHER 1/4 x 1 PLAIN MILD STEEL ZINC PLT	-	4	Enquire
20	885812	SENSOR-MASS AIR FLOW	885812 SENSOR-MASS AIR FLOW	-	2	Enquire
20	885285	LINK-MAF SENSOR	885285 LINK-MAF SENSOR	-	2	Enquire
