Engine Electrical Components of Aston Martin Aston Martin DB7 Vantage

View All

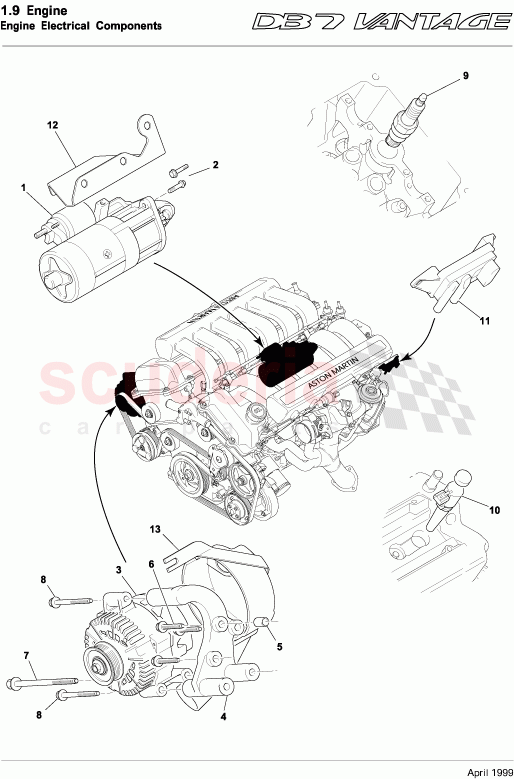

Aston Martin DB7 Vantage - Engine Electrical Components

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G4311000AB	STARTER MOTOR DRIVE RELAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703277	BOLT-M10x1.5x40	Enquire	To Order
	695455	BOLT M10x70 HEX FLG BOLT M10x70 HEX FLG SLK GRK 8.8	Enquire	To Order
	692058	WASHER M10 PLAIN MED MILD STEEL ZINC PLT	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9122291AC	ALTERNATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985125	ALTERNATOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697759	Dowel, hollow, 14.0 X 17.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697760	BOLT M10 x 45 FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697761	Bolt, flg, M10 X 156	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697762	BOLT M10 x 85.3 FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

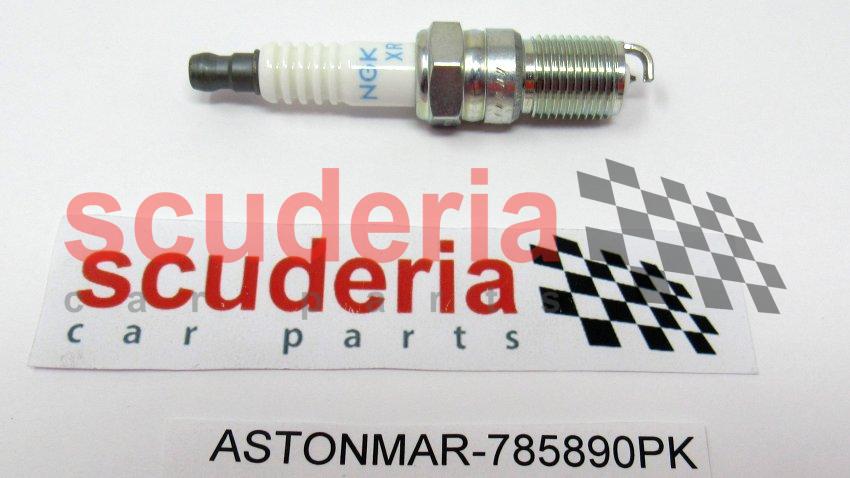

	785890PK	Spark Plug (Pack of 4)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91701	HARNESS ASSY-ENGINE	Enquire	To Order
	3782020	EARTH ENGINE BODY	Enquire	To Order
	3785129	Jumper harness	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3985131	TRANSDUCER-DPFE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86121075AC	HEATSHIELD - STARTER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12371081AA	HEATSHIELD - ALTERNATOR	Enquire	To Order
	1R12370806AA	DUCT - ALTERNATOR HEATSHIELD - SIZE 40 I/D x 740mm LONG	Enquire	To Order
	699233PK	TIE-STRAP HT RES-100	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G4311000AB	STARTER MOTOR DRIVE RELAY	8G4311000AB STARTER MOTOR DRIVE RELAY	-	1	Enquire
2	703277	BOLT-M10x1.5x40	703277 BOLT-M10x1.5x40 Manual Starter motor attach	-	2	Enquire
2	695455	BOLT M10x70 HEX FLG BOLT M10x70 HEX FLG SLK GRK 8.8	695455 BOLT M10x70 HEX FLG BOLT M10x70 HEX FLG SLK GRK 8.8 Auto Starter motor attach	-	2	Enquire
2	692058	WASHER M10 PLAIN MED MILD STEEL ZINC PLT	692058 WASHER M10 PLAIN MED MILD STEEL ZINC PLT Auto Starter motor attach	-	2	Enquire
2	707926	NUT M10 HEX FLANGE P/T	707926 NUT M10 HEX FLANGE P/T Auto Starter motor attach	-	2	Enquire
2	14124439AA	STARTER MOTOR SHIM	14124439AA STARTER MOTOR SHIM	-	1	Enquire
3	9122291AC	ALTERNATOR	9122291AC ALTERNATOR	-	1	Enquire
4	985125	ALTERNATOR BRACKET	985125 ALTERNATOR BRACKET	-	1	Enquire
5	697759	Dowel, hollow, 14.0 X 17.5	697759 Dowel, hollow, 14.0 X 17.5 Generator bracket to cylinder head	-	2	Enquire
6	697760	BOLT M10 x 45 FLG	697760 BOLT M10 x 45 FLG Generator bracket to cylinder head	-	3	Enquire
7	697761	Bolt, flg, M10 X 156	697761 Bolt, flg, M10 X 156 Generator to bracket	-	1	Enquire
8	697762	BOLT M10 x 85.3 FLG	697762 BOLT M10 x 85.3 FLG Generator to bracket	-	2	Enquire
9	785890PK	Spark Plug (Pack of 4)	785890PK Spark Plug (Pack of 4)	-	12	Enquire
10	91701	HARNESS ASSY-ENGINE	91701 HARNESS ASSY-ENGINE	-	1	Enquire
10	3782020	EARTH ENGINE BODY	3782020 EARTH ENGINE BODY	-	1	Enquire
10	3785129	Jumper harness	3785129 Jumper harness	-	1	Enquire
10	785127	Ignition Coil and Boot Assembly - 3 Pin	785127 Ignition Coil and Boot Assembly - 3 Pin	-	12	Enquire
10	CD330710073	CAPACITOR ASY-RADIO	CD330710073 CAPACITOR ASY-RADIO	-	2	Enquire
11	3985131	TRANSDUCER-DPFE	3985131 TRANSDUCER-DPFE	-	2	Enquire
12	86121075AC	HEATSHIELD - STARTER MOTOR	86121075AC HEATSHIELD - STARTER MOTOR	-	1	Enquire
13	1R12371081AA	HEATSHIELD - ALTERNATOR	1R12371081AA HEATSHIELD - ALTERNATOR	-	1	Enquire
13	1R12370806AA	DUCT - ALTERNATOR HEATSHIELD - SIZE 40 I/D x 740mm LONG	1R12370806AA DUCT - ALTERNATOR HEATSHIELD - SIZE 40 I/D x 740mm LONG	-	1	Enquire
13	699233PK	TIE-STRAP HT RES-100	699233PK TIE-STRAP HT RES-100	-	3	Enquire
