Engine Mountings of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Engine Mountings

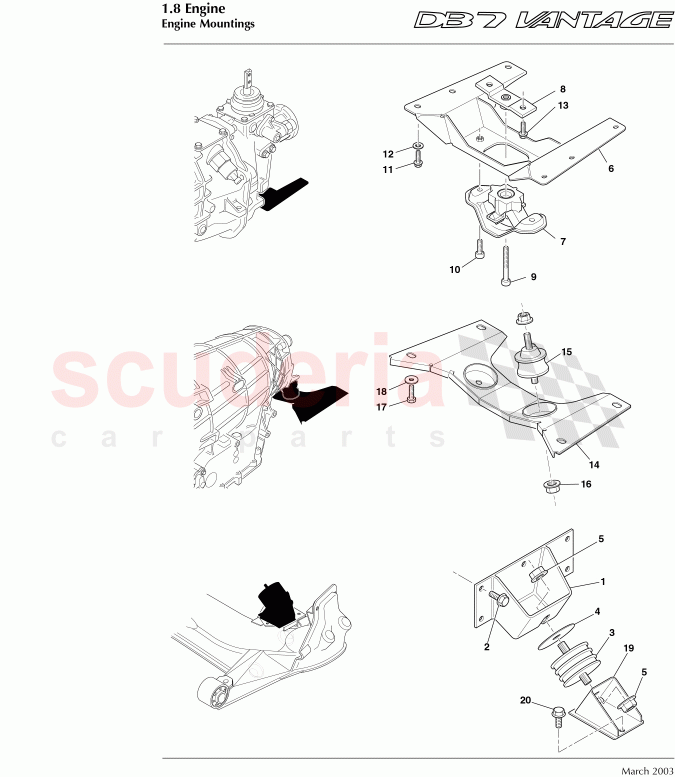

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	10120963AB	ASSY MTG BRKT LH ENGINE MOUNTING	$99.50	To Order
	10120962AB	ASSY MTG BRKT RH ENGINE MOUNTING	$99.50	To Order

Photo	Part No	Description	Price (each)	Stock
	703200	SCREW M10x25 HEX FLG CHROME FREE	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	707785	ENGINE MOUNTING RUBBER RH M10 STUDS	$13.85	To Order
	1080142	Engine Mounting Rubber LH	$112.66	To Order

Photo	Part No	Description	Price (each)	Stock
	1080143	INSULATOR	$42.38	To Order

Photo	Part No	Description	Price (each)	Stock
	697628	NUT M10 HEX-DURLOC GRADE 12 BLACK	$4.80	To Order

Photo	Part No	Description	Price (each)	Stock
	41123204AD	ASSY CROSSMEMBER GEARBOX MOUNTING	$679.81	To Order

Photo	Part No	Description	Price (each)	Stock
	10123380AA	REAR ENGINE MOUNTING	$1,395.36	To Order

Photo	Part No	Description	Price (each)	Stock
	41123208AB	ASSY BRKT MTG G/BOX	$78.11	To Order

Photo	Part No	Description	Price (each)	Stock
	699095	SCREW 10x70 TORX	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	699096	SCREW M10x20 TORX	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	697186	SCREW M8 x 20 HEX HEAD GRADE 8.8	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	694597	WASHER M8 x 25 x 3	$3.51	To Order

Photo	Part No	Description	Price (each)	Stock
	695161	SCREW M10 x 35 HEX GRD 8 8 ZINC PLT	$1.37	To Order
	697285	NUT M10 FLANGED	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	42121045AA	ASSY CROSS MEMBER	$487.96	To Order

Photo	Part No	Description	Price (each)	Stock
	42120283AA	ISOLATOR	$86.33	To Order

Photo	Part No	Description	Price (each)	Stock
	695515	NUT M8 HEX FLG SLK GRD 8 ZINC PLT	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	697186	SCREW M8 x 20 HEX HEAD GRADE 8.8	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	694597	WASHER M8 x 25 x 3	$3.51	To Order
	1084531	BEAM SIDE MTG BRKT - RH	$96.33	To Order
	86121333AB	HEAT SHIELD - ENGINE MOUNT	$20.77	To Order

Photo	Part No	Description	Price (each)	Stock
	1084532	BEAM SIDE MTG BRKT - LH	$96.33	To Order

Photo	Part No	Description	Price (each)	Stock
	697129	SCREW 5/16 UNF x 7/8 HEX HEAD	$0.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	10120963AB	ASSY MTG BRKT LH ENGINE MOUNTING	10120963AB ASSY MTG BRKT LH ENGINE MOUNTING	$99.50	1
1	10120962AB	ASSY MTG BRKT RH ENGINE MOUNTING	10120962AB ASSY MTG BRKT RH ENGINE MOUNTING	$99.50	1
2	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	$0.75	10
3	707785	ENGINE MOUNTING RUBBER RH M10 STUDS	707785 ENGINE MOUNTING RUBBER RH M10 STUDS	$13.85	1
3	1080142	Engine Mounting Rubber LH	1080142 Engine Mounting Rubber LH	$112.66	1
4	1080143	INSULATOR	1080143 INSULATOR	$42.38	2
5	697628	NUT M10 HEX-DURLOC GRADE 12 BLACK	697628 NUT M10 HEX-DURLOC GRADE 12 BLACK	$4.80	4
6	41123204AD	ASSY CROSSMEMBER GEARBOX MOUNTING	41123204AD ASSY CROSSMEMBER GEARBOX MOUNTING Manual Transmission	$679.81	1
7	10123380AA	REAR ENGINE MOUNTING	10123380AA REAR ENGINE MOUNTING Manual Transmission	$1,395.36	1
8	41123208AB	ASSY BRKT MTG G/BOX	41123208AB ASSY BRKT MTG G/BOX Manual Transmission	$78.11	1
9	699095	SCREW 10x70 TORX	699095 SCREW 10x70 TORX	$2.05	1
10	699096	SCREW M10x20 TORX	699096 SCREW M10x20 TORX Manual Transmission	$1.02	2
11	697186	SCREW M8 x 20 HEX HEAD GRADE 8.8	697186 SCREW M8 x 20 HEX HEAD GRADE 8.8 Manual Transmission	$1.85	6
12	694597	WASHER M8 x 25 x 3	694597 WASHER M8 x 25 x 3 Manual Transmission	$3.51	6
13	695161	SCREW M10 x 35 HEX GRD 8 8 ZINC PLT	695161 SCREW M10 x 35 HEX GRD 8 8 ZINC PLT Manual Transmission	$1.37	2
13	697285	NUT M10 FLANGED	697285 NUT M10 FLANGED Manual Transmission	$0.75	2
14	42121045AA	ASSY CROSS MEMBER	42121045AA ASSY CROSS MEMBER Automatic transmission	$487.96	1
15	42120283AA	ISOLATOR	42120283AA ISOLATOR Automatic transmission	$86.33	2
16	695515	NUT M8 HEX FLG SLK GRD 8 ZINC PLT	695515 NUT M8 HEX FLG SLK GRD 8 ZINC PLT Automatic transmission	$0.84	4
17	697186	SCREW M8 x 20 HEX HEAD GRADE 8.8	697186 SCREW M8 x 20 HEX HEAD GRADE 8.8 Automatic transmission	$1.85	4
18	694597	WASHER M8 x 25 x 3	694597 WASHER M8 x 25 x 3 Automatic transmission	$3.51	4
18	1084531	BEAM SIDE MTG BRKT - RH	1084531 BEAM SIDE MTG BRKT - RH	$96.33	1
18	86121333AB	HEAT SHIELD - ENGINE MOUNT	86121333AB HEAT SHIELD - ENGINE MOUNT	$20.77	2
19	1084532	BEAM SIDE MTG BRKT - LH	1084532 BEAM SIDE MTG BRKT - LH	$96.33	1
20	697129	SCREW 5/16 UNF x 7/8 HEX HEAD	697129 SCREW 5/16 UNF x 7/8 HEX HEAD	$0.89	6
