Oil Pump and Sump of Aston Martin Aston Martin DB7 Vantage

View All

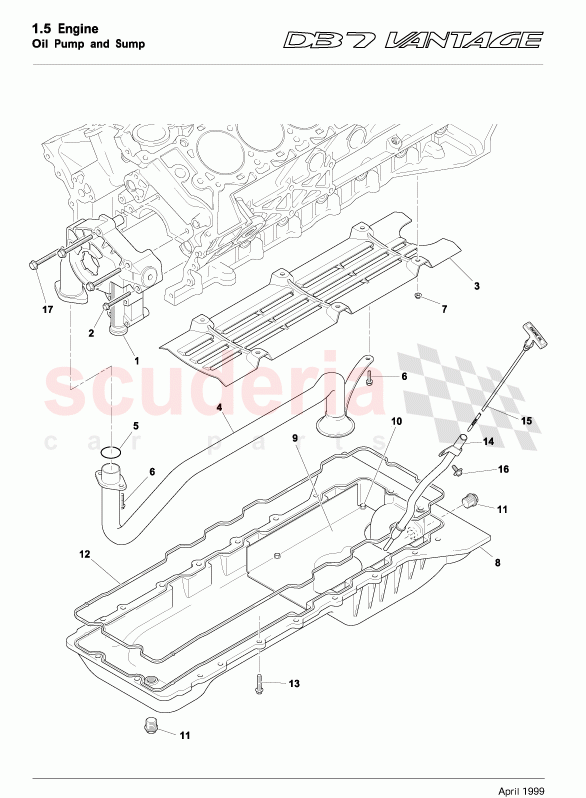

Aston Martin DB7 Vantage - Oil Pump and Sump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R120410703	OIL PUMP KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697744	BOLT-M6 x 72.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91924	WINDAGE TRAY-ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	485369	OIL PICK-UP TUBE ASY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120410073	O RING INLET FLANGE OR35x2.5V175	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	706648	SCREW-M6 x 22 HEX FL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120410217	OIL PAN ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	485378	BAFFLE-OIL PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697747	BOLT-M6 x 20 W/WSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697748	Plug-Oil Pan Drain	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	485092	Engine Sump Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703194	BOLT M8x45 HEX FLNG CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	485093	DIPSTICK TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	485322	DIPSTICK-ENGINE	Enquire	To Order
	485566	DIPSTICK-ENGINE	Enquire	To Order
	97123469AB	LABEL-ENGINE OIL DIPSTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697747	BOLT-M6 x 20 W/WSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697750	BOLT-M8 x 70	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R120410703	OIL PUMP KIT	1R120410703 OIL PUMP KIT	-	1	Enquire
2	697744	BOLT-M6 x 72.5	697744 BOLT-M6 x 72.5 Oil pump to cylinder block	-	1	Enquire
3	91924	WINDAGE TRAY-ENGINE	91924 WINDAGE TRAY-ENGINE	-	1	Enquire
4	485369	OIL PICK-UP TUBE ASY	485369 OIL PICK-UP TUBE ASY	-	1	Enquire
5	1R120410073	O RING INLET FLANGE OR35x2.5V175	1R120410073 O RING INLET FLANGE OR35x2.5V175 Pickup tube to oil pump	-	1	Enquire
6	706648	SCREW-M6 x 22 HEX FL	706648 SCREW-M6 x 22 HEX FL Pickup tube to oil pump	-	3	Enquire
7	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE Windage tray and screen to block	-	6	Enquire
8	1R120410217	OIL PAN ASSY	1R120410217 OIL PAN ASSY	-	1	Enquire
9	485378	BAFFLE-OIL PAN	485378 BAFFLE-OIL PAN	-	1	Enquire
10	697747	BOLT-M6 x 20 W/WSH	697747 BOLT-M6 x 20 W/WSH Baffle to oil pan	-	4	Enquire
11	697748	Plug-Oil Pan Drain	697748 Plug-Oil Pan Drain	-	2	Enquire
12	485092	Engine Sump Gasket	485092 Engine Sump Gasket	-	1	Enquire
13	703194	BOLT M8x45 HEX FLNG CHROME FREE	703194 BOLT M8x45 HEX FLNG CHROME FREE Sump to block	-	20	Enquire
14	485093	DIPSTICK TUBE	485093 DIPSTICK TUBE	-	1	Enquire
15	485322	DIPSTICK-ENGINE	485322 DIPSTICK-ENGINE Up to (V) 302526	-	1	Enquire
15	485566	DIPSTICK-ENGINE	485566 DIPSTICK-ENGINE From (V) 302527	-	1	Enquire
15	97123469AB	LABEL-ENGINE OIL DIPSTICK	97123469AB LABEL-ENGINE OIL DIPSTICK	-	1	Enquire
16	697747	BOLT-M6 x 20 W/WSH	697747 BOLT-M6 x 20 W/WSH	-	1	Enquire
17	697750	BOLT-M8 x 70	697750 BOLT-M8 x 70 Oil pump to cylinder block	-	3	Enquire
