Cylinder Block of Aston Martin Aston Martin DB7 Vantage

View All

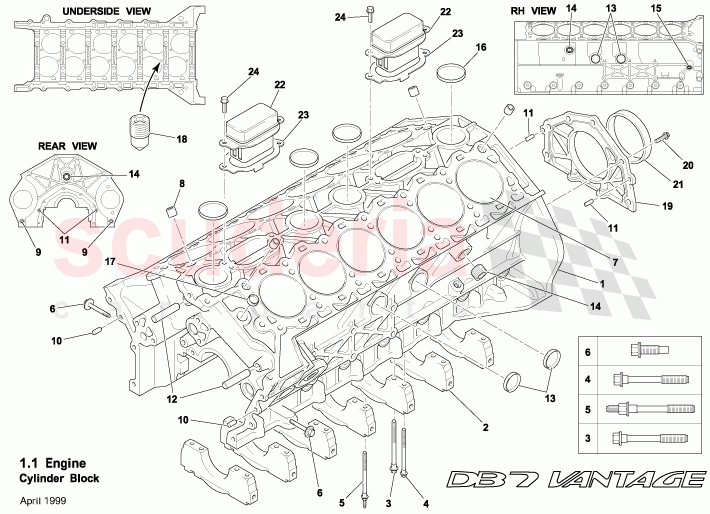

Aston Martin DB7 Vantage - Cylinder Block

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	184989	Cylinder block, machined	Enquire	To Order
	184988	Cylinder block assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184990	CAP-MAIN BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110203	Bolt, M10 x 1.5 x 91	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	185133	Stud Bolt, Bearing Caps	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G430110819	Bolt Main Bearing Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G436055AA	Cylinder Liner, V12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184994	Dowel, 16 x 19	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699134	Dowel, Hollow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184995	Dowel, 8 x 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184995	Dowel, 8 x 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184996	DOWEL-10x49.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184997	Plug 1.26 Cup (32mm)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184998	PLUG-PIPE 3/4x14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186452	Plug, 1/4-18 x 10.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185000	Plug, 52.6 dia cup	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185001	Plug, Cup Expansion	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210537	PISTON OIL SQUIRTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185003	Retainer, Crankshaft Oil Seal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699097	BOLT M6 x 10 x 27.5 HEX HD PILOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

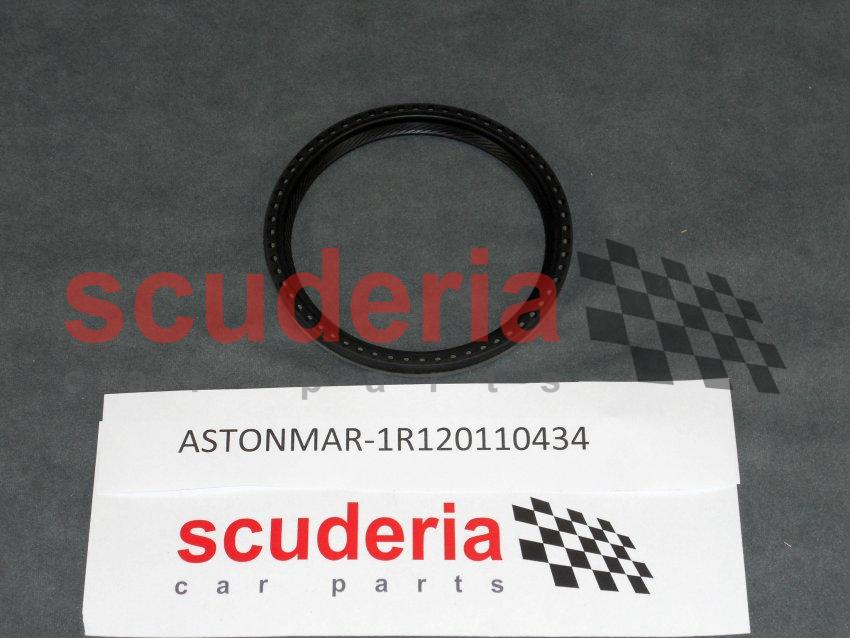

	1R120110434	Seal Crankshaft Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	92048	OIL SEPARATOR ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120110487	Gasket, Oil Separator to Cylinder Block	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697736	BOLT-M6 x 20 FLG HD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	14125027AA	GT ENGINE AS SHIPPED MANUAL ASSEMBLY	14125027AA GT ENGINE AS SHIPPED MANUAL ASSEMBLY Manual Zagato	-	1	Enquire
-	91957	ENGINE ASSY V12 AUTO	91957 ENGINE ASSY V12 AUTO Automatic	-	1	Enquire
-	14121670AC	ENGINE AS SHIPPED - AUTOMATIC	14121670AC ENGINE AS SHIPPED - AUTOMATIC Automatic	-	1	Enquire
-	14125027AA	GT ENGINE AS SHIPPED MANUAL ASSEMBLY	14125027AA GT ENGINE AS SHIPPED MANUAL ASSEMBLY Manual GT	-	1	Enquire
-	91947	ENGINE ASSY V12 MANL	91947 ENGINE ASSY V12 MANL Manual	-	1	Enquire
-	186133	CYL BLOCK ASSY SERVICE LEVEL	186133 CYL BLOCK ASSY SERVICE LEVEL	-	1	Enquire
1	184989	Cylinder block, machined	184989 Cylinder block, machined	-	1	Enquire
1	184988	Cylinder block assembly	184988 Cylinder block assembly	-	1	Enquire
2	184990	CAP-MAIN BEARING	184990 CAP-MAIN BEARING Not supplied separately	-	7	Enquire
3	4G430110203	Bolt, M10 x 1.5 x 91	4G430110203 Bolt, M10 x 1.5 x 91	-	14	Enquire
4	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	4G430110202 Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	-	8	Enquire
5	185133	Stud Bolt, Bearing Caps ARRIVING SOON	185133 Stud Bolt, Bearing Caps ARRIVING SOON	-	6	Enquire
6	4G430110819	Bolt Main Bearing Cap	4G430110819 Bolt Main Bearing Cap	-	14	Enquire
7	7G436055AA	Cylinder Liner, V12	7G436055AA Cylinder Liner, V12	-	12	Enquire
8	184994	Dowel, 16 x 19	184994 Dowel, 16 x 19 Cylinder head/Block	-	4	Enquire
9	699134	Dowel, Hollow	699134 Dowel, Hollow Transmission/block	-	2	Enquire
10	184995	Dowel, 8 x 18	184995 Dowel, 8 x 18 Front cover/block	-	2	Enquire
11	184995	Dowel, 8 x 18	184995 Dowel, 8 x 18 Rear seal retainer/block	-	2	Enquire
12	184996	DOWEL-10x49.25	184996 DOWEL-10x49.25 Chain guide/block	-	2	Enquire
13	184997	Plug 1.26 Cup (32mm)	184997 Plug 1.26 Cup (32mm) Two either side of block	-	4	Enquire
14	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14	-	5	Enquire
15	186452	Plug, 1/4-18 x 10.8	186452 Plug, 1/4-18 x 10.8	-	1	Enquire
16	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup	-	4	Enquire
17	185001	Plug, Cup Expansion	185001 Plug, Cup Expansion	-	1	Enquire
18	1R120210537	PISTON OIL SQUIRTER	1R120210537 PISTON OIL SQUIRTER	-	12	Enquire
19	185003	Retainer, Crankshaft Oil Seal	185003 Retainer, Crankshaft Oil Seal	-	1	Enquire
20	699097	BOLT M6 x 10 x 27.5 HEX HD PILOT	699097 BOLT M6 x 10 x 27.5 HEX HD PILOT	-	6	Enquire
21	1R120110434	Seal Crankshaft Rear	1R120110434 Seal Crankshaft Rear	-	1	Enquire
22	92048	OIL SEPARATOR ASSY	92048 OIL SEPARATOR ASSY	-	2	Enquire
23	1R120110487	Gasket, Oil Separator to Cylinder Block	1R120110487 Gasket, Oil Separator to Cylinder Block	-	2	Enquire
24	697736	BOLT-M6 x 20 FLG HD	697736 BOLT-M6 x 20 FLG HD	-	4	Enquire
