Name: Front Cover, Chains and Sprockets
Rating: 4.1 (1 reviews)

Front Cover, Chains and Sprockets of Aston Martin Aston Martin DB7 Vantage

View All

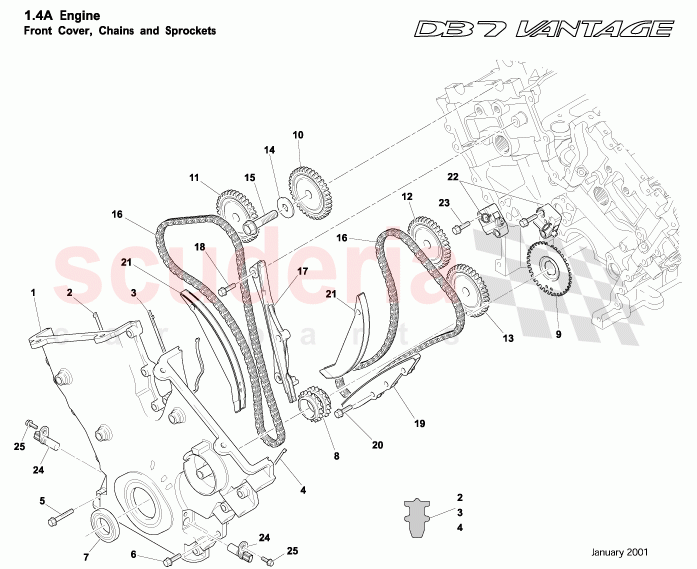

Aston Martin DB7 Vantage - Front Cover, Chains and Sprockets

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	385063	FRONT COVER	$1,051.28	To Order

Photo	Part No	Description	Price (each)	Stock

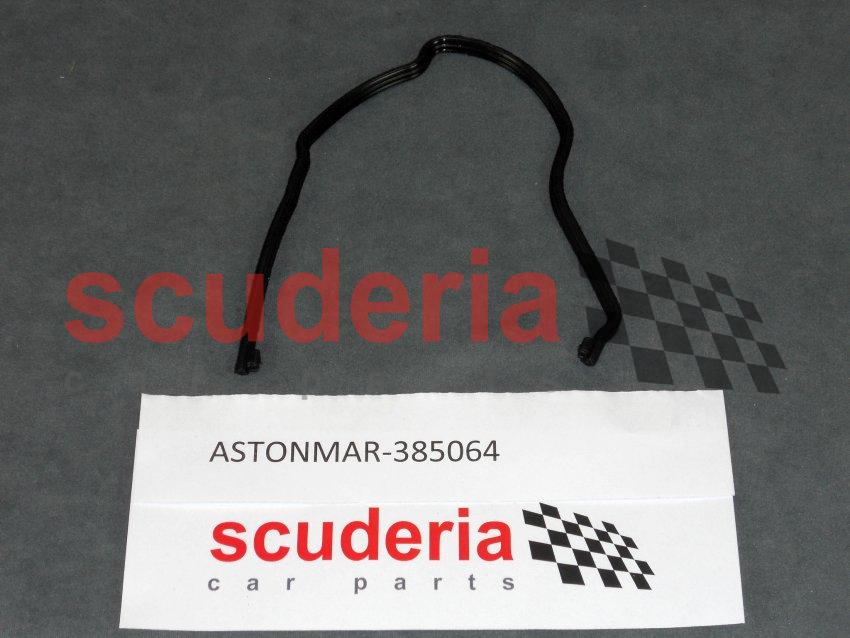

	385064	Gasket Engine Front Cover LH	$110.56	To Order

Photo	Part No	Description	Price (each)	Stock

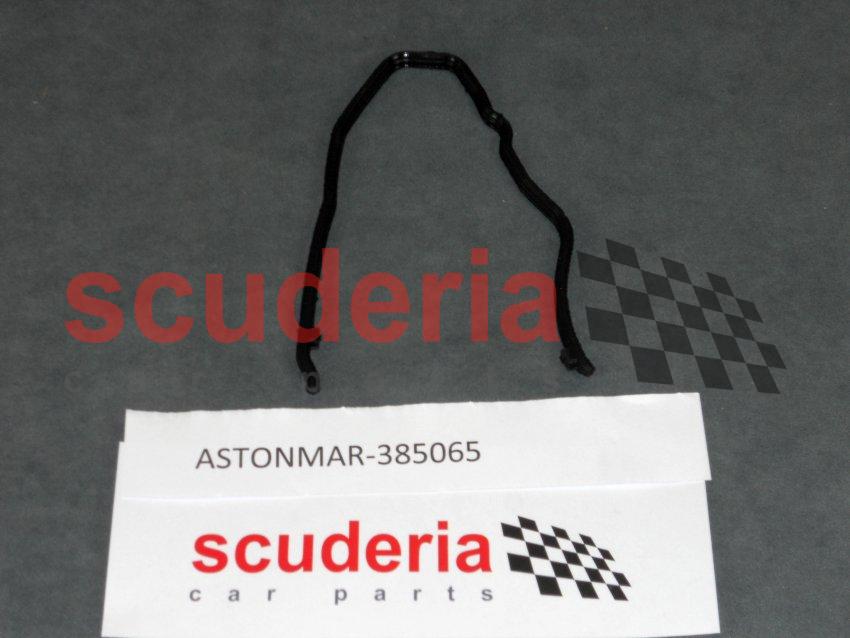

	385065	GASKET FRONT ENGINE COVER CENTRE	$124.00	To Order

Photo	Part No	Description	Price (each)	Stock

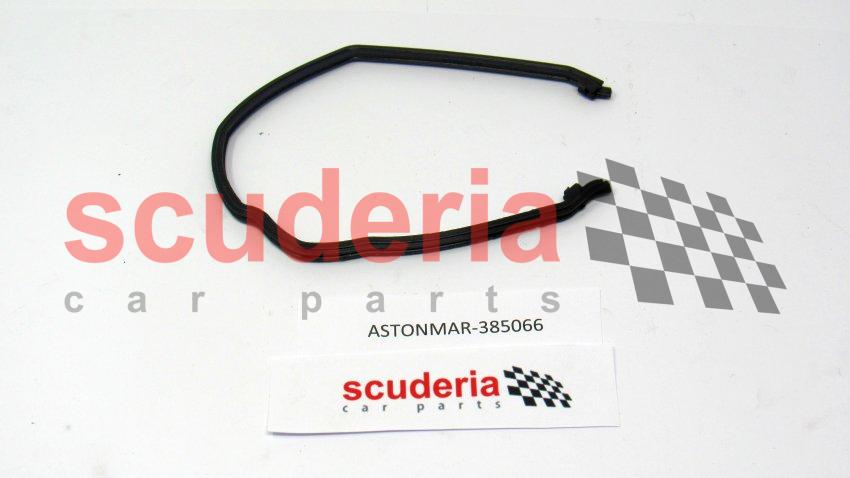

	385066	Gasket Engine Front Cover RH	$124.00	To Order

Photo	Part No	Description	Price (each)	Stock
	697737	BOLT & WASHER M8 M8 X 47.5 HEX FLANGE PILOT GRD 8.8 BLACK	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	697738	BOLT &WASHER M8x1.25 x39	$12.27	To Order

Photo	Part No	Description	Price (each)	Stock

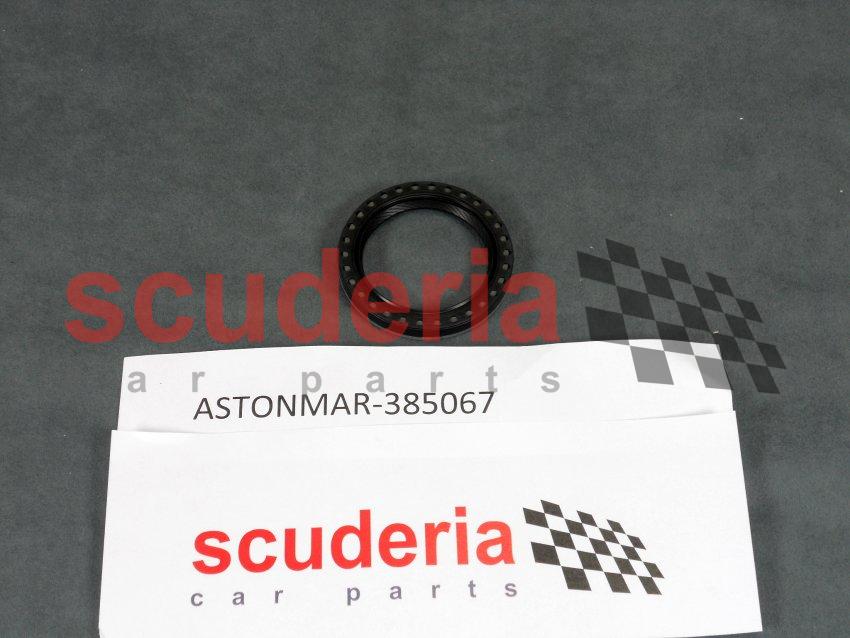

	385067	Oil Seal - Crankshaft Front	$33.41	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T	$68.28	To Order

Photo	Part No	Description	Price (each)	Stock
	785069	SENSOR RING-IGNPULSE	$24.84	To Order

Photo	Part No	Description	Price (each)	Stock
	785070	Sprocket, camshaft, intake, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785071	Sprocket, camshaft, exhaust, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785072	Sprocket, camshaft, intake, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785073	Sprocket, camshaft, exhaust, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785074	CAM SPROCKET WASHER	$17.65	To Order

Photo	Part No	Description	Price (each)	Stock
	697739	BOLT-M12 x 52.5	$4.53	To Order

Photo	Part No	Description	Price (each)	Stock

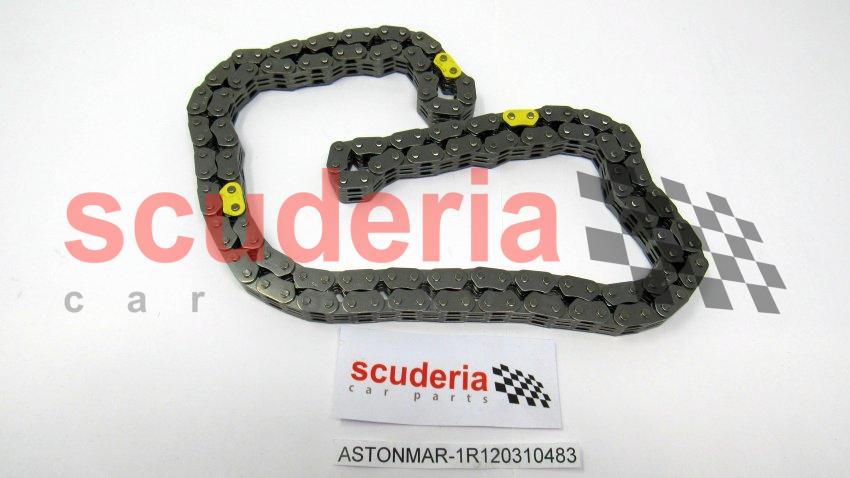

	1R120310483	Chain, Timing	$114.09	To Order

Photo	Part No	Description	Price (each)	Stock

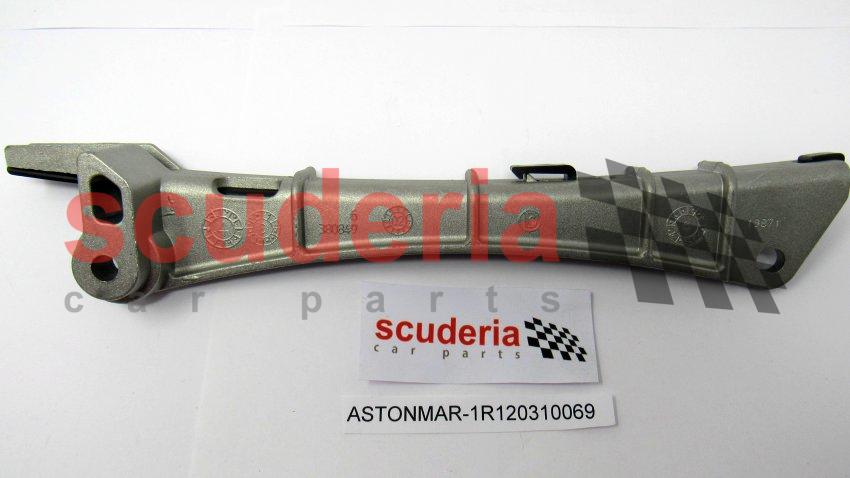

	1R120310069	Guide, Timing Chain, RH	$75.01	To Order

Photo	Part No	Description	Price (each)	Stock
	697749	BOLT-M8 x 32 FLG	$15.92	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310070	Guide, Timing Chain, LH	$75.01	To Order

Photo	Part No	Description	Price (each)	Stock
	697741	BOLT-M8 x 49.3 FLG	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock

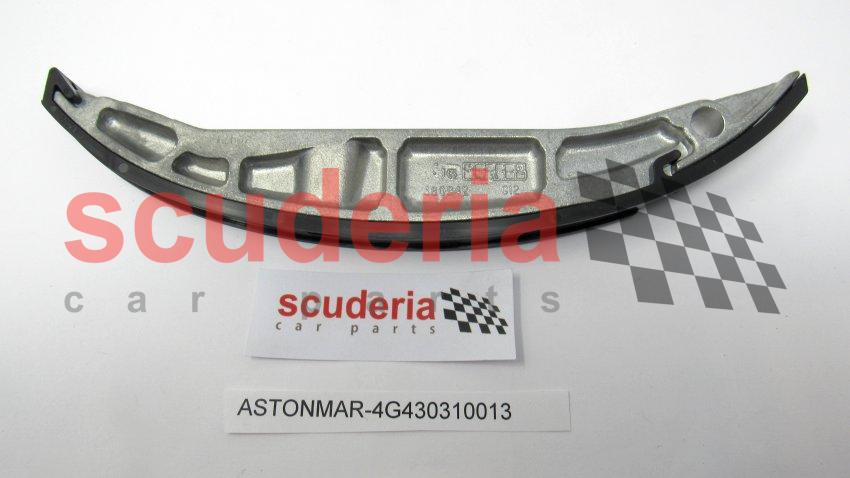

	4G430310013	Arm Assembly, Timing Chain Tensioner	$58.53	To Order

Photo	Part No	Description	Price (each)	Stock
	385079	T/CHAIN TENSIONER AY	$240.87	To Order

Photo	Part No	Description	Price (each)	Stock
	697741	BOLT-M8 x 49.3 FLG	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	3985756	SENSOR-CRANK TIMING	$20.77	To Order

Photo	Part No	Description	Price (each)	Stock
	697736	BOLT-M6 x 20 FLG HD	$0.57	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	385063	FRONT COVER	385063 FRONT COVER	$1,051.28	1
2	385064	Gasket Engine Front Cover LH	385064 Gasket Engine Front Cover LH	$110.56	1
3	385065	GASKET FRONT ENGINE COVER CENTRE	385065 GASKET FRONT ENGINE COVER CENTRE	$124.00	1
4	385066	Gasket Engine Front Cover RH	385066 Gasket Engine Front Cover RH	$124.00	1
5	697737	BOLT & WASHER M8 M8 X 47.5 HEX FLANGE PILOT GRD 8.8 BLACK	697737 BOLT & WASHER M8 M8 X 47.5 HEX FLANGE PILOT GRD 8.8 BLACK Front cover to cylinder block	$2.05	14
6	697738	BOLT &WASHER M8x1.25 x39	697738 BOLT &WASHER M8x1.25 x39	$12.27	1
7	385067	Oil Seal - Crankshaft Front	385067 Oil Seal - Crankshaft Front	$33.41	1
8	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T	4G430210012 CRANKSHAFT SPROCKET-DOUBLE - 21T	$68.28	1
9	785069	SENSOR RING-IGNPULSE	785069 SENSOR RING-IGNPULSE	$24.84	1
10	785070	Sprocket, camshaft, intake, RH	785070 Sprocket, camshaft, intake, RH	-	1	Enquire
11	785071	Sprocket, camshaft, exhaust, RH	785071 Sprocket, camshaft, exhaust, RH	-	1	Enquire
12	785072	Sprocket, camshaft, intake, LH	785072 Sprocket, camshaft, intake, LH	-	1	Enquire
13	785073	Sprocket, camshaft, exhaust, LH	785073 Sprocket, camshaft, exhaust, LH	-	1	Enquire
14	785074	CAM SPROCKET WASHER	785074 CAM SPROCKET WASHER	$17.65	4
15	697739	BOLT-M12 x 52.5	697739 BOLT-M12 x 52.5	$4.53	4
16	1R120310483	Chain, Timing	1R120310483 Chain, Timing	$114.09	2
17	1R120310069	Guide, Timing Chain, RH	1R120310069 Guide, Timing Chain, RH	$75.01	1
18	697749	BOLT-M8 x 32 FLG	697749 BOLT-M8 x 32 FLG Chain guide, RH attach	$15.92	2
19	1R120310070	Guide, Timing Chain, LH	1R120310070 Guide, Timing Chain, LH	$75.01	1
20	697741	BOLT-M8 x 49.3 FLG	697741 BOLT-M8 x 49.3 FLG Chain guide, LH attach	$0.94	2
21	4G430310013	Arm Assembly, Timing Chain Tensioner	4G430310013 Arm Assembly, Timing Chain Tensioner	$58.53	2
22	385079	T/CHAIN TENSIONER AY	385079 T/CHAIN TENSIONER AY	$240.87	2
23	697741	BOLT-M8 x 49.3 FLG	697741 BOLT-M8 x 49.3 FLG Tensioner assy attach	$0.94	4
24	3985756	SENSOR-CRANK TIMING	3985756 SENSOR-CRANK TIMING	$20.77	2
25	697736	BOLT-M6 x 20 FLG HD	697736 BOLT-M6 x 20 FLG HD Sensor to front cover	$0.57	2
