Crankshafts, Pistons and Rods of Aston Martin Aston Martin DB7 Vantage

View All

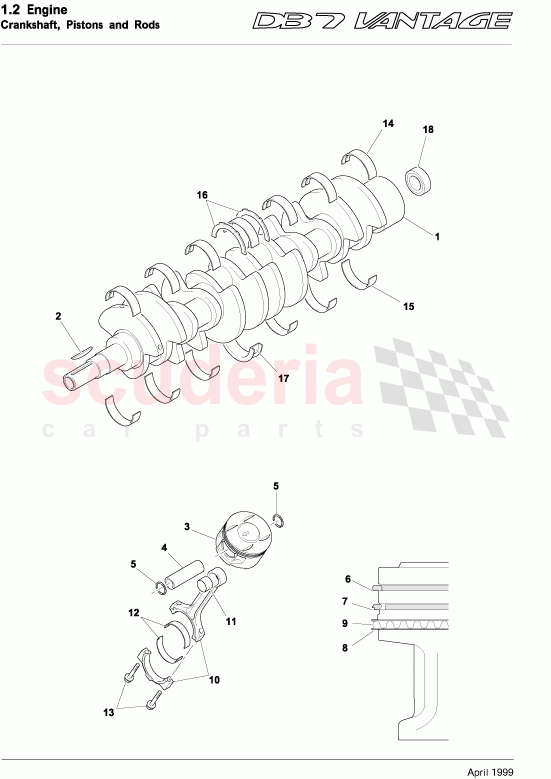

Aston Martin DB7 Vantage - Crankshafts, Pistons and Rods

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	285007	CRANKSHAFT	Enquire	To Order
	1R120210057	CRANKSHAFT-MACHINED	Enquire	To Order
	285859	CRANKSHAFT-AUTO ENGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285008	Key, Crankshaft, 4.76 x 53.5	Enquire	To Order
	285317	Piston and connecting rod assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285319	PISTON-GRADE 1	Enquire	To Order
	285318	PISTON-GRADE 2	Enquire	To Order
	285320	PISTON-GRADE 3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210955	PIN-PISTON (SINGLE)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210448	Retainer, Piston Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210060	Piston Ring Compression Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285013	Piston Ring Compression Lower Orange/Yellow Ring	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	285014	Segment, Piston Oil Control Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285015	Spacer, Piston Oil Control Segment	Enquire	To Order
	ED236200AB	ROD ASY CONN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285134	Connecting rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210968	BUSH - CONN ROD V12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6E5E6211AB	Bearing, Connecting Rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285018	Bolt, Connecting Rod	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4R3E6333AA	Bearing Crankshaft Main Upper Grade 1	Enquire	To Order
	4R3E6333BA	Bearing Crankshaft Main Upper Grade 2	Enquire	To Order
	4R3E6333CA	Bearing Crankshaft Main Upper Grade 3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285020	BEARING CRANKSHAFT MAIN LOWER	Enquire	To Order
	4R3E6A338BA	Bearing, Crankshaft, Main, Lower (.012)	Enquire	To Order
	4R3E6A338CA	Bearing, Crankshaft, Main, Lower (.014)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BR3E6A341BA	Washer, Crankshaft Main Thrust Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R3E6A339AA	Washer CrankShaft MN Thrust Lower	Enquire	To Order
	4R3E6A339BA	Washer Crankshaft Main Thrust Lower	Enquire	To Order
	4R3E6A339CA	BEARING CRANKSHAFT MN THRUST LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2122009AA	BEARING ASSY PILOT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	285007	CRANKSHAFT	285007 CRANKSHAFT Manual Up to (V) 302526	-	1	Enquire
1	1R120210057	CRANKSHAFT-MACHINED	1R120210057 CRANKSHAFT-MACHINED Manual From (V) 302527	-	1	Enquire
1	285859	CRANKSHAFT-AUTO ENGS	285859 CRANKSHAFT-AUTO ENGS Auto	-	1	Enquire
2	285008	Key, Crankshaft, 4.76 x 53.5	285008 Key, Crankshaft, 4.76 x 53.5	-	1	Enquire
2	285317	Piston and connecting rod assembly	285317 Piston and connecting rod assembly	-	12	Enquire
3	285319	PISTON-GRADE 1	285319 PISTON-GRADE 1	-	12	Enquire
3	285318	PISTON-GRADE 2	285318 PISTON-GRADE 2	-	12	Enquire
3	285320	PISTON-GRADE 3	285320 PISTON-GRADE 3	-	12	Enquire
4	4G430210955	PIN-PISTON (SINGLE)	4G430210955 PIN-PISTON (SINGLE)	-	12	Enquire
5	1R120210448	Retainer, Piston Pin	1R120210448 Retainer, Piston Pin	-	24	Enquire
6	1R120210060	Piston Ring Compression Upper	1R120210060 Piston Ring Compression Upper	-	12	Enquire
7	285013	Piston Ring Compression Lower Orange/Yellow Ring ARRIVING SOON	285013 Piston Ring Compression Lower Orange/Yellow Ring ARRIVING SOON	-	12	Enquire
8	285014	Segment, Piston Oil Control Ring	285014 Segment, Piston Oil Control Ring	-	24	Enquire
9	285015	Spacer, Piston Oil Control Segment	285015 Spacer, Piston Oil Control Segment	-	12	Enquire
9	ED236200AB	ROD ASY CONN	ED236200AB ROD ASY CONN	-	12	Enquire
10	285134	Connecting rod	285134 Connecting rod	-	12	Enquire
11	4G430210968	BUSH - CONN ROD V12	4G430210968 BUSH - CONN ROD V12	-	12	Enquire
12	6E5E6211AB	Bearing, Connecting Rod	6E5E6211AB Bearing, Connecting Rod	-	24	Enquire
13	285018	Bolt, Connecting Rod ARRIVING SOON	285018 Bolt, Connecting Rod ARRIVING SOON	-	24	Enquire
14	4R3E6333AA	Bearing Crankshaft Main Upper Grade 1	4R3E6333AA Bearing Crankshaft Main Upper Grade 1	-	7	Enquire
14	4R3E6333BA	Bearing Crankshaft Main Upper Grade 2	4R3E6333BA Bearing Crankshaft Main Upper Grade 2	-	7	Enquire
14	4R3E6333CA	Bearing Crankshaft Main Upper Grade 3	4R3E6333CA Bearing Crankshaft Main Upper Grade 3	-	7	Enquire
15	285020	BEARING CRANKSHAFT MAIN LOWER	285020 BEARING CRANKSHAFT MAIN LOWER	-	7	Enquire
15	4R3E6A338BA	Bearing, Crankshaft, Main, Lower (.012)	4R3E6A338BA Bearing, Crankshaft, Main, Lower (.012)	-	7	Enquire
15	4R3E6A338CA	Bearing, Crankshaft, Main, Lower (.014)	4R3E6A338CA Bearing, Crankshaft, Main, Lower (.014)	-	7	Enquire
16	BR3E6A341BA	Washer, Crankshaft Main Thrust Upper	BR3E6A341BA Washer, Crankshaft Main Thrust Upper	-	2	Enquire
17	4R3E6A339AA	Washer CrankShaft MN Thrust Lower	4R3E6A339AA Washer CrankShaft MN Thrust Lower	-	1	Enquire
17	4R3E6A339BA	Washer Crankshaft Main Thrust Lower	4R3E6A339BA Washer Crankshaft Main Thrust Lower	-	1	Enquire
17	4R3E6A339CA	BEARING CRANKSHAFT MN THRUST LOWER	4R3E6A339CA BEARING CRANKSHAFT MN THRUST LOWER	-	1	Enquire
18	2122009AA	BEARING ASSY PILOT	2122009AA BEARING ASSY PILOT Up to (V) 302526	-	1	Enquire
