Pedal Gear - Accelerator RHD of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Pedal Gear - Accelerator RHD

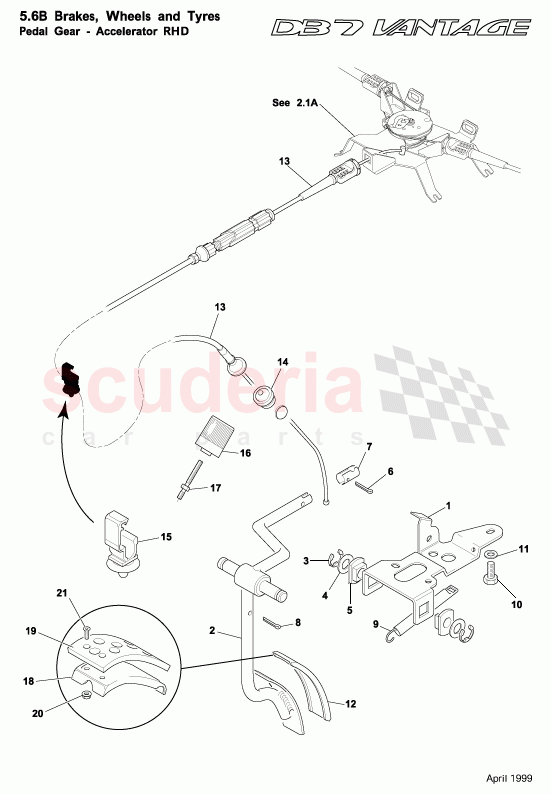

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	29129826AA	Pivot bracket, accelerator pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2985347	ACCELERATOR PEDAL ASSY RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981797	BEARING CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4281162	WASHER 13/32 ID x 13/16 OD x 20 SWG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981284	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699104	SPLIT-PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981279	RETAINER-ACCELERATOR CABLE RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697357	SPLIT-PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981281	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697298	SCREW 1/4 UNF x 5/16 HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697359	WASHER PLAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981278	ACCELERATOR PEDAL FOOT PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8122182AB	ASSY CABLE - PEDAL ACCELERATOR RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9085219	MODULATOR RUBBER MTG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698948	CLIP - ACCELERATOR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785423	SWITCH-KICKDOWN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781286	STUD-KICKDOWN SWITCH MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2985621	FOOT PAD-ACC.PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	29124007AA	ACCELERATOR PEDAL PAD - ALUMINIUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699883	NUT M3 HEXAGON CONNTECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699890	SCREW M3 SOCKET HEAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	2985347	ACCELERATOR PEDAL ASSY RHD	2985347 ACCELERATOR PEDAL ASSY RHD RHD	-	1	Enquire
1	29129826AA	Pivot bracket, accelerator pedal	29129826AA Pivot bracket, accelerator pedal RHD	-	1	Enquire
2	2985347	ACCELERATOR PEDAL ASSY RHD	2985347 ACCELERATOR PEDAL ASSY RHD RHD	-	1	Enquire
3	2981797	BEARING CIRCLIP	2981797 BEARING CIRCLIP	-	2	Enquire
4	4281162	WASHER 13/32 ID x 13/16 OD x 20 SWG	4281162 WASHER 13/32 ID x 13/16 OD x 20 SWG RHD	-	1	Enquire
5	2981284	BEARING	2981284 BEARING	-	2	Enquire
6	699104	SPLIT-PIN	699104 SPLIT-PIN RHD	-	1	Enquire
7	2981279	RETAINER-ACCELERATOR CABLE RHD	2981279 RETAINER-ACCELERATOR CABLE RHD RHD	-	1	Enquire
8	697357	SPLIT-PIN	697357 SPLIT-PIN RHD	-	1	Enquire
9	2981281	SPRING	2981281 SPRING RHD	-	1	Enquire
10	697298	SCREW 1/4 UNF x 5/16 HEX HEAD	697298 SCREW 1/4 UNF x 5/16 HEX HEAD RHD	-	3	Enquire
11	697359	WASHER PLAIN	697359 WASHER PLAIN RHD	-	3	Enquire
12	2981278	ACCELERATOR PEDAL FOOT PAD	2981278 ACCELERATOR PEDAL FOOT PAD	-	1	Enquire
13	8122182AB	ASSY CABLE - PEDAL ACCELERATOR RHD	8122182AB ASSY CABLE - PEDAL ACCELERATOR RHD RHD	-	1	Enquire
14	9085219	MODULATOR RUBBER MTG	9085219 MODULATOR RUBBER MTG RHD	-	1	Enquire
15	698948	CLIP - ACCELERATOR CABLE	698948 CLIP - ACCELERATOR CABLE	-	1	Enquire
16	3785423	SWITCH-KICKDOWN	3785423 SWITCH-KICKDOWN Auto Only	-	1	Enquire
17	3781286	STUD-KICKDOWN SWITCH MOUNTING	3781286 STUD-KICKDOWN SWITCH MOUNTING Auto Only	-	1	Enquire
18	2985621	FOOT PAD-ACC.PEDAL	2985621 FOOT PAD-ACC.PEDAL Optional From (V) 302253 Std on GT	-	1	Enquire
19	29124007AA	ACCELERATOR PEDAL PAD - ALUMINIUM	29124007AA ACCELERATOR PEDAL PAD - ALUMINIUM Optional From (V) 302253 Std on GT	-	1	Enquire
20	699883	NUT M3 HEXAGON CONNTECTING	699883 NUT M3 HEXAGON CONNTECTING Optional From (V) 302253 Std on GT	-	1	Enquire
21	699890	SCREW M3 SOCKET HEAD	699890 SCREW M3 SOCKET HEAD Optional From (V) 302253 Std on GT	-	3	Enquire
