Aston Martin DB7 Vantage - Rear Brakes

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
28125037AAPK ASSY GROOVED DISC(2) $956.72 To Order
30122656AA ASSY DRUM PARKBRAKE RH $600.14 To Order
30122657AA Drum, parking brake, LH GT upgrade $454.39 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
28122157AC ASSY CALIPER REAR LH $834.82 To Order
28122156AC ASSY CALIPER REAR RH $834.82 To Order
28122157AD ASSY CALIPER REAR LH $834.82 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
2885455 REAR BRAKE PAD SET $407.87 To Order
Photo Part No Description Price (each) Stock
2885759PK Brake Pads Rear $738.97 To Order
2885455 REAR BRAKE PAD SET $407.87 To Order
2885455 REAR BRAKE PAD SET $407.87 To Order
Photo Part No Description Price (each) Stock
697797 BOLT M10 x 28 HEX FLANGE HEAD GRD 12.9 PATCH $38.15 To Order
2885946 SCREW M10x1.5x32 HEX FLG HD $17.49 To Order
Photo Part No Description Price (each) Stock
33122160AB ASSY BRAKE HOSE REAR $137.69 To Order
Photo Part No Description Price (each) Stock
3381080 NUT M10 x 1 $1.07 To Order
Photo Part No Description Price (each) Stock
697253 WASHER M10 S/PROOF INT $0.46 To Order
Photo Part No Description Price (each) Stock
33120976AA Brake pipe, across axle to RH RR flexi $15.87 To Order
3383932 BRAKE PIPE CON TEE TO LHRF $15.65 To Order
33120712AB BRAKE PIPE RHD U/FLOOR TO LH REAR $21.91 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
2885456 CLIP & PIN SET REAR CALIPER $50.56 To Order
2885454 BLEED SCREW &CAP SET $7.76 To Order
2885457 BOOT SET (2) 28 REAR CALIPER $11.45 To Order
...and 3 more part variants. See table on right for more details.
View All

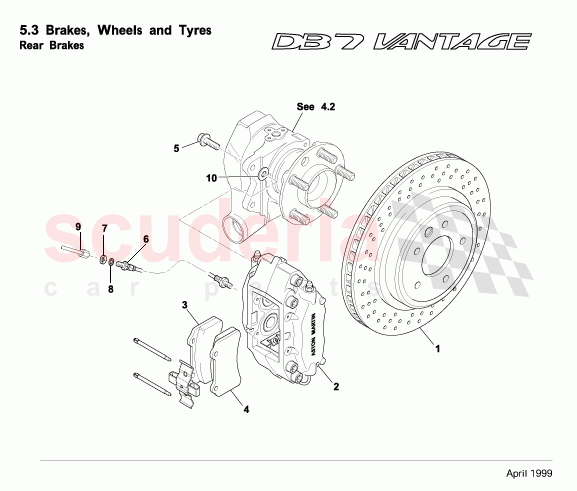

Rear Brakes of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 28125037AAPK
ASSY GROOVED DISC(2)
Optional, standard on GT 		$956.72 2
1 30122656AA
ASSY DRUM PARKBRAKE RH
See section 5.4 		$600.14 2
1 30122657AA
Drum, parking brake, LH GT upgrade
See section 5.4 		$454.39 2
1 30125246AA
ASSY DRUM PARKBRAKE RH - GT
See section 5.4 		$635.83 2
1 30125245AA
ASSY DRUM PARKBRAKE LH - GT
See section 5.4 		$635.83 2

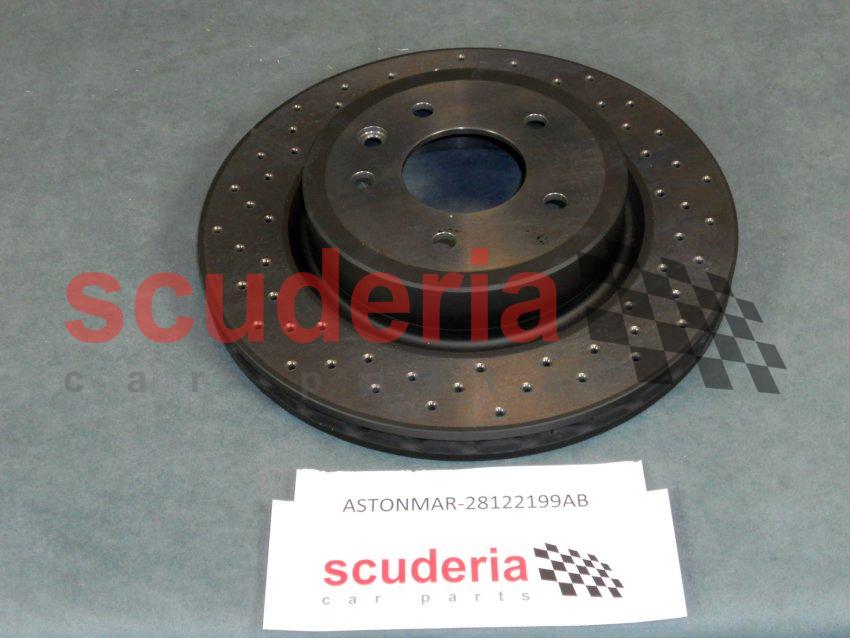

1 28122199AB
Brake Disc Rear Ventilated 		$464.05 2
2 28122157AC
ASSY CALIPER REAR LH
From (V) 300832 Up to (V) 301457 		$834.82 1
2 28122156AC
ASSY CALIPER REAR RH
From (V) 300832 Up to (V) 301457 		$834.82 1
2 28122157AD
ASSY CALIPER REAR LH
From (V) 301458 Up to (V) 402884 		$834.82 1
2 28122156AD
ASSY CALIPER REAR RH
From (V) 301458 Up to (V) 402884 		$834.82 1
2 28122157AB
ASSY CALIPER REAR LH
Up to (V) 300831 		$644.69 1
2 28122156AB
ASSY CALIPER REAR RH
Up to (V) 300831 		$644.69 1
2 2886591
BRAKE CALIPER RR LH SILVER ONE PIECE BRAKE PAD TEXTAR
From (V) 402885 		$429.25 1
2 2886590
BRAKE CALIPER RR RH SILVER ONE PIECE BRAKE PAD TEXTAR
From (V) 402885 		$429.25 1
2 2886583
BRAKE CALIPER RR LH BLACK - ONE PIECE
From (V) 402885 		$429.25 1
2 2886582
BRAKE CALIPER RR RH BLACK - ONE PIECE
From (V) 402885 		$429.25 1
2 2886587
BRAKE CALIPER RR LH GREY - ONE PIECE
From (V) 402885 		$429.25 1
2 2886589
BRAKE CALIPER RR LH GOLD - ONE PIECE
From (V) 402885 		$429.25 1
2 2886585
BRAKE CALIPER RR LH RED - ONE PIECE
From (V) 402885 		$429.25 1
2 2886586
BRAKE CALIPER RR RH GREY - ONE PIECE
From (V) 402885 		$429.25 1
2 2886588
BRAKE CALIPER RR RH GOLD - ONE PIECE
From (V) 402885 		$429.25 1
2 2886584
BRAKE CALIPER RR RH RED - ONE PIECE
From (V) 402885 		$429.25 1
3 2885455
REAR BRAKE PAD SET
Up to (V) 301457 		$407.87 2

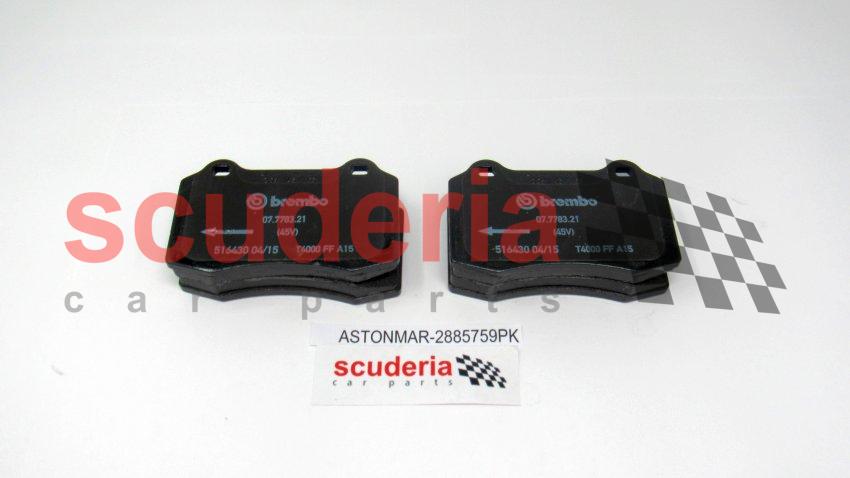

4 2885759PK
Brake Pads Rear
From (V) 301458 May be used, in conjunction with front pad set 28-85758, to replace early/existing pads - BUT MUST BE FITTED IN VEHICLE SETS 		$738.97 1
4 2885455
REAR BRAKE PAD SET
Up to (V) 301457 		$407.87 1
4 2885455
REAR BRAKE PAD SET
Up to (V) 301457 		$407.87 2
5 697797
BOLT M10 x 28 HEX FLANGE HEAD GRD 12.9 PATCH
Up to (V) 402884 		$38.15 4
5 2885946
SCREW M10x1.5x32 HEX FLG HD
From (V) 402885 		$17.49 4
6 33122160AB
ASSY BRAKE HOSE REAR 		$137.69 2
7 3381080
NUT M10 x 1 		$1.07 2
8 697253
WASHER M10 S/PROOF INT 		$0.46 2
9 33120976AA
Brake pipe, across axle to RH RR flexi
RHD 		$15.87 1
9 3383932
BRAKE PIPE CON TEE TO LHRF
LHD 		$15.65 1
9 33120712AB
BRAKE PIPE RHD U/FLOOR TO LH REAR
RHD 		$21.91 1
9 33120713AB
BRAKE PIPE LHD U/FLOOR TO LH REAR
LHD 		$21.68 1
9 33120714AB
BRAKE PIPE RHD U/FLOOR TO RH REAR
RHD 		$53.50 1
9 33120715AB
BRAKE PIPE LHD U/FLOOR TO RH REAR
LHD 		$22.59 1
10 2885456
CLIP & PIN SET REAR CALIPER 		$50.56 2
10 2885454
BLEED SCREW &CAP SET 		$7.76 2
10 2885457
BOOT SET (2) 28 REAR CALIPER 		$11.45 2
10 2885458
BOOT SET (2) 30 REAR CALIPER 		$11.45 2
10 2380898
WASHER 15/32inIDx 7/8inODx 1/32in thk 		$2.41 -
10 2880270
SHIM 		$8.25 -
