Pedal Gear - Auto Brake Assy of Aston Martin Aston Martin DB7 Vantage

View All

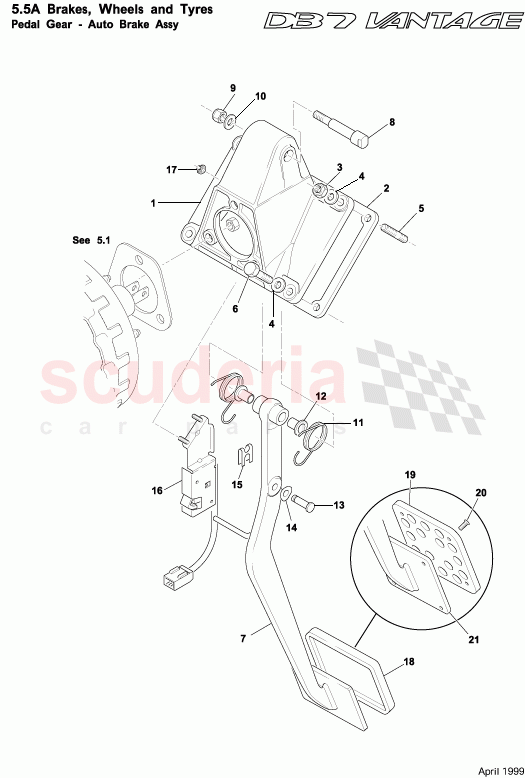

Aston Martin DB7 Vantage - Pedal Gear - Auto Brake Assy

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	2984102	PEDAL HOUSING-AUTO PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	29123286AA	GASKET - PEDAL HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697128	NUT 5/16 UNF NYLOC THIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697126	WASHER 5/16 PLAIN ZINC PLATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2580996	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	530508	SCREW 5/16 UNF x 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	29121021AA	ASSY COMPLETE BRAKE PEDAL LHD	Enquire	To Order
	2984105	ASSY BRAKE PEDAL-RHD AUTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981255	PIVOT PIN- BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697291	NUT M10 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697258	WASHER M10 PLAIN FORM A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981257	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981271	BUSH-PEDAL PIVOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2984879	Pin, Joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703273	WASHER WAVE SPRING M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3327328AA	Clip, Safety, Nom Shaft, 5/16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785782	Switch-Stop Lamp	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981244	PEDAL PAD-RUBBER BRAKE-AUTO	Enquire	To Order
	29124026AA	RUBBER - BRAKE PEDAL PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	29124006AB	BRAKE PEDAL PAD AUTO ALUMINIUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699890	SCREW M3 SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	29124097AA	Brake pedal assy, drilled	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	2984102	PEDAL HOUSING-AUTO PLASTIC	2984102 PEDAL HOUSING-AUTO PLASTIC Auto	-	1	Enquire
2	29123286AA	GASKET - PEDAL HOUSING	29123286AA GASKET - PEDAL HOUSING	-	1	Enquire
3	697128	NUT 5/16 UNF NYLOC THIN	697128 NUT 5/16 UNF NYLOC THIN Pedal box lower mounting	-	2	Enquire
4	697126	WASHER 5/16 PLAIN ZINC PLATED	697126 WASHER 5/16 PLAIN ZINC PLATED	-	4	Enquire
5	2580996	STUD	2580996 STUD	-	2	Enquire
6	530508	SCREW 5/16 UNF x 1	530508 SCREW 5/16 UNF x 1	-	2	Enquire
7	29121021AA	ASSY COMPLETE BRAKE PEDAL LHD	29121021AA ASSY COMPLETE BRAKE PEDAL LHD LHD Auto	-	1	Enquire
7	2984105	ASSY BRAKE PEDAL-RHD AUTO	2984105 ASSY BRAKE PEDAL-RHD AUTO RHD Auto	-	1	Enquire
8	2981255	PIVOT PIN- BRAKE PEDAL	2981255 PIVOT PIN- BRAKE PEDAL	-	1	Enquire
9	697291	NUT M10 NYLOC	697291 NUT M10 NYLOC	-	4	Enquire
10	697258	WASHER M10 PLAIN FORM A	697258 WASHER M10 PLAIN FORM A	-	1	Enquire
11	2981257	SPRING	2981257 SPRING	-	2	Enquire
12	2981271	BUSH-PEDAL PIVOT	2981271 BUSH-PEDAL PIVOT	-	2	Enquire
13	2984879	Pin, Joint	2984879 Pin, Joint	-	1	Enquire
14	703273	WASHER WAVE SPRING M8	703273 WASHER WAVE SPRING M8	-	1	Enquire
15	6G3327328AA	Clip, Safety, Nom Shaft, 5/16	6G3327328AA Clip, Safety, Nom Shaft, 5/16 Auto	-	1	Enquire
16	3785782	Switch-Stop Lamp ARRIVING SOON	3785782 Switch-Stop Lamp ARRIVING SOON	-	1	Enquire
17	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	2	Enquire
18	2981244	PEDAL PAD-RUBBER BRAKE-AUTO	2981244 PEDAL PAD-RUBBER BRAKE-AUTO Auto Up to (V) 302252	-	1	Enquire
18	29124026AA	RUBBER - BRAKE PEDAL PAD	29124026AA RUBBER - BRAKE PEDAL PAD Auto From (V) 302253	-	1	Enquire
19	29124006AB	BRAKE PEDAL PAD AUTO ALUMINIUM	29124006AB BRAKE PEDAL PAD AUTO ALUMINIUM Optional From (V) 302253 Std on GT	-	1	Enquire
20	699890	SCREW M3 SOCKET HEAD	699890 SCREW M3 SOCKET HEAD Optional From (V) 302253 Std on GT	-	4	Enquire
21	29124097AA	Brake pedal assy, drilled	29124097AA Brake pedal assy, drilled Optional From (V) 302253 Std on GT	-	1	Enquire
