Manual Pedal Gear - Brake and Clutch of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Manual Pedal Gear - Brake and Clutch

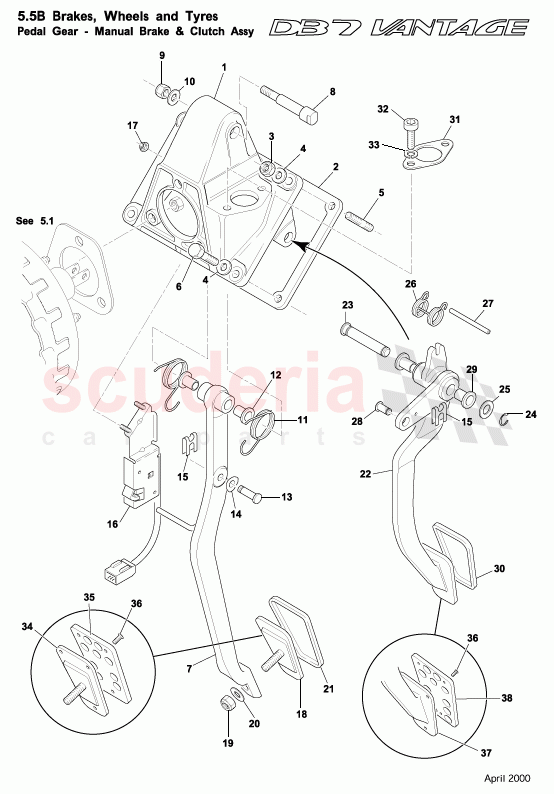

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	2990330	Housing - pedal	Enquire	To Order
	2990331	Housing - pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	29123286AA	GASKET - PEDAL HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697128	NUT 5/16 UNF NYLOC THIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697126	WASHER 5/16 PLAIN ZINC PLATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2580996	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	530508	SCREW 5/16 UNF x 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	29121022AA	ASSY COMPLETE BRAKE PEDAL LHD	Enquire	To Order
	2984103	ASSY BRAKE PEDAL-RHD MANUAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981255	PIVOT PIN- BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697291	NUT M10 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697258	WASHER M10 PLAIN FORM A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981257	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981272	Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2984879	Pin, Joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703273	WASHER WAVE SPRING M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3327328AA	Clip, Safety, Nom Shaft, 5/16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785782	Switch-Stop Lamp	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981241	ASSY PEDAL PAD- MANUAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697128	NUT 5/16 UNF NYLOC THIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697126	WASHER 5/16 PLAIN ZINC PLATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981243	PEDAL PAD-RUBBER- BRAKE-MANUAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	29124225AA	CLUTCH PEDAL ASSY LHD DRILLED PAD	Enquire	To Order
	2981251	ASSY-CLUTCH PEDAL COMPLETE RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981250	PIN-CLUTCH PEDAL PIVOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981263	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697126	WASHER 5/16 PLAIN ZINC PLATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981262	CLUTCH SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981249	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981266	PIN-5/16inDIA SHANKx 1/2in LONG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981271	BUSH-PEDAL PIVOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981242	PEDAL RUBBER-CLUTCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981240	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697293	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697131	WASHER 5/16 SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	29124099AA	MANUAL BRAKE PEDAL PAD - DRILLED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	29124008AB	BRAKE PEDAL PAD MANUAL - ALUMINIUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699890	SCREW M3 SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	29124100AA	Clutch pedal, drilled RHD	Enquire	To Order
	29124225AA	CLUTCH PEDAL ASSY LHD DRILLED PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	29124009AA	CLUTCH PEDAL PAD	Enquire	To Order
	699053	ROLLPIN DIA 3/16 X 7/16 LONG	Enquire	To Order
	3790075	Cable Tie, 290mm	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	2990330	Housing - pedal	2990330 Housing - pedal RHD Manual	-	1	Enquire
1	2990331	Housing - pedal	2990331 Housing - pedal LHD Manual	-	1	Enquire
2	29123286AA	GASKET - PEDAL HOUSING	29123286AA GASKET - PEDAL HOUSING	-	1	Enquire
3	697128	NUT 5/16 UNF NYLOC THIN	697128 NUT 5/16 UNF NYLOC THIN Pedal box upper mounting	-	2	Enquire
4	697126	WASHER 5/16 PLAIN ZINC PLATED	697126 WASHER 5/16 PLAIN ZINC PLATED	-	4	Enquire
5	2580996	STUD	2580996 STUD	-	2	Enquire
6	530508	SCREW 5/16 UNF x 1	530508 SCREW 5/16 UNF x 1 Pedal box lower mounting	-	2	Enquire
7	29121022AA	ASSY COMPLETE BRAKE PEDAL LHD	29121022AA ASSY COMPLETE BRAKE PEDAL LHD LHD Manual	-	1	Enquire
7	2984103	ASSY BRAKE PEDAL-RHD MANUAL	2984103 ASSY BRAKE PEDAL-RHD MANUAL RHD Manual	-	1	Enquire
8	2981255	PIVOT PIN- BRAKE PEDAL	2981255 PIVOT PIN- BRAKE PEDAL	-	1	Enquire
9	697291	NUT M10 NYLOC	697291 NUT M10 NYLOC	-	4	Enquire
10	697258	WASHER M10 PLAIN FORM A	697258 WASHER M10 PLAIN FORM A	-	1	Enquire
11	2981257	SPRING	2981257 SPRING	-	1	Enquire
12	2981272	Bush	2981272 Bush	-	2	Enquire
13	2984879	Pin, Joint	2984879 Pin, Joint	-	1	Enquire
14	703273	WASHER WAVE SPRING M8	703273 WASHER WAVE SPRING M8	-	1	Enquire
15	6G3327328AA	Clip, Safety, Nom Shaft, 5/16	6G3327328AA Clip, Safety, Nom Shaft, 5/16 Manual	-	2	Enquire
16	3785782	Switch-Stop Lamp ARRIVING SOON	3785782 Switch-Stop Lamp ARRIVING SOON	-	1	Enquire
17	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	2	Enquire
18	2981241	ASSY PEDAL PAD- MANUAL	2981241 ASSY PEDAL PAD- MANUAL Manual	-	1	Enquire
19	697128	NUT 5/16 UNF NYLOC THIN	697128 NUT 5/16 UNF NYLOC THIN Manual	-	2	Enquire
20	697126	WASHER 5/16 PLAIN ZINC PLATED	697126 WASHER 5/16 PLAIN ZINC PLATED Manual	-	1	Enquire
21	2981243	PEDAL PAD-RUBBER- BRAKE-MANUAL	2981243 PEDAL PAD-RUBBER- BRAKE-MANUAL Manual	-	1	Enquire
22	29124225AA	CLUTCH PEDAL ASSY LHD DRILLED PAD	29124225AA CLUTCH PEDAL ASSY LHD DRILLED PAD LHD Manual	-	1	Enquire
22	2981251	ASSY-CLUTCH PEDAL COMPLETE RHD	2981251 ASSY-CLUTCH PEDAL COMPLETE RHD RHD Manual	-	1	Enquire
23	2981250	PIN-CLUTCH PEDAL PIVOT	2981250 PIN-CLUTCH PEDAL PIVOT LHD Manual	-	1	Enquire
24	2981263	CLIP	2981263 CLIP LHD Manual	-	1	Enquire
25	697126	WASHER 5/16 PLAIN ZINC PLATED	697126 WASHER 5/16 PLAIN ZINC PLATED	-	1	Enquire
26	2981262	CLUTCH SPRING	2981262 CLUTCH SPRING Manual	-	1	Enquire
27	2981249	PIN	2981249 PIN Manual	-	1	Enquire
28	2981266	PIN-5/16inDIA SHANKx 1/2in LONG	2981266 PIN-5/16inDIA SHANKx 1/2in LONG Manual	-	1	Enquire
29	2981271	BUSH-PEDAL PIVOT	2981271 BUSH-PEDAL PIVOT Manual	-	2	Enquire
30	2981242	PEDAL RUBBER-CLUTCH	2981242 PEDAL RUBBER-CLUTCH Manual	-	1	Enquire
31	2981240	GASKET	2981240 GASKET Manual	-	2	Enquire
32	697293	SCREW	697293 SCREW	-	2	Enquire
33	697131	WASHER 5/16 SPRING	697131 WASHER 5/16 SPRING	-	2	Enquire
34	29124099AA	MANUAL BRAKE PEDAL PAD - DRILLED	29124099AA MANUAL BRAKE PEDAL PAD - DRILLED Optional From (V) 302253 Std on GT	-	1	Enquire
35	29124008AB	BRAKE PEDAL PAD MANUAL - ALUMINIUM	29124008AB BRAKE PEDAL PAD MANUAL - ALUMINIUM Optional From (V) 302253 Std on GT	-	1	Enquire
36	699890	SCREW M3 SOCKET HEAD	699890 SCREW M3 SOCKET HEAD Optional From (V) 302253 Std on GT	-	6	Enquire
37	29124100AA	Clutch pedal, drilled RHD	29124100AA Clutch pedal, drilled RHD Optional From (V) 302253 Std on GT	-	1	Enquire
37	29124225AA	CLUTCH PEDAL ASSY LHD DRILLED PAD	29124225AA CLUTCH PEDAL ASSY LHD DRILLED PAD Optional From (V) 302253 Std on GT	-	1	Enquire
38	29124009AA	CLUTCH PEDAL PAD	29124009AA CLUTCH PEDAL PAD Optional From (V) 302253 Std on GT	-	1	Enquire
38	699053	ROLLPIN DIA 3/16 X 7/16 LONG	699053 ROLLPIN DIA 3/16 X 7/16 LONG	-	1	Enquire
38	3790075	Cable Tie, 290mm	3790075 Cable Tie, 290mm	-	1	Enquire
38	9084092	GASKET	9084092 GASKET	-	1	Enquire
