Brake Booster and Modulator of Aston Martin Aston Martin DB7 Vantage

View All

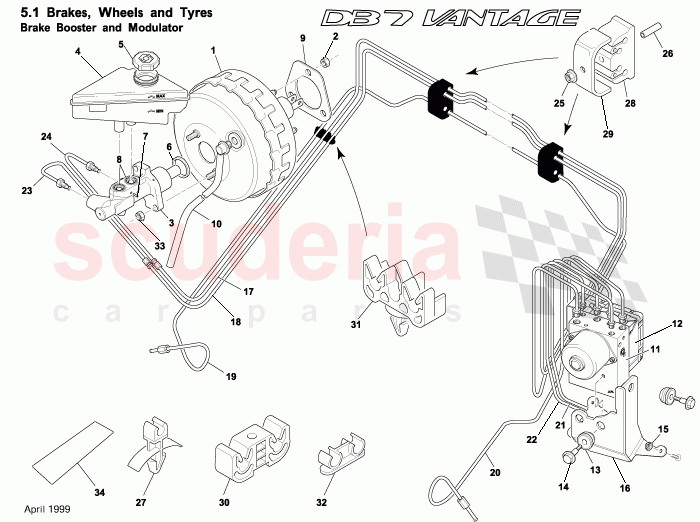

Aston Martin DB7 Vantage - Brake Booster and Modulator

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	28125381AA	ASSY BRAKE BOOSTER GT	Enquire	To Order
	28121575AA	ASSY BRAKE BOOSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28121589AA	BRAKE MASTER CYLINDER	Enquire	To Order
	28121589AA	BRAKE MASTER CYLINDER	Enquire	To Order
	697291	NUT M10 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28121589AA	BRAKE MASTER CYLINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3384095	BR.FLD RESVR KIT-RHD DATED AFTER 8KD	Enquire	To Order
	3384096	BRAKE FLUID RESERVOIR KIT LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3384097	BR RESERVOIR CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3384098	Lip Seal, Master Cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3384099	BR RESERVOIR PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3384100	SEAL-BR.RES.TO M/CYL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9084092	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28120550AB	ASSY VACUUM HOSE RHD	Enquire	To Order
	28120551AB	ASSY VACUUM HOSE LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91925	ABS MODULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91921	CONT.MODULE-A/SKID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9085219	MODULATOR RUBBER MTG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697795	SCREW M6 x 28 SPECIAL TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700332	Nut, M6, paint clearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	90120552AB	BRACKET MODULE ANTI LOCK RHD	Enquire	To Order
	90120553AD	ASSY - BRKT MODULE ANTI LOCK LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33120700AA	BRAKE PIPE RHD M/CYL RR TO MOD	Enquire	To Order
	33120701AA	BRAKE PIPE LHD M/CYL RR TO MOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33120702AA	BRAKE PIPE RHD M/CYL FRT TO MOD	Enquire	To Order
	33120703AA	BRAKE PIPE LHD M/CYL FRT TO MOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33120704AB	BRAKE PIPE RHD MOD TO RH FRT FLEXI	Enquire	To Order
	33120705AB	BRAKE PIPE LHD MOD TO RH FRT FLEXI	Enquire	To Order
	699233PK	TIE-STRAP HT RES-100	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33120706AB	BRAKE PIPE RHD MOD TO LH FRT FLEXI	Enquire	To Order
	33120707AB	BRAKE PIPE LHD MOD TO LH FRT FLEXI	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33120708AA	BRAKE PIPE RHD MOD TO RH RR U/BONNT	Enquire	To Order
	33120709AB	BRAKE PIPE LHD MOD TO RH RR U/BONNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33120710AA	BRAKE PIPE RHD MOD TO LH RR U/BONNT	Enquire	To Order
	33120711AB	BRAKE PIPE LHD MOD TO LH RR U/BONNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33121617AA	BRAKE PIPE MASTER CYLINDER FRONT RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33121618AA	BRAKE PIPE MASTER CYLINDER REAR RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697796	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697398	TIESTRAP-RELEASEABLE 4.6 x 165	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3384278	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3383923	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4379125AA	CLIP - BRAKE PIPE DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28122676AA	CLIP - TRIPLE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699218	GROMMET	Enquire	To Order
	699228	PIPE CLIP 2 WAY	Enquire	To Order
	699228	PIPE CLIP 2 WAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697444	NUT M8 FLG CLASS 8	Enquire	To Order
	691787PK	CABLE TIE-BLACK(100)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33140477AA	BRAKE PIPE OVERAXLE TO LH REAR FLEXI LHD	Enquire	To Order
	3381058	VALVE-PRESSURE DIFF	Enquire	To Order
	86122571AB	HEATPROOF SLEEVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	28125379AA	ASSY BRAKE BOOSTER MASTER CYLINDER & RESERVOIR LH GT	28125379AA ASSY BRAKE BOOSTER MASTER CYLINDER & RESERVOIR LH GT GT	-	1	Enquire
-	28125380AA	ASSY BRAKE BOOSTER MASTER CYLINDER AND RESERVOIR RH - GT	28125380AA ASSY BRAKE BOOSTER MASTER CYLINDER AND RESERVOIR RH - GT GT	-	1	Enquire
1	28125381AA	ASSY BRAKE BOOSTER GT	28125381AA ASSY BRAKE BOOSTER GT GT	-	1	Enquire
1	28121575AA	ASSY BRAKE BOOSTER	28121575AA ASSY BRAKE BOOSTER	-	1	Enquire
2	28121589AA	BRAKE MASTER CYLINDER	28121589AA BRAKE MASTER CYLINDER RHD	-	1	Enquire
2	28121589AA	BRAKE MASTER CYLINDER	28121589AA BRAKE MASTER CYLINDER LHD	-	1	Enquire
2	697291	NUT M10 NYLOC	697291 NUT M10 NYLOC	-	3	Enquire
3	28121589AA	BRAKE MASTER CYLINDER	28121589AA BRAKE MASTER CYLINDER	-	1	Enquire
4	3384095	BR.FLD RESVR KIT-RHD DATED AFTER 8KD	3384095 BR.FLD RESVR KIT-RHD DATED AFTER 8KD RHD	-	1	Enquire
4	3384096	BRAKE FLUID RESERVOIR KIT LHD	3384096 BRAKE FLUID RESERVOIR KIT LHD LHD	-	1	Enquire
5	3384097	BR RESERVOIR CAP	3384097 BR RESERVOIR CAP	-	1	Enquire
6	3384098	Lip Seal, Master Cylinder	3384098 Lip Seal, Master Cylinder	-	1	Enquire
7	3384099	BR RESERVOIR PIN	3384099 BR RESERVOIR PIN	-	1	Enquire
8	3384100	SEAL-BR.RES.TO M/CYL	3384100 SEAL-BR.RES.TO M/CYL	-	2	Enquire
9	9084092	GASKET	9084092 GASKET	-	1	Enquire
10	28120550AB	ASSY VACUUM HOSE RHD	28120550AB ASSY VACUUM HOSE RHD RHD	-	1	Enquire
10	28120551AB	ASSY VACUUM HOSE LHD	28120551AB ASSY VACUUM HOSE LHD LHD	-	1	Enquire
11	91925	ABS MODULATOR	91925 ABS MODULATOR	-	1	Enquire
12	91921	CONT.MODULE-A/SKID	91921 CONT.MODULE-A/SKID	-	1	Enquire
13	9085219	MODULATOR RUBBER MTG	9085219 MODULATOR RUBBER MTG	-	3	Enquire
14	697795	SCREW M6 x 28 SPECIAL TORX	697795 SCREW M6 x 28 SPECIAL TORX Modulator to bracket	-	3	Enquire
15	700332	Nut, M6, paint clearing	700332 Nut, M6, paint clearing Modulator to bracket	-	3	Enquire
16	90120552AB	BRACKET MODULE ANTI LOCK RHD	90120552AB BRACKET MODULE ANTI LOCK RHD RHD	-	1	Enquire
16	90120553AD	ASSY - BRKT MODULE ANTI LOCK LHD	90120553AD ASSY - BRKT MODULE ANTI LOCK LHD LHD	-	1	Enquire
17	33120700AA	BRAKE PIPE RHD M/CYL RR TO MOD	33120700AA BRAKE PIPE RHD M/CYL RR TO MOD RHD	-	1	Enquire
17	33120701AA	BRAKE PIPE LHD M/CYL RR TO MOD	33120701AA BRAKE PIPE LHD M/CYL RR TO MOD LHD	-	1	Enquire
18	33120702AA	BRAKE PIPE RHD M/CYL FRT TO MOD	33120702AA BRAKE PIPE RHD M/CYL FRT TO MOD RHD	-	1	Enquire
18	33120703AA	BRAKE PIPE LHD M/CYL FRT TO MOD	33120703AA BRAKE PIPE LHD M/CYL FRT TO MOD LHD	-	1	Enquire
19	33120704AB	BRAKE PIPE RHD MOD TO RH FRT FLEXI	33120704AB BRAKE PIPE RHD MOD TO RH FRT FLEXI RHD	-	1	Enquire
19	33120705AB	BRAKE PIPE LHD MOD TO RH FRT FLEXI	33120705AB BRAKE PIPE LHD MOD TO RH FRT FLEXI LHD	-	1	Enquire
19	699233PK	TIE-STRAP HT RES-100	699233PK TIE-STRAP HT RES-100	-	4	Enquire
20	33120706AB	BRAKE PIPE RHD MOD TO LH FRT FLEXI	33120706AB BRAKE PIPE RHD MOD TO LH FRT FLEXI RHD	-	1	Enquire
20	33120707AB	BRAKE PIPE LHD MOD TO LH FRT FLEXI	33120707AB BRAKE PIPE LHD MOD TO LH FRT FLEXI LHD	-	1	Enquire
21	33120708AA	BRAKE PIPE RHD MOD TO RH RR U/BONNT	33120708AA BRAKE PIPE RHD MOD TO RH RR U/BONNT RHD	-	1	Enquire
21	33120709AB	BRAKE PIPE LHD MOD TO RH RR U/BONNT	33120709AB BRAKE PIPE LHD MOD TO RH RR U/BONNT LHD	-	1	Enquire
22	33120710AA	BRAKE PIPE RHD MOD TO LH RR U/BONNT	33120710AA BRAKE PIPE RHD MOD TO LH RR U/BONNT RHD	-	1	Enquire
22	33120711AB	BRAKE PIPE LHD MOD TO LH RR U/BONNT	33120711AB BRAKE PIPE LHD MOD TO LH RR U/BONNT LHD	-	1	Enquire
23	33121617AA	BRAKE PIPE MASTER CYLINDER FRONT RHD	33121617AA BRAKE PIPE MASTER CYLINDER FRONT RHD RHD	-	1	Enquire
24	33121618AA	BRAKE PIPE MASTER CYLINDER REAR RHD	33121618AA BRAKE PIPE MASTER CYLINDER REAR RHD RHD	-	1	Enquire
25	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	2	Enquire
26	697796	SPACER	697796 SPACER	-	2	Enquire
27	697398	TIESTRAP-RELEASEABLE 4.6 x 165	697398 TIESTRAP-RELEASEABLE 4.6 x 165	-	3	Enquire
28	3384278	Clip	3384278 Clip	-	2	Enquire
29	3383923	CLIP	3383923 CLIP	-	2	Enquire
30	4G4379125AA	CLIP - BRAKE PIPE DOUBLE	4G4379125AA CLIP - BRAKE PIPE DOUBLE	-	4	Enquire
31	28122676AA	CLIP - TRIPLE PIPE	28122676AA CLIP - TRIPLE PIPE	-	2	Enquire
32	699218	GROMMET	699218 GROMMET Volante only	-	3	Enquire
32	699228	PIPE CLIP 2 WAY	699228 PIPE CLIP 2 WAY LHD	-	6	Enquire
32	699228	PIPE CLIP 2 WAY	699228 PIPE CLIP 2 WAY RHD	-	7	Enquire
33	697444	NUT M8 FLG CLASS 8	697444 NUT M8 FLG CLASS 8 Master cylinder to booster	-	2	Enquire
33	691787PK	CABLE TIE-BLACK(100)	691787PK CABLE TIE-BLACK(100)	-	1	Enquire
34	33140477AA	BRAKE PIPE OVERAXLE TO LH REAR FLEXI LHD	33140477AA BRAKE PIPE OVERAXLE TO LH REAR FLEXI LHD Zagato	-	1	Enquire
34	3381058	VALVE-PRESSURE DIFF	3381058 VALVE-PRESSURE DIFF Zagato	-	1	Enquire
34	86122571AB	HEATPROOF SLEEVE	86122571AB HEATPROOF SLEEVE	-	2	Enquire
