Front Brakes of Aston Martin Aston Martin DB7 Vantage

View All

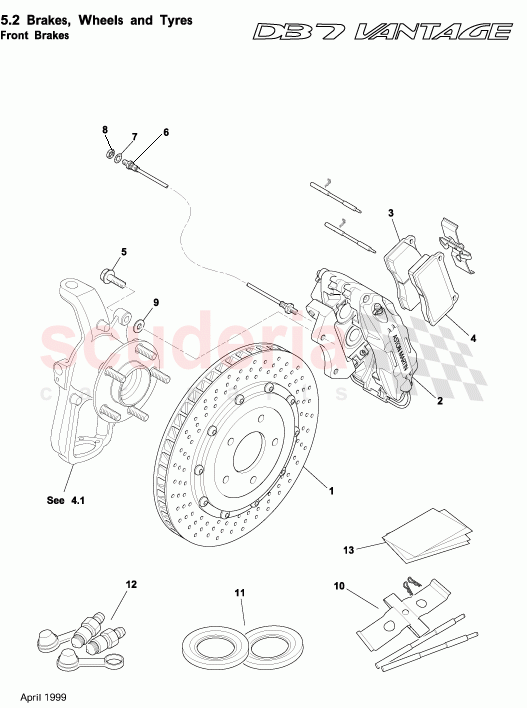

Aston Martin DB7 Vantage - Front Brakes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	28125036AA	DISC GROOVED FRONT - GT	Enquire	To Order
	28123818AA	BRAKE DISC FRONT VENTILATED	Enquire	To Order
	28123818AA	BRAKE DISC FRONT VENTILATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28122141AD	ASSY CALIPER FRONT LH	Enquire	To Order
	28122140AD	ASSY CALIPER FRONT RH	Enquire	To Order
	28122141AD	ASSY CALIPER FRONT LH	Enquire	To Order

...and 23 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	2885450	FRONT BRAKE PAD SET DB7 VANTAGE ONLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2886280PK	BRAKE PADS FRONT	Enquire	To Order
	2886069PK	BRAKE PAD SET(4)FRT	Enquire	To Order
	2885450	FRONT BRAKE PAD SET DB7 VANTAGE ONLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28123941AA	BOLT DURLOC M12x35	Enquire	To Order
	28123452AA	BOLT HEX HD M12x50 12.9 GRD(SUPPLIER PART U190670)	Enquire	To Order
	697790	LOCKING BOLT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	33122161AB	ASSY BRAKE HOSE FRNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697253	WASHER M10 S/PROOF INT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3381076	CLIP	Enquire	To Order
	3381080	NUT M10 x 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380898	WASHER 15/32inIDx 7/8inODx 1/32in thk	Enquire	To Order
	2880270	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2885451	CLIP & PIN KIT- FRONT BRAKE PADS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2885452	BOOT SET (2) 40 FRONT CALIPER	Enquire	To Order
	2885453	BOOT SET (2) 44 FRONT CALIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2885454	BLEED SCREW &CAP SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2885822	ANTI-SQUEAL SHIM KIT SELF-ADHESIVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	28125036AA	DISC GROOVED FRONT - GT	28125036AA DISC GROOVED FRONT - GT Optional, standard on GT	-	2	Enquire
1	28123818AA	BRAKE DISC FRONT VENTILATED	28123818AA BRAKE DISC FRONT VENTILATED Up to (V) 300831	-	1	Enquire
1	28123818AA	BRAKE DISC FRONT VENTILATED	28123818AA BRAKE DISC FRONT VENTILATED From (V) 300832	-	2	Enquire
2	28122141AD	ASSY CALIPER FRONT LH	28122141AD ASSY CALIPER FRONT LH From (V) 300832 Up to (V) 301457	-	1	Enquire
2	28122140AD	ASSY CALIPER FRONT RH	28122140AD ASSY CALIPER FRONT RH From (V) 300832 Up to (V) 301457	-	1	Enquire
2	28122141AD	ASSY CALIPER FRONT LH	28122141AD ASSY CALIPER FRONT LH From (V) 301458 Up to (V) 402884	-	1	Enquire
2	28122140AD	ASSY CALIPER FRONT RH	28122140AD ASSY CALIPER FRONT RH From (V) 301458 Up to (V) 402884	-	1	Enquire
2	28125039AA	BRAKE CALIPER FRT LH SILVER - GT	28125039AA BRAKE CALIPER FRT LH SILVER - GT Optional, standard on GT	-	1	Enquire
2	28125038AA	BRAKE CALIPER FRT RH SILVER - GT	28125038AA BRAKE CALIPER FRT RH SILVER - GT Optional, standard on GT	-	1	Enquire
2	28125527AA	BRAKE CALIPER FRONT L/H BLACK	28125527AA BRAKE CALIPER FRONT L/H BLACK Optional, standard on GT	-	1	Enquire
2	28125526AA	BRAKE CALIPER FRONT R/H BLACK	28125526AA BRAKE CALIPER FRONT R/H BLACK Optional, standard on GT	-	1	Enquire
2	28125525AA	BRAKE CALIPER FRONT L/H GREY	28125525AA BRAKE CALIPER FRONT L/H GREY Optional, standard on GT	-	1	Enquire
2	28125524AA	BRAKE CALIPER FRONT R/H GREY	28125524AA BRAKE CALIPER FRONT R/H GREY Optional, standard on GT	-	1	Enquire
2	28125529AA	BRAKE CALIPER FRONT LH GOLD	28125529AA BRAKE CALIPER FRONT LH GOLD Optional, standard on GT	-	1	Enquire
2	28125528AA	BRAKE CALIPER FRONT RH GOLD	28125528AA BRAKE CALIPER FRONT RH GOLD Optional, standard on GT	-	1	Enquire
2	28125531AA	BRAKE CALIPER FRONT L/H RED	28125531AA BRAKE CALIPER FRONT L/H RED Optional, standard on GT	-	1	Enquire
2	28125530AA	BRAKE CALIPER FRONT R/H RED	28125530AA BRAKE CALIPER FRONT R/H RED Optional, standard on GT	-	1	Enquire
2	28122141AB	ASSY CALIPER FRONT LH	28122141AB ASSY CALIPER FRONT LH Up to (V) 300831	-	1	Enquire
2	28122140AD	ASSY CALIPER FRONT RH	28122140AD ASSY CALIPER FRONT RH Up to (V) 300831	-	1	Enquire
2	2886581	BRAKE CALIPER FRT LH SILVER ONE PIECE BRAKE PAD TEXTAR	2886581 BRAKE CALIPER FRT LH SILVER ONE PIECE BRAKE PAD TEXTAR From (V) 402885	-	1	Enquire
2	2886580	BRAKE CALIPER FRT RH SILVER ONE PIECE BRAKE PAD TEXTAR	2886580 BRAKE CALIPER FRT RH SILVER ONE PIECE BRAKE PAD TEXTAR From (V) 402885	-	1	Enquire
2	2886573	BRAKE CALIPER FRH LH BLACK - ONE PIECE	2886573 BRAKE CALIPER FRH LH BLACK - ONE PIECE From (V) 402885	-	1	Enquire
2	2886572	BRAKE CALIPER FRT RH BLACK - ONE PIECE	2886572 BRAKE CALIPER FRT RH BLACK - ONE PIECE From (V) 402885	-	1	Enquire
2	2886577	BRAKE CALIPER FRT LH GRAY - ONE PIECE	2886577 BRAKE CALIPER FRT LH GRAY - ONE PIECE From (V) 402885	-	1	Enquire
2	2886576	BRAKE CALIPER FRT RH GRAY - ONE PIECE	2886576 BRAKE CALIPER FRT RH GRAY - ONE PIECE From (V) 402885	-	1	Enquire
2	2886579	BRAKE CALIPER FRT LH GOLD - ONE PIECE	2886579 BRAKE CALIPER FRT LH GOLD - ONE PIECE From (V) 402885	-	1	Enquire
2	2886578	BRAKE CALIPER FRT RH GOLD - ONE PIECE	2886578 BRAKE CALIPER FRT RH GOLD - ONE PIECE From (V) 402885	-	1	Enquire
2	2886575	BRAKE CALIPER FRT LH RED - ONE PIECE	2886575 BRAKE CALIPER FRT LH RED - ONE PIECE From (V) 402885	-	1	Enquire
2	2886574	BRAKE CALIPER FRT RH RED - ONE PIECE	2886574 BRAKE CALIPER FRT RH RED - ONE PIECE From (V) 402885	-	1	Enquire
3	2885450	FRONT BRAKE PAD SET DB7 VANTAGE ONLY	2885450 FRONT BRAKE PAD SET DB7 VANTAGE ONLY Up to (V) 301457	-	1	Enquire
4	2886280PK	BRAKE PADS FRONT	2886280PK BRAKE PADS FRONT From (V) 301458 May be used, in conjunction with rear pad set 28-85759, to replace early/existing pads - BUT MUST BE FITTED IN VEHICLE SETS	-	1	Enquire
4	2886069PK	BRAKE PAD SET(4)FRT	2886069PK BRAKE PAD SET(4)FRT Optional, standard on GT	-	4	Enquire
4	2885450	FRONT BRAKE PAD SET DB7 VANTAGE ONLY	2885450 FRONT BRAKE PAD SET DB7 VANTAGE ONLY Up to (V) 301457	-	1	Enquire
5	28123941AA	BOLT DURLOC M12x35	28123941AA BOLT DURLOC M12x35 From (V) 300832 Up to (V) 402884	-	4	Enquire
5	28123452AA	BOLT HEX HD M12x50 12.9 GRD(SUPPLIER PART U190670)	28123452AA BOLT HEX HD M12x50 12.9 GRD(SUPPLIER PART U190670) Up to (V) 300831	-	2	Enquire
5	697790	LOCKING BOLT	697790 LOCKING BOLT Up to (V) 300831	-	2	Enquire
5	2885947	SCREW M14x1.5x45 HEX FLG 10.9	2885947 SCREW M14x1.5x45 HEX FLG 10.9 From (V) 402885	-	4	Enquire
6	33122161AB	ASSY BRAKE HOSE FRNT	33122161AB ASSY BRAKE HOSE FRNT	-	2	Enquire
7	697253	WASHER M10 S/PROOF INT	697253 WASHER M10 S/PROOF INT	-	2	Enquire
8	3381076	CLIP	3381076 CLIP	-	2	Enquire
8	3381080	NUT M10 x 1	3381080 NUT M10 x 1	-	2	Enquire
9	2380898	WASHER 15/32inIDx 7/8inODx 1/32in thk	2380898 WASHER 15/32inIDx 7/8inODx 1/32in thk	-	-	Enquire
9	2880270	SHIM	2880270 SHIM	-	-	Enquire
10	2885451	CLIP & PIN KIT- FRONT BRAKE PADS	2885451 CLIP & PIN KIT- FRONT BRAKE PADS	-	2	Enquire
11	2885452	BOOT SET (2) 40 FRONT CALIPER	2885452 BOOT SET (2) 40 FRONT CALIPER	-	2	Enquire
11	2885453	BOOT SET (2) 44 FRONT CALIPER	2885453 BOOT SET (2) 44 FRONT CALIPER	-	2	Enquire
12	2885454	BLEED SCREW &CAP SET	2885454 BLEED SCREW &CAP SET	-	2	Enquire
13	2885822	ANTI-SQUEAL SHIM KIT SELF-ADHESIVE	2885822 ANTI-SQUEAL SHIM KIT SELF-ADHESIVE	-	1	Enquire
