Wheelarch trim of Rolls Royce Rolls Royce Phantom RR11(2017-2023)

View All

Rolls Royce Phantom RR11(2017-2023) - Wheelarch trim

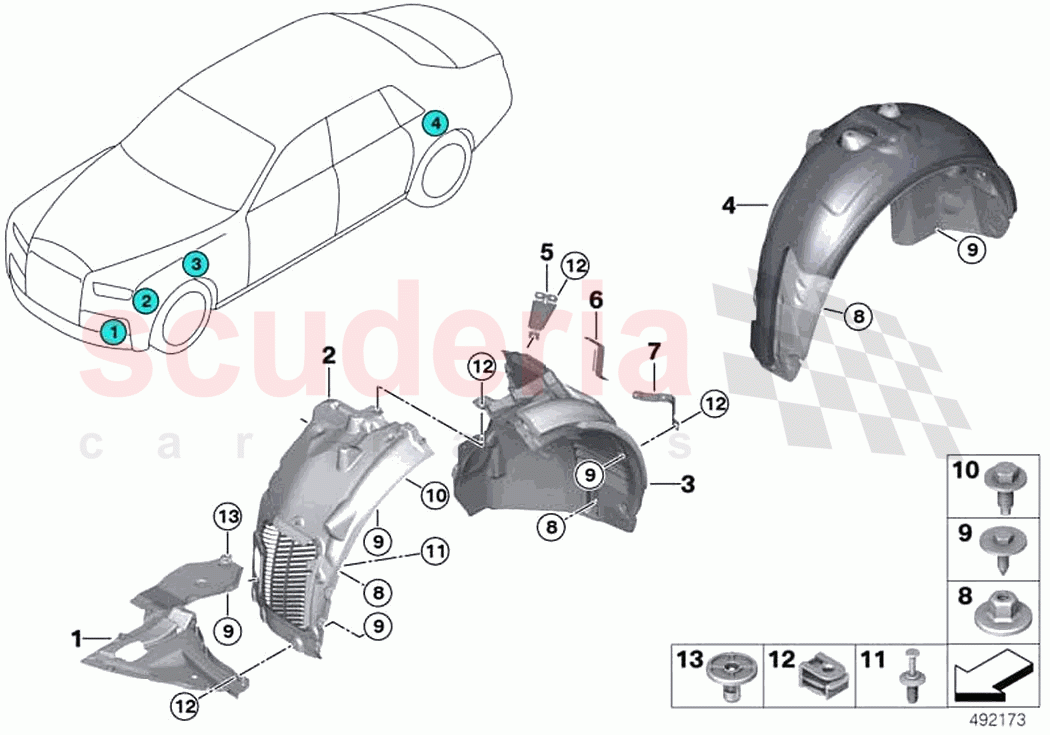

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51757409817	Cover, bottom left	Enquire	To Order
	51757409818	Cover, bottom right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717409793	Cover,wheel arch,frontsection,front left	Enquire	To Order
	51717409794	Cover,wheel arch,frontsection,frontright	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717409795	Cover,wheel arch,rear section,front left	Enquire	To Order
	51717409796	Cover,wheel arch,rearsection,front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717409797	Cover, wheel housing, rear left	Enquire	To Order
	51717409798	Cover, wheel housing, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717463401	Holder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51719479310	Holder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717932234	Support, wheel arch cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147169847	Plastic cap nut with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149213164	Hex Bolt	Enquire	To Order
	7149481168	Hex Bolt	Enquire	To Order
	7142644722	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907898	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51111908077	Expanding rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147311312	C-clip plastic nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147306224	Expanding nut	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	51757409817	Cover, bottom left	51757409817 Cover, bottom left	-	1	Enquire
01	51757409818	Cover, bottom right	51757409818 Cover, bottom right	-	1	Enquire
02	51717409793	Cover,wheel arch,frontsection,front left	51717409793 Cover,wheel arch,frontsection,front left	-	1	Enquire
02	51717409794	Cover,wheel arch,frontsection,frontright	51717409794 Cover,wheel arch,frontsection,frontright	-	1	Enquire
03	51717409795	Cover,wheel arch,rear section,front left	51717409795 Cover,wheel arch,rear section,front left	-	1	Enquire
03	51717409796	Cover,wheel arch,rearsection,front right	51717409796 Cover,wheel arch,rearsection,front right	-	1	Enquire
04	51717409797	Cover, wheel housing, rear left	51717409797 Cover, wheel housing, rear left	-	1	Enquire
04	51717409798	Cover, wheel housing, rear right	51717409798 Cover, wheel housing, rear right	-	1	Enquire
05	51717463401	Holder	51717463401 Holder	-	2	Enquire
06	51719479310	Holder	51719479310 Holder	-	2	Enquire
07	51717932234	Support, wheel arch cover	51717932234 Support, wheel arch cover	-	2	Enquire
08	7147169847	Plastic cap nut with washer	7147169847 Plastic cap nut with washer D=22MM	-	-	Enquire
09	7149213164	Hex Bolt	7149213164 Hex Bolt TS5X20 SW8 D=22	-	-	Enquire
09	7149481168	Hex Bolt	7149481168 Hex Bolt TS5X20SW10 D=22; to 01.2021	-	-	Enquire
09	7142644722	Hex Bolt	7142644722 Hex Bolt TS5X20SW10 D=22; to 01.2021	-	-	Enquire
10	7119907898	Hex Bolt	7119907898 Hex Bolt M6X20-8.8	-	-	Enquire
11	51111908077	Expanding rivet	51111908077 Expanding rivet D = 6MM	-	-	Enquire
12	7147311312	C-clip plastic nut	7147311312 C-clip plastic nut TS5	-	-	Enquire
13	7147306224	Expanding nut	7147306224 Expanding nut L= 19.9MM	-	-	Enquire
