Air ducts of Rolls Royce Rolls Royce Phantom RR11(2017-2023)

View All

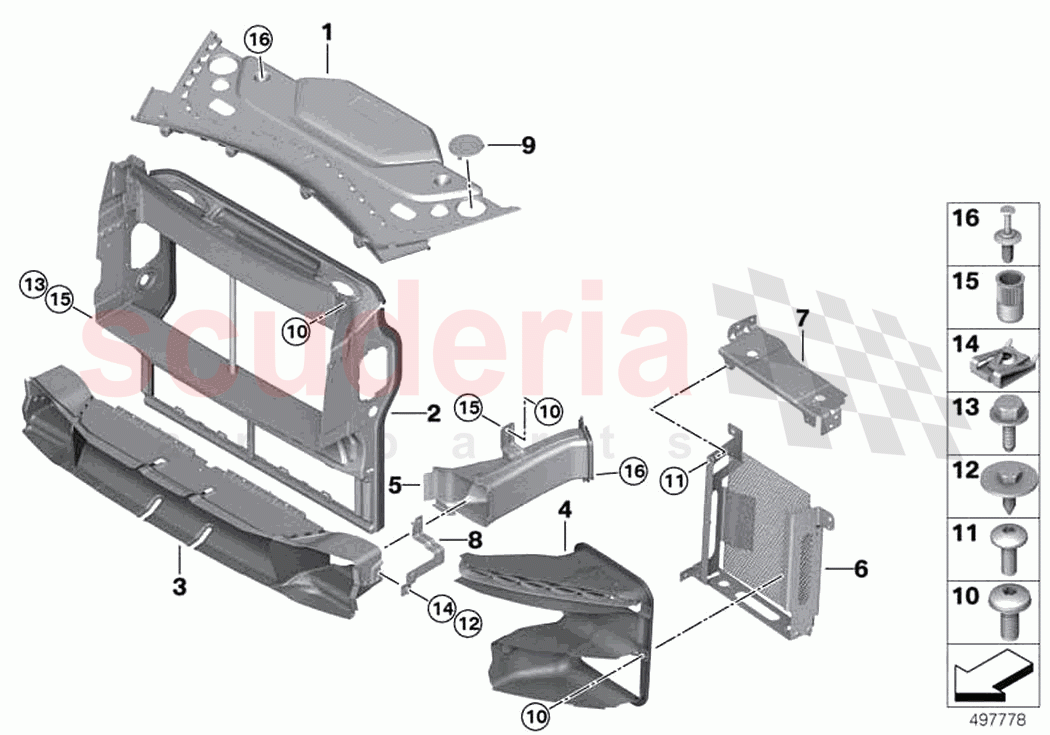

Rolls Royce Phantom RR11(2017-2023) - Air ducts

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51237416325	Cover, engine compartment front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137413427	Air duct, radiator, top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137413397	Air duct, bottom	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51747486179	Air duct displaced radiator left	Enquire	To Order
	51747486180	Air duct displaced radiator right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137413435	Front left brake air duct	Enquire	To Order
	51137413436	Front right brake air duct	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51117495681	Frame left	Enquire	To Order
	51117495682	Frame right	Enquire	To Order
	51117491709	Frame left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007953995	Bracket Upper Right	Enquire	To Order
	41007953996	Bracket Upper Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137414885	Bracket, left	Enquire	To Order
	51137414886	Bracket, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51767243147	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147197262	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7142994134	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149126886	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147118369	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717065773	C-clip nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146953045	Blind rivet nut, countersunk head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51111908077	Expanding rivet	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	51237416325	Cover, engine compartment front	51237416325 Cover, engine compartment front	-	1	Enquire
02	51137413427	Air duct, radiator, top	51137413427 Air duct, radiator, top	-	1	Enquire
03	51137413397	Air duct, bottom	51137413397 Air duct, bottom	-	1	Enquire
04	51747486179	Air duct displaced radiator left	51747486179 Air duct displaced radiator left	-	1	Enquire
04	51747486180	Air duct displaced radiator right	51747486180 Air duct displaced radiator right	-	1	Enquire
05	51137413435	Front left brake air duct	51137413435 Front left brake air duct	-	1	Enquire
05	51137413436	Front right brake air duct	51137413436 Front right brake air duct	-	1	Enquire
06	51117495681	Frame left	51117495681 Frame left	-	1	Enquire
06	51117495682	Frame right	51117495682 Frame right	-	1	Enquire
06	51117491709	Frame left	51117491709 Frame left	-	1	Enquire
07	41007953995	Bracket Upper Right	41007953995 Bracket Upper Right	-	1	Enquire
07	41007953996	Bracket Upper Right	41007953996 Bracket Upper Right	-	1	Enquire
08	51137414885	Bracket, left	51137414885 Bracket, left	-	1	Enquire
08	51137414886	Bracket, right	51137414886 Bracket, right	-	1	Enquire
09	51767243147	Cover	51767243147 Cover	-	2	Enquire
10	7147197262	Fillister head screw	7147197262 Fillister head screw	-	-	Enquire
11	7142994134	Fillister head screw	7142994134 Fillister head screw	-	-	Enquire
12	7149126886	Hex Bolt	7149126886 Hex Bolt TS5X17 SW8 D=22	-	-	Enquire
13	7147118369	Fillister head screw	7147118369 Fillister head screw	-	-	Enquire
14	51717065773	C-clip nut	51717065773 C-clip nut	-	-	Enquire
15	7146953045	Blind rivet nut, countersunk head	7146953045 Blind rivet nut, countersunk head M6	-	-	Enquire
16	51111908077	Expanding rivet	51111908077 Expanding rivet D = 6MM	-	-	Enquire
