Mounted parts for centre console of Rolls Royce Rolls Royce Phantom RR11(2017-2023)

View All

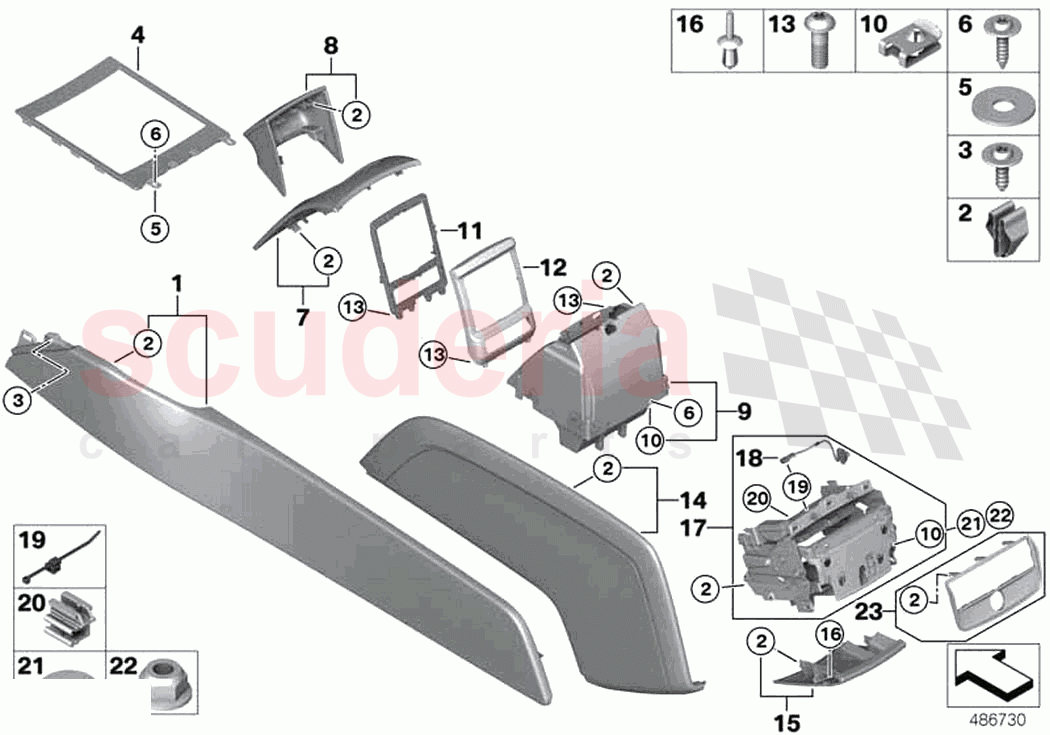

Rolls Royce Phantom RR11(2017-2023) - Mounted parts for centre console

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51169364383	Trim panel centre console front left	Enquire	To Order
	51169364384	Trim panel centre console front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147321144	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149200941	Oval-head screw with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169364396	Trim, storage compartment	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147135526	Washer	Enquire	To Order
	7119904446	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149197038	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169364341	Cover centre console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169364345	Trim, operating facility, centre console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51165A3E764	Housing w.kinematics for operating unit	Enquire	To Order
	51165A3E764	Housing w.kinematics for operating unit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51457067987	C-clip nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167950137	Adapter plate operating facility	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167950136	Trim oper.facility i.ctr.console chrome	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147122390	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169364367	Trim panel, centre console, rear left	Enquire	To Order
	51169364368	Trim panel, centre console, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169364397	Trim panel, centre console, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51161881149	Expanding rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167942552	Holder RSE centre console rear	Enquire	To Order
	51169384150	Holder storage compartm.ctr.console rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166825782	Microswitch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61139200225	Cable strap with bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61139123604	Plug-in connection bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904208	Washer	Enquire	To Order
	7119904207	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905977	Hex nut with flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169360355	Trim centre console support rear	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	51169364383	Trim panel centre console front left	51169364383 Trim panel centre console front left COLOUR NEUTRAL	-	1	Enquire
01	51169364384	Trim panel centre console front right	51169364384 Trim panel centre console front right COLOUR NEUTRAL	-	1	Enquire
02	7147321144	Clamp	7147321144 Clamp	-	66	Enquire
03	7149200941	Oval-head screw with washer	7149200941 Oval-head screw with washer DELTA PT4X12	-	3	Enquire
04	51169364396	Trim, storage compartment	51169364396 Trim, storage compartment COLOUR NEUTRAL	-	1	Enquire
05	7147135526	Washer	7147135526 Washer 6,4X15X0,5-ZNS3	-	2	Enquire
05	7119904446	Washer	7119904446 Washer 5-200 HV-ZNNIV	-	2	Enquire
06	7149197038	Fillister head screw	7149197038 Fillister head screw DELTA PT4X16	-	6	Enquire
07	51169364341	Cover centre console	51169364341 Cover centre console COLOUR NEUTRAL	-	1	Enquire
08	51169364345	Trim, operating facility, centre console	51169364345 Trim, operating facility, centre console COLOUR NEUTRAL	-	1	Enquire
09	51165A3E764	Housing w.kinematics for operating unit	51165A3E764 Housing w.kinematics for operating unit	-	1	Enquire
09	51165A3E764	Housing w.kinematics for operating unit	51165A3E764 Housing w.kinematics for operating unit	-	1	Enquire
10	51457067987	C-clip nut	51457067987 C-clip nut	-	2	Enquire
11	51167950137	Adapter plate operating facility	51167950137 Adapter plate operating facility	-	1	Enquire
12	51167950136	Trim oper.facility i.ctr.console chrome	51167950136 Trim oper.facility i.ctr.console chrome	-	1	Enquire
13	7147122390	Fillister head screw	7147122390 Fillister head screw 4X12MM	-	12	Enquire
14	51169364367	Trim panel, centre console, rear left	51169364367 Trim panel, centre console, rear left COLOUR NEUTRAL	-	1	Enquire
14	51169364368	Trim panel, centre console, rear right	51169364368 Trim panel, centre console, rear right COLOUR NEUTRAL	-	1	Enquire
15	51169364397	Trim panel, centre console, rear	51169364397 Trim panel, centre console, rear COLOUR NEUTRAL	-	1	Enquire
16	51161881149	Expanding rivet	51161881149 Expanding rivet	-	2	Enquire
17	51167942552	Holder RSE centre console rear	51167942552 Holder RSE centre console rear	-	1	Enquire
17	51169384150	Holder storage compartm.ctr.console rear	51169384150 Holder storage compartm.ctr.console rear	-	1	Enquire
18	51166825782	Microswitch	51166825782 Microswitch	-	1	Enquire
19	61139200225	Cable strap with bracket	61139200225 Cable strap with bracket L=200MM	-	4	Enquire
20	61139123604	Plug-in connection bracket	61139123604 Plug-in connection bracket	-	1	Enquire
21	7119904208	Washer	7119904208 Washer 4-200 HV-ZNFE; from 06.2007	-	4	Enquire
21	7119904207	Washer	7119904207 Washer 4-200 HV-ZNS3	-	4	Enquire
22	7119905977	Hex nut with flange	7119905977 Hex nut with flange M8-8-ZNNIV SI	-	4	Enquire
23	51169360355	Trim centre console support rear	51169360355 Trim centre console support rear	-	1	Enquire
