Door trim rear

Find Your Part

Rolls Royce Phantom RR11(2017-2023) - Door trim rear

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51427437947 Door trim panel, rear left $3,750.12 To Order
51427437948 Door trim panel, rear right $3,750.12 To Order
Photo Part No Description Price (each) Stock
51427437949 Support armrest, rear left $611.30 To Order
51427437950 Support armrest, rear right $611.30 To Order
Photo Part No Description Price (each) Stock
51427437951 Map pocket, rear left $2,352.24 To Order
51427437952 Map pocket, rear right $2,352.24 To Order
Photo Part No Description Price (each) Stock
51427437945 Capping, inner left $480.16 To Order
51427437946 Capping, inner right $480.16 To Order
Photo Part No Description Price (each) Stock
51427416653 Capping, outer right $1,495.81 To Order
51427416654 Capping, outer right $1,495.81 To Order
51427420051 Capping, outer left $1,809.55 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
51427437955 Door mirror, leather, left $3,080.07 To Order
51427437956 Door mirror, leather, right $3,080.07 To Order
51427417091 Door mirror, wood, left $5,053.99 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
51417462819 Handle recess, left $332.65 To Order
51417462820 Handle recess, right $332.65 To Order
Photo Part No Description Price (each) Stock
51427471975 Armrest, rear left $1,118.73 To Order
51427471976 Armrest, rear right $1,118.73 To Order
51427437961 Armrest, rear left $1,118.73 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
51428491777 Sound insulating left $7.76 To Order
51428491778 Sound insulating right $8.27 To Order
Photo Part No Description Price (each) Stock
51409475178 Speaker cover, mid-range speaker $266.16 To Order
51469475179 Speaker cover, mid-range speaker $661.84 To Order
Photo Part No Description Price (each) Stock
51427416639 Speaker cover, tweeter $121.50 To Order
Photo Part No Description Price (each) Stock
51415A56CC9 Door handle pin $6.54 To Order
Photo Part No Description Price (each) Stock
51419158059 Retainer, A version $17.20 To Order
Photo Part No Description Price (each) Stock
51419158060 Retainer, B version $8.76 To Order
Photo Part No Description Price (each) Stock
51419158061 Retainer, C version $8.56 To Order
Photo Part No Description Price (each) Stock
51418224781 Clip with sealing ring $1.00 To Order
Photo Part No Description Price (each) Stock
7147194471 screw for plastic $2.12 To Order
Photo Part No Description Price (each) Stock
11141717656 Cable holder $6.21 To Order
Photo Part No Description Price (each) Stock
51167072159 Fillister head screw $0.59 To Order
Photo Part No Description Price (each) Stock
51227437291 Insert for handle recess left $263.36 To Order
51227437292 Insert for handle recess right $263.36 To Order
Photo Part No Description Price (each) Stock
51417277443 Clamp $2.12 To Order
Photo Part No Description Price (each) Stock
7147151805 Fillister head screw $2.20 To Order
Photo Part No Description Price (each) Stock
51427443803 Mounting for tweeter $9.07 To Order
Photo Part No Description Price (each) Stock
7146979835 Fillister head screw with collar $0.69 To Order
Photo Part No Description Price (each) Stock
51427443799 Fleece left $199.85 To Order
51427443800 Fleece right $199.85 To Order
Photo Part No Description Price (each) Stock
51427437019 Armrest, left $935.19 To Order
51427437020 Armrest, right $935.19 To Order
Photo Part No Description Price (each) Stock
7149172157 Clamp $2.66 To Order
View All

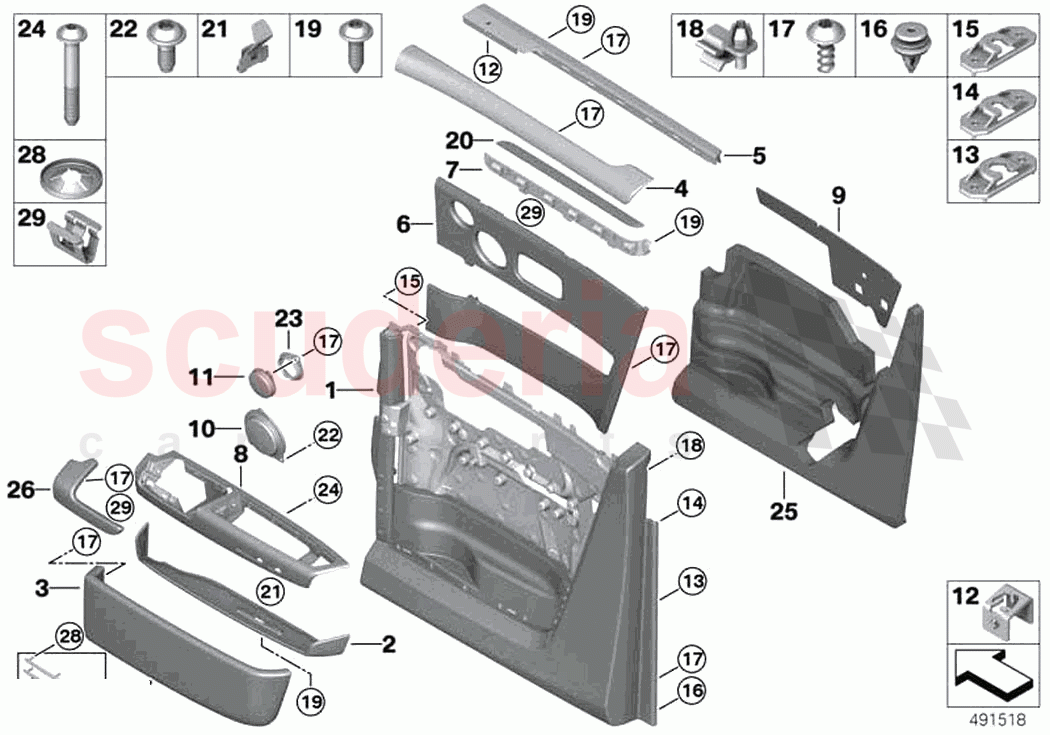

Door trim rear of Rolls Royce Rolls Royce Phantom RR11(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 51417484277
Pin stripe 		$2,270.52 1
- 51417484278
Pin stripe 		$2,270.52 1
- 51426843253
Pin stripe 		$1,882.63 1
- 51426843254
Pin stripe 		$1,882.63 1
01 51427437947
Door trim panel, rear left
QUOTE COLOUR 		$3,750.12 1
01 51427437948
Door trim panel, rear right
QUOTE COLOUR 		$3,750.12 1
02 51427437949
Support armrest, rear left
QUOTE COULOR 		$611.30 1
02 51427437950
Support armrest, rear right
QUOTE COULOR 		$611.30 1
03 51427437951
Map pocket, rear left
QUOTE COULOR 		$2,352.24 1
03 51427437952
Map pocket, rear right
QUOTE COULOR 		$2,352.24 1
04 51427437945
Capping, inner left
QUOTE COULOR 		$480.16 1
04 51427437946
Capping, inner right
QUOTE COULOR 		$480.16 1
05 51427416653
Capping, outer right 		$1,495.81 1
05 51427416654
Capping, outer right 		$1,495.81 1
05 51427420051
Capping, outer left 		$1,809.55 1
05 51427420052
Capping, outer right 		$1,809.55 1
06 51427437955
Door mirror, leather, left
QUOTE COULOR 		$3,080.07 1
06 51427437956
Door mirror, leather, right
QUOTE COULOR 		$3,080.07 1
06 51427417091
Door mirror, wood, left
QUOTE VENEER 		$5,053.99 1
06 51427417092
Door mirror, wood, right
QUOTE VENEER 		$5,053.99 1
07 51417462819
Handle recess, left 		$332.65 1
07 51417462820
Handle recess, right 		$332.65 1
08 51427471975
Armrest, rear left
QUOTE COLOUR 		$1,118.73 1
08 51427471976
Armrest, rear right
QUOTE COLOUR 		$1,118.73 1
08 51427437961
Armrest, rear left
QUOTE COLOUR 		$1,118.73 1
08 51427437962
Armrest, rear right
QUOTE COLOUR 		$1,118.73 1
08 51427417099
Armrest, rear left
QUOTE VENEER 		$3,080.86 1
08 51427417100
Armrest, rear right
QUOTE VENEER 		$3,080.86 1
08 51427470725
Armrest, rear left
QUOTE VENEER 		$3,080.86 1
08 51427470726
Armrest, rear right
QUOTE VENEER 		$3,080.86 1
09 51428491777
Sound insulating left 		$7.76 1
09 51428491778
Sound insulating right 		$8.27 1
10 51409475178
Speaker cover, mid-range speaker 		$266.16 2
10 51469475179
Speaker cover, mid-range speaker 		$661.84 2
11 51427416639
Speaker cover, tweeter 		$121.50 2
12 51415A56CC9
Door handle pin 		$6.54 2
13 51419158059
Retainer, A version 		$17.20 14
14 51419158060
Retainer, B version 		$8.76 2
15 51419158061
Retainer, C version 		$8.56 2
16 51418224781
Clip with sealing ring
GRAU 		$1.00 18
17 7147194471
screw for plastic
TS5X12-ZNS3 		$2.12 -
18 11141717656
Cable holder 		$6.21 2
19 51167072159
Fillister head screw
ISA 4X14MM 		$0.59 -
20 51227437291
Insert for handle recess left
COLOUR NEUTRAL 		$263.36 1
20 51227437292
Insert for handle recess right
COLOUR NEUTRAL 		$263.36 1
21 51417277443
Clamp 		$2.12 -
22 7147151805
Fillister head screw 		$2.20 3
23 51427443803
Mounting for tweeter 		$9.07 2
24 7146979835
Fillister head screw with collar
ISA 35X5 		$0.69 1
25 51427443799
Fleece left 		$199.85 1
25 51427443800
Fleece right 		$199.85 1
26 51427437019
Armrest, left
QUOTE COLOUR 		$935.19 1
26 51427437020
Armrest, right
QUOTE COLOUR 		$935.19 1
29 7149172157
Clamp 		$2.66 -
