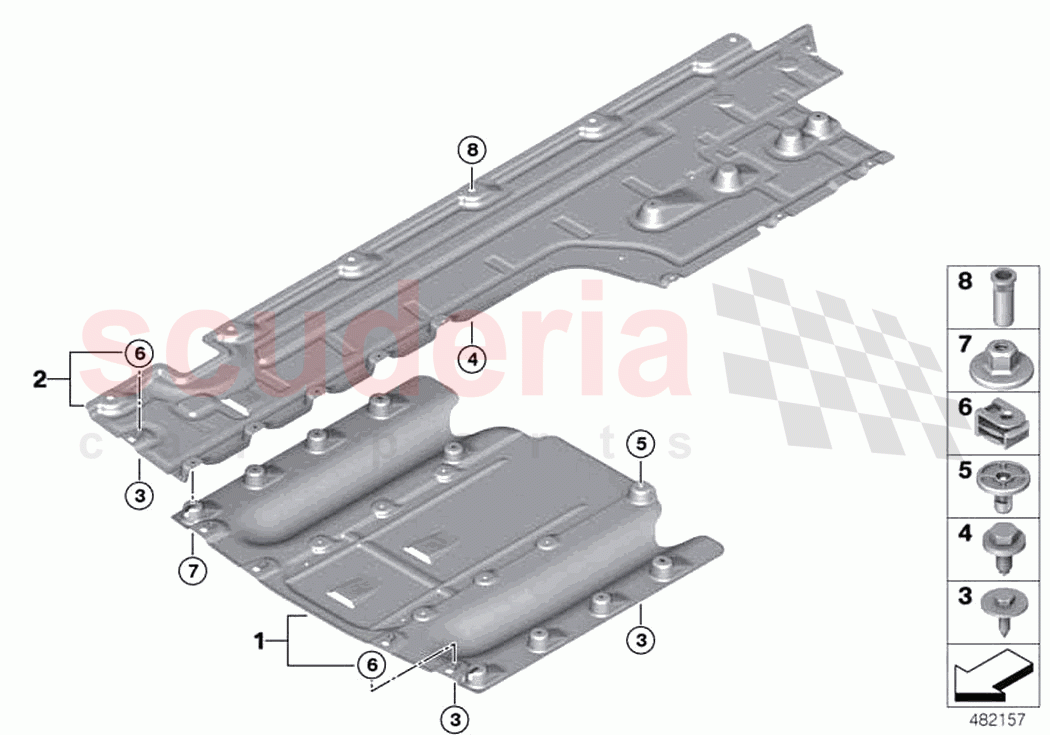

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51757409805	Underbody panelling, side left	Enquire	To Order
	51757409806	Underbody panelling, side right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905871	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147306224	Expanding nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147311312	C-clip plastic nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147169847	Plastic cap nut with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146989336	Blind rivet nut, flat headed	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	51757409792	Underfloor coating center	51757409792 Underfloor coating center	-	1	Enquire
01	51755A055E0	Underfloor coating center	51755A055E0 Underfloor coating center	-	1	Enquire
02	51757409805	Underbody panelling, side left	51757409805 Underbody panelling, side left	-	1	Enquire
02	51757409806	Underbody panelling, side right	51757409806 Underbody panelling, side right	-	1	Enquire
03	7149213164	Hex Bolt	7149213164 Hex Bolt TS5X20 SW8 D=22; from 01.2021	-	-	Enquire
03	7149481168	Hex Bolt	7149481168 Hex Bolt TS5X20SW10 D=22; to 01.2021	-	-	Enquire
03	7142644722	Hex Bolt	7142644722 Hex Bolt TS5X20SW10 D=22; to 01.2021	-	-	Enquire
04	7119905871	Hex Bolt with washer	7119905871 Hex Bolt with washer M6X25-U2	-	-	Enquire
05	7147306224	Expanding nut	7147306224 Expanding nut L= 19.9MM	-	-	Enquire
06	7147311312	C-clip plastic nut	7147311312 C-clip plastic nut TS5	-	-	Enquire
07	7147169847	Plastic cap nut with washer	7147169847 Plastic cap nut with washer D=22MM	-	-	Enquire
08	7146989336	Blind rivet nut, flat headed	7146989336 Blind rivet nut, flat headed M6	-	-	Enquire
