Mechanical connect and repair elements of Rolls Royce Rolls Royce Cullinan RR31(2017-2023)

View All

Rolls Royce Cullinan RR31(2017-2023) - Mechanical connect and repair elements

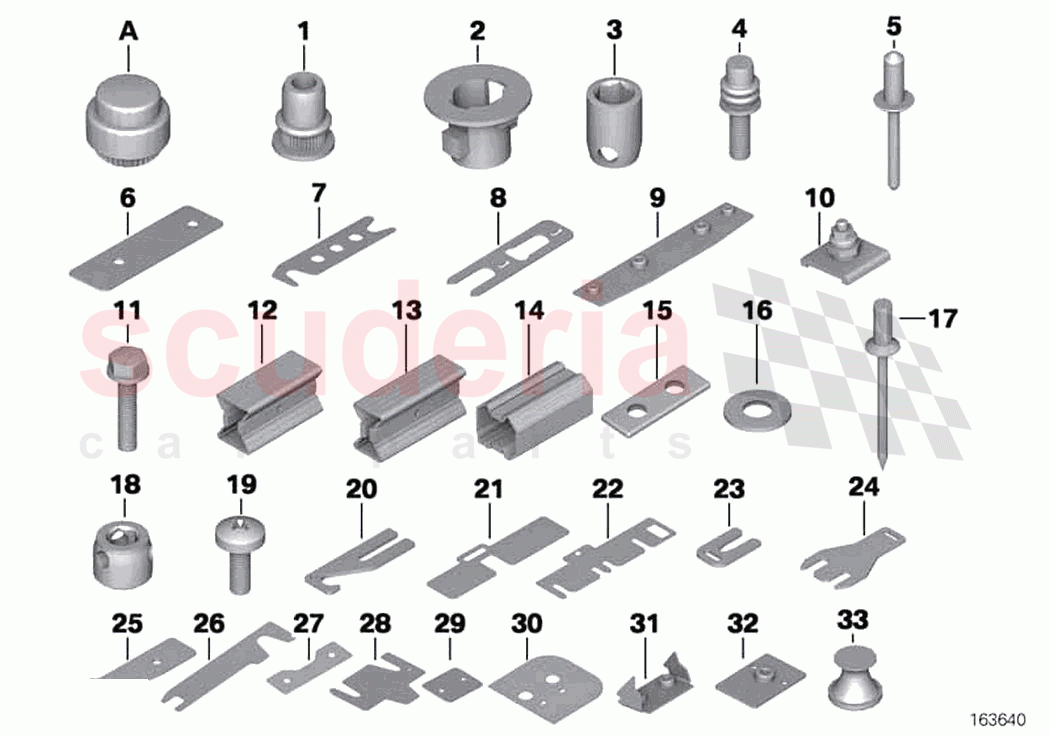

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7146986939	Blind rivet nut, flat headed	Enquire	To Order
	7146989331	Blind rivet nut, flat headed	Enquire	To Order
	7146989335	Blind rivet nut, flat headed	Enquire	To Order

...and 16 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	41007029666	Clip nut	Enquire	To Order
	41007029668	Clip nut	Enquire	To Order
	41007029667	Clip nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147156479	Threaded plug	Enquire	To Order
	41217066644	Threaded plug	Enquire	To Order
	41117064207	Threaded plug	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7146989348	Threaded bolt	Enquire	To Order
	7146989350	Threaded bolt	Enquire	To Order
	7146989354	Rivet pin	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7146950151	Blind rivet, flat headed	Enquire	To Order
	7147113271	Blind rivet	Enquire	To Order
	7147128043	Blind rivet, countersunk head	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	41617068311	Spacer plate, bonnet hinge	Enquire	To Order
	41617068312	Spacer plate, bonnet hinge	Enquire	To Order
	41617209751	Spacer plate, bonnet hinge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41110151305	Earth pin	Enquire	To Order
	41116912960	Earth pin	Enquire	To Order
	41246919376	Earth pin	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	41357129925	Spacer plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147117992	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41128266111	Coarse-threaded bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129902752	Punch rivet	Enquire	To Order
	7129902768	Punch rivet	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	7146986939	Blind rivet nut, flat headed	7146986939 Blind rivet nut, flat headed M6	-	-	Enquire
01	7146989331	Blind rivet nut, flat headed	7146989331 Blind rivet nut, flat headed M8	-	-	Enquire
01	7146989335	Blind rivet nut, flat headed	7146989335 Blind rivet nut, flat headed M8	-	-	Enquire
01	41117060530	Blind rivet nut, flat headed	41117060530 Blind rivet nut, flat headed M10	-	-	Enquire
01	7146989338	Blind rivet nut, flat headed	7146989338 Blind rivet nut, flat headed M8	-	-	Enquire
01	7146989341	Blind rivet nut, flat headed	7146989341 Blind rivet nut, flat headed M8	-	-	Enquire
01	41618241623	Blind rivet nut, flat headed	41618241623 Blind rivet nut, flat headed M8	-	-	Enquire
01	7147073599	Blind rivet nut, flat headed	7147073599 Blind rivet nut, flat headed M8	-	-	Enquire
01	7146989344	Blind rivet nut, flat headed	7146989344 Blind rivet nut, flat headed M6	-	-	Enquire
01	7147112482	Blind rivet nut, flat headed	7147112482 Blind rivet nut, flat headed M8	-	-	Enquire
01	41007058033	Blind rivet nut, flat headed	41007058033 Blind rivet nut, flat headed M10	-	-	Enquire
01	41128266650	Blind rivet nut, flat headed	41128266650 Blind rivet nut, flat headed M8	-	-	Enquire
01	7146989337	Blind rivet nut, flat headed	7146989337 Blind rivet nut, flat headed M5	-	-	Enquire
01	7149146352	Blind rivet nut, countersunk head	7149146352 Blind rivet nut, countersunk head M5 L=15MM	-	-	Enquire
01	41358268548	Blind rivet nut, countersunk head	41358268548 Blind rivet nut, countersunk head M4	-	-	Enquire
01	41148257673	Blind rivet nut, countersunk head	41148257673 Blind rivet nut, countersunk head M8	-	-	Enquire
01	41358241621	Blind rivet nut, flat headed	41358241621 Blind rivet nut, flat headed M6	-	-	Enquire
01	41118262614	Blind rivet nut, flat headed	41118262614 Blind rivet nut, flat headed M6	-	-	Enquire
01	7146989330	Blind rivet nut, flat headed	7146989330 Blind rivet nut, flat headed M6	-	-	Enquire
02	41007029666	Clip nut	41007029666 Clip nut M5	-	-	Enquire
02	41007029668	Clip nut	41007029668 Clip nut M8	-	-	Enquire
02	41007029667	Clip nut	41007029667 Clip nut M6	-	-	Enquire
03	7147156479	Threaded plug	7147156479 Threaded plug M6	-	-	Enquire
03	41217066644	Threaded plug	41217066644 Threaded plug M8	-	-	Enquire
03	41117064207	Threaded plug	41117064207 Threaded plug M10	-	-	Enquire
03	7147141729	Threaded plug	7147141729 Threaded plug M12X1.5	-	-	Enquire
03	7147141730	Threaded plug	7147141730 Threaded plug M14X1,5X14	-	-	Enquire
04	7146989348	Threaded bolt	7146989348 Threaded bolt M6	-	-	Enquire
04	7146989350	Threaded bolt	7146989350 Threaded bolt	-	-	Enquire
04	7146989354	Rivet pin	7146989354 Rivet pin M6X10,1	-	-	Enquire
04	7147151289	Blind rivet, countersunk head	7147151289 Blind rivet, countersunk head	-	-	Enquire
04	41118243395	Threaded bolt	41118243395 Threaded bolt M8	-	-	Enquire
04	41148243397	Threaded bolt	41148243397 Threaded bolt M8	-	-	Enquire
04	7149121638	Rivet pin with coarse thread	7149121638 Rivet pin with coarse thread 1,5-4,0 MM	-	-	Enquire
04	7147116813	Rivet pin	7147116813 Rivet pin M5X10,5	-	-	Enquire
04	7147133779	Rivet pin with coarse thread	7147133779 Rivet pin with coarse thread 0,5-3,0MM	-	-	Enquire
05	7146950151	Blind rivet, flat headed	7146950151 Blind rivet, flat headed 3,2X8	-	-	Enquire
05	7147113271	Blind rivet	7147113271 Blind rivet 4,8X9,5	-	-	Enquire
05	7147128043	Blind rivet, countersunk head	7147128043 Blind rivet, countersunk head 3,0X8,5	-	-	Enquire
05	41007054489	Blind rivet, flat headed	41007054489 Blind rivet, flat headed 6,5X14,9	-	-	Enquire
05	41007054384	Blind rivet, flat headed	41007054384 Blind rivet, flat headed 6,5X14,3	-	-	Enquire
05	41007054490	Blind rivet, flat headed	41007054490 Blind rivet, flat headed 6,5X18,3	-	-	Enquire
05	41007031968	Blind rivet, countersunk head	41007031968 Blind rivet, countersunk head B4,0X11,2	-	-	Enquire
05	41007031969	Blind rivet, flat headed	41007031969 Blind rivet, flat headed A6,5X16,3	-	-	Enquire
05	52107042164	Blind rivet	52107042164 Blind rivet 4,0X10	-	-	Enquire
07	41617068311	Spacer plate, bonnet hinge	41617068311 Spacer plate, bonnet hinge 1,0MM	-	-	Enquire
07	41617068312	Spacer plate, bonnet hinge	41617068312 Spacer plate, bonnet hinge 2,0MM	-	-	Enquire
07	41617209751	Spacer plate, bonnet hinge	41617209751 Spacer plate, bonnet hinge 0.5MM	-	-	Enquire
10	41110151305	Earth pin	41110151305 Earth pin M6	-	-	Enquire
10	41116912960	Earth pin	41116912960 Earth pin M8	-	-	Enquire
10	41246919376	Earth pin	41246919376 Earth pin M8	-	-	Enquire
10	41246919377	Earth pin	41246919377 Earth pin M6	-	-	Enquire
15	41357129925	Spacer plate	41357129925 Spacer plate	-	-	Enquire
16	7147117992	Spacer	7147117992 Spacer D=20,H=2,ID=6,4	-	-	Enquire
19	41128266111	Coarse-threaded bolt	41128266111 Coarse-threaded bolt L=15,5MM	-	-	Enquire
33	7129902752	Punch rivet	7129902752 Punch rivet 5MM	-	-	Enquire
33	7129902768	Punch rivet	7129902768 Punch rivet 3,35MM	-	-	Enquire
