Floorpan assembly of Rolls Royce Rolls Royce Cullinan RR31(2017-2023)

View All

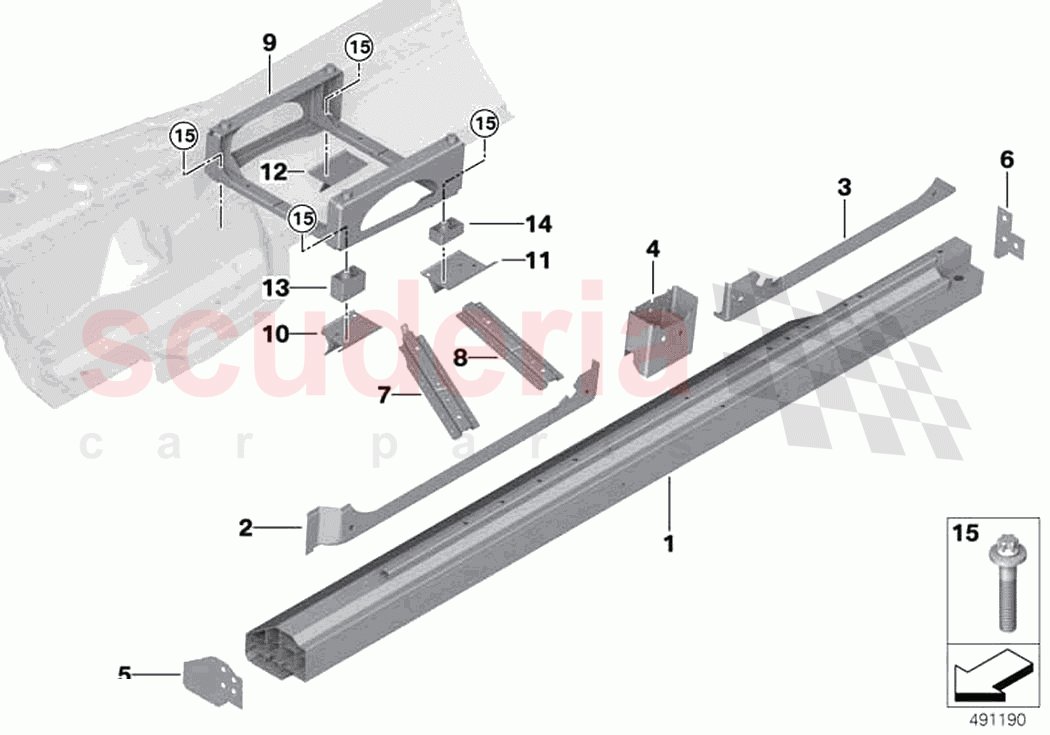

Rolls Royce Cullinan RR31(2017-2023) - Floorpan assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41008496989	Left side member	Enquire	To Order
	41008496990	Right side member	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008497003	Reinforcement, entrance, left	Enquire	To Order
	41008497004	Reinforcement, entrance, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008497005	Reinforcement entrance rear left	Enquire	To Order
	41008497006	Reinforcement entrance rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008497001	B-pillar base, left	Enquire	To Order
	41008497002	B-pillar base, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008496997	Lid side member	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008496999	Lid side member rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494585	Support, seat console, left	Enquire	To Order
	41008494586	Support, seat console, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494533	Reinforcement, engine support, top left	Enquire	To Order
	41008494534	Reinforcement, engine support, top right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717462003	Seat frame	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494571	Seat support, outer front left	Enquire	To Order
	41008494572	Seat support, outer front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494573	Seat console, rear outer left	Enquire	To Order
	41008494574	Seat console, rear outer right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494575	Seat console inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494569	Mounting for front seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494570	Mounting for rear seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907536	Torx bolt	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	41008496989	Left side member	41008496989 Left side member	-	1	Enquire
01	41008496990	Right side member	41008496990 Right side member	-	1	Enquire
02	41008497003	Reinforcement, entrance, left	41008497003 Reinforcement, entrance, left	-	1	Enquire
02	41008497004	Reinforcement, entrance, right	41008497004 Reinforcement, entrance, right	-	1	Enquire
03	41008497005	Reinforcement entrance rear left	41008497005 Reinforcement entrance rear left	-	1	Enquire
03	41008497006	Reinforcement entrance rear right	41008497006 Reinforcement entrance rear right	-	1	Enquire
04	41008497001	B-pillar base, left	41008497001 B-pillar base, left	-	1	Enquire
04	41008497002	B-pillar base, right	41008497002 B-pillar base, right	-	1	Enquire
05	41008496997	Lid side member	41008496997 Lid side member	-	2	Enquire
06	41008496999	Lid side member rear	41008496999 Lid side member rear	-	1	Enquire
07	41008494585	Support, seat console, left	41008494585 Support, seat console, left	-	1	Enquire
07	41008494586	Support, seat console, right	41008494586 Support, seat console, right	-	1	Enquire
08	41008494533	Reinforcement, engine support, top left	41008494533 Reinforcement, engine support, top left	-	1	Enquire
08	41008494534	Reinforcement, engine support, top right	41008494534 Reinforcement, engine support, top right	-	1	Enquire
09	51717462003	Seat frame	51717462003 Seat frame	-	1	Enquire
10	41008494571	Seat support, outer front left	41008494571 Seat support, outer front left	-	1	Enquire
10	41008494572	Seat support, outer front right	41008494572 Seat support, outer front right	-	1	Enquire
11	41008494573	Seat console, rear outer left	41008494573 Seat console, rear outer left	-	1	Enquire
11	41008494574	Seat console, rear outer right	41008494574 Seat console, rear outer right	-	1	Enquire
12	41008494575	Seat console inner	41008494575 Seat console inner	-	1	Enquire
13	41008494569	Mounting for front seat	41008494569 Mounting for front seat	-	2	Enquire
14	41008494570	Mounting for rear seat	41008494570 Mounting for rear seat	-	2	Enquire
15	7119907536	Torx bolt	7119907536 Torx bolt ASA M10X50 10.9	-	4	Enquire
