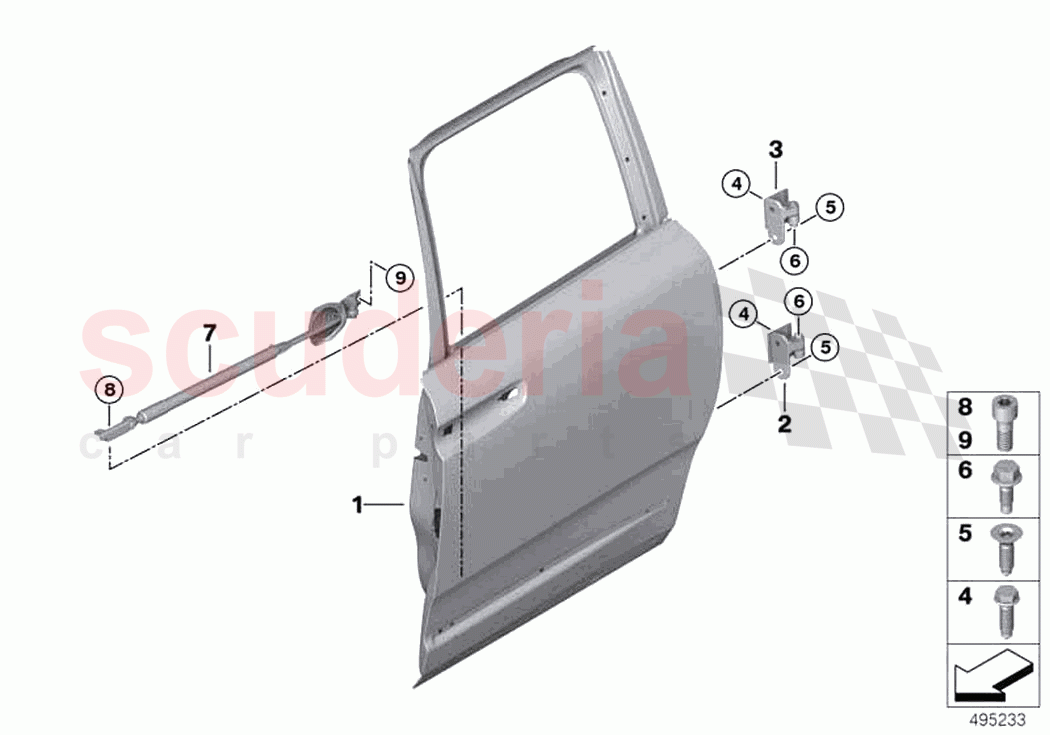

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7146979757	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147261771	Torx-countersunk screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147284478	Hexagon screw with flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904065	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129909447	ISA screw	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	41008737111	Door, rear left	41008737111 Door, rear left	-	1	Enquire
01	41008737112	Door, rear right	41008737112 Door, rear right	-	1	Enquire
02	41007497519	Hinge, rear door, lower, left	41007497519 Hinge, rear door, lower, left	-	1	Enquire
02	41007497520	Hinge, rear door, lower, right	41007497520 Hinge, rear door, lower, right	-	1	Enquire
03	41007497517	Hinge, rear door, upper, left	41007497517 Hinge, rear door, upper, left	-	1	Enquire
03	41007497518	Hinge, rear door, upper, right	41007497518 Hinge, rear door, upper, right	-	1	Enquire
04	7146979757	Hex Bolt	7146979757 Hex Bolt M12X48	-	2	Enquire
05	7147261771	Torx-countersunk screw	7147261771 Torx-countersunk screw ISA M8X29.5	-	4	Enquire
06	7147284478	Hexagon screw with flange	7147284478 Hexagon screw with flange M8X24	-	2	Enquire
07	51227448771	Door brake, rear left	51227448771 Door brake, rear left	-	1	Enquire
07	51227448772	Door brake, rear right	51227448772 Door brake, rear right	-	1	Enquire
08	7129904065	ISA screw	7129904065 ISA screw M8X20-8.8-ZNS3	-	4	Enquire
09	7129909447	ISA screw	7129909447 ISA screw M12X20-10.9	-	2	Enquire
