Name: Bonnet seals
Rating: 5.0 (1 reviews)

View All

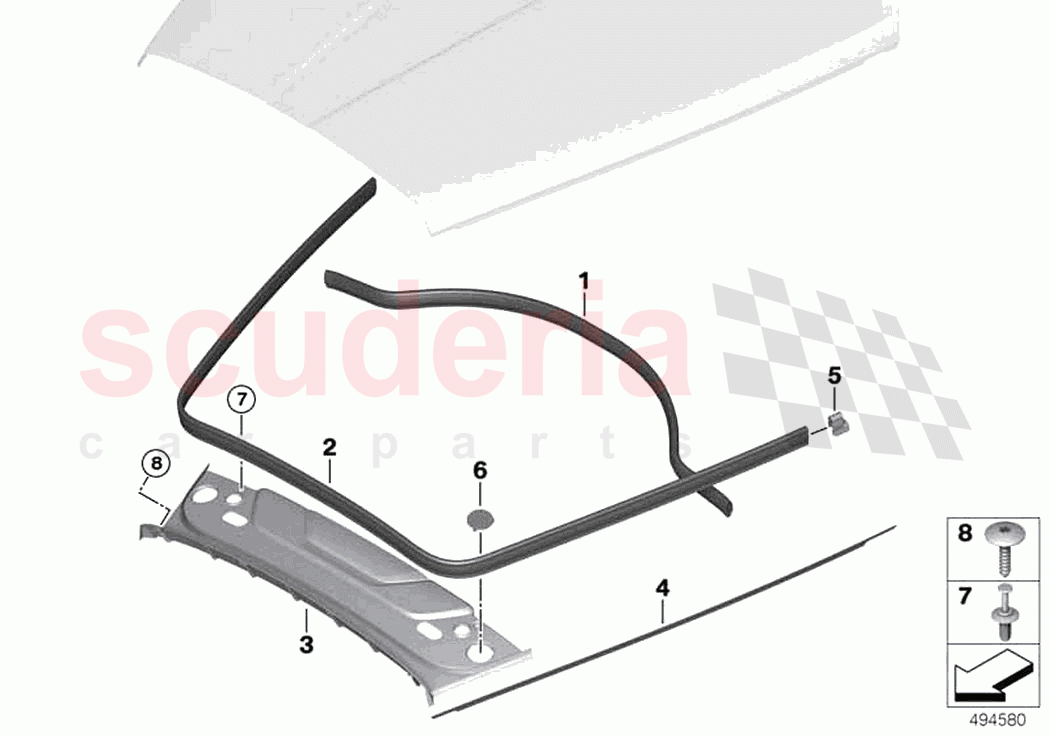

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51237450009	Gasket, bulkhead	$101.49	To Order

Photo	Part No	Description	Price (each)	Stock
	51237450006	Seal, engine bonnet, front	$105.52	To Order

Photo	Part No	Description	Price (each)	Stock
	51237450010	Cover, engine compartment front	$732.62	To Order
	51765A12F88	Cover, engine compartment front	$732.62	To Order

Photo	Part No	Description	Price (each)	Stock
	51767243147	Cover	$140.09	To Order

Photo	Part No	Description	Price (each)	Stock
	51111908077	Expanding rivet	$0.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7147374376	Fillister head screw	$2.14	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	51237450009	Gasket, bulkhead	51237450009 Gasket, bulkhead	$101.49	1
02	51237450006	Seal, engine bonnet, front	51237450006 Seal, engine bonnet, front	$105.52	1
03	51237450010	Cover, engine compartment front	51237450010 Cover, engine compartment front from 07.2020	$732.62	1
03	51765A12F88	Cover, engine compartment front	51765A12F88 Cover, engine compartment front BADGE	$732.62	1
04	51769466357	Caulking left	51769466357 Caulking left	$364.77	1
04	51769466358	Caulking right	51769466358 Caulking right	$364.77	1
05	51137933595	Covering left	51137933595 Covering left	$34.51	1
05	51137933596	Covering right	51137933596 Covering right	$36.99	1
06	51767243147	Cover	51767243147 Cover	$140.09	2
07	51111908077	Expanding rivet IN STOCK	51111908077 Expanding rivet D = 6MM IN STOCK	$0.48	2
08	7147374376	Fillister head screw IN STOCK	7147374376 Fillister head screw IN STOCK	$2.14	4

Bonnet Seals

Rolls Royce Cullinan RR31(2017-2023)
