Name: Cavity shielding side frame
Rating: 4.6 (1 reviews)

View All

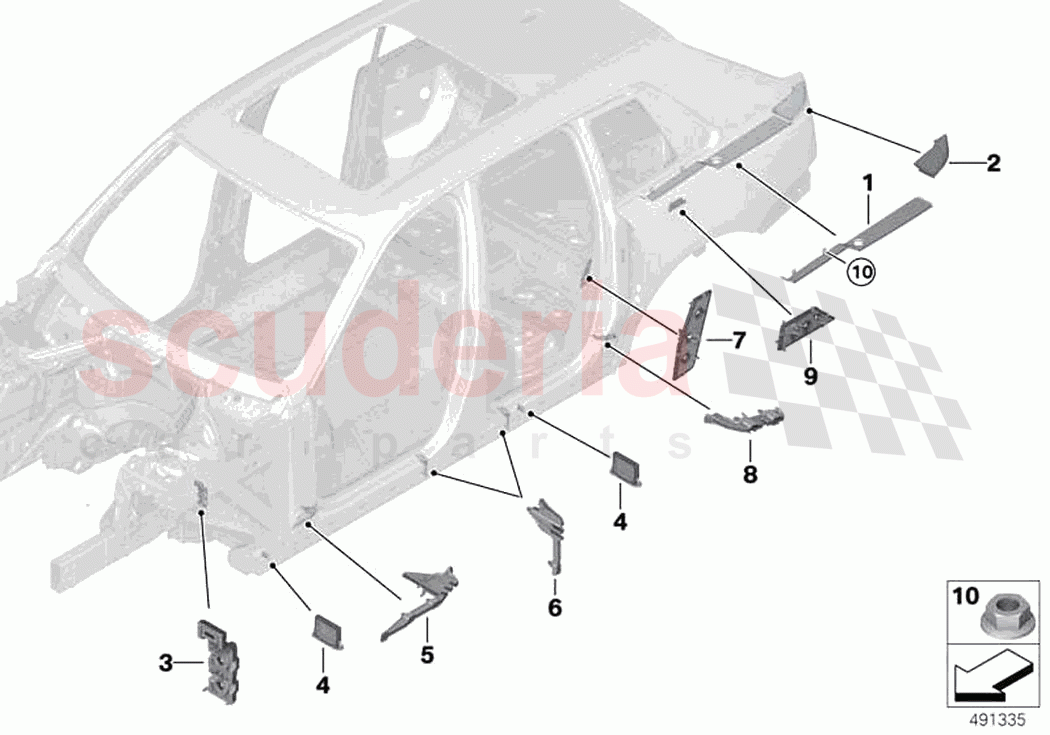

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41007436817	Shaped part rear side panel left	$1,120.36	To Order
	41007436818	Shaped part rear side panel right	$1,120.36	To Order

Photo	Part No	Description	Price (each)	Stock
	41007437235	Moulded part, side panel, left	$73.22	To Order
	41007437236	Moulded part, side panel, right	$73.22	To Order
	41009625649	Moulded part, side panel, left	$156.27	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	41009625647	Moulded part engine support	$183.29	To Order

Photo	Part No	Description	Price (each)	Stock
	41007467106	Shaped part side member	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007490461	Moulded part column A, bottom int.	$37.60	To Order

Photo	Part No	Description	Price (each)	Stock
	41007487410	Shaped part B-pillar bottom	$41.45	To Order

Photo	Part No	Description	Price (each)	Stock
	41009625652	Shaped part crossmember rearaxle support	$496.11	To Order

Photo	Part No	Description	Price (each)	Stock
	41007490463	Moulded part column C, exterior bottom	$3,343.53	To Order

Photo	Part No	Description	Price (each)	Stock
	41009625672	Shaped part cross member	$172.52	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905544	Hex nut with plate	$0.89	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	41007436817	Shaped part rear side panel left	41007436817 Shaped part rear side panel left	$1,120.36	1
01	41007436818	Shaped part rear side panel right	41007436818 Shaped part rear side panel right	$1,120.36	1
02	41007437235	Moulded part, side panel, left	41007437235 Moulded part, side panel, left from 12.2021	$73.22	1
02	41007437236	Moulded part, side panel, right	41007437236 Moulded part, side panel, right from 12.2021	$73.22	1
02	41009625649	Moulded part, side panel, left	41009625649 Moulded part, side panel, left	$156.27	1
02	41009625650	Moulded part, side panel, right	41009625650 Moulded part, side panel, right	$161.48	1
03	41009625647	Moulded part engine support	41009625647 Moulded part engine support	$183.29	1
04	41007467106	Shaped part side member	41007467106 Shaped part side member	-	2	Enquire
05	41007490461	Moulded part column A, bottom int.	41007490461 Moulded part column A, bottom int.	$37.60	1
06	41007487410	Shaped part B-pillar bottom	41007487410 Shaped part B-pillar bottom	$41.45	2
07	41009625652	Shaped part crossmember rearaxle support	41009625652 Shaped part crossmember rearaxle support	$496.11	2
08	41007490463	Moulded part column C, exterior bottom	41007490463 Moulded part column C, exterior bottom	$3,343.53	2
09	41009625672	Shaped part cross member	41009625672 Shaped part cross member	$172.52	2
10	7119905544	Hex nut with plate	7119905544 Hex nut with plate M6-8-ZNNIV SI	$0.89	5
