Lateral trunk floor trim panel of Rolls Royce Rolls Royce Cullinan RR31(2017-2023)

View All

Rolls Royce Cullinan RR31(2017-2023) - Lateral trunk floor trim panel

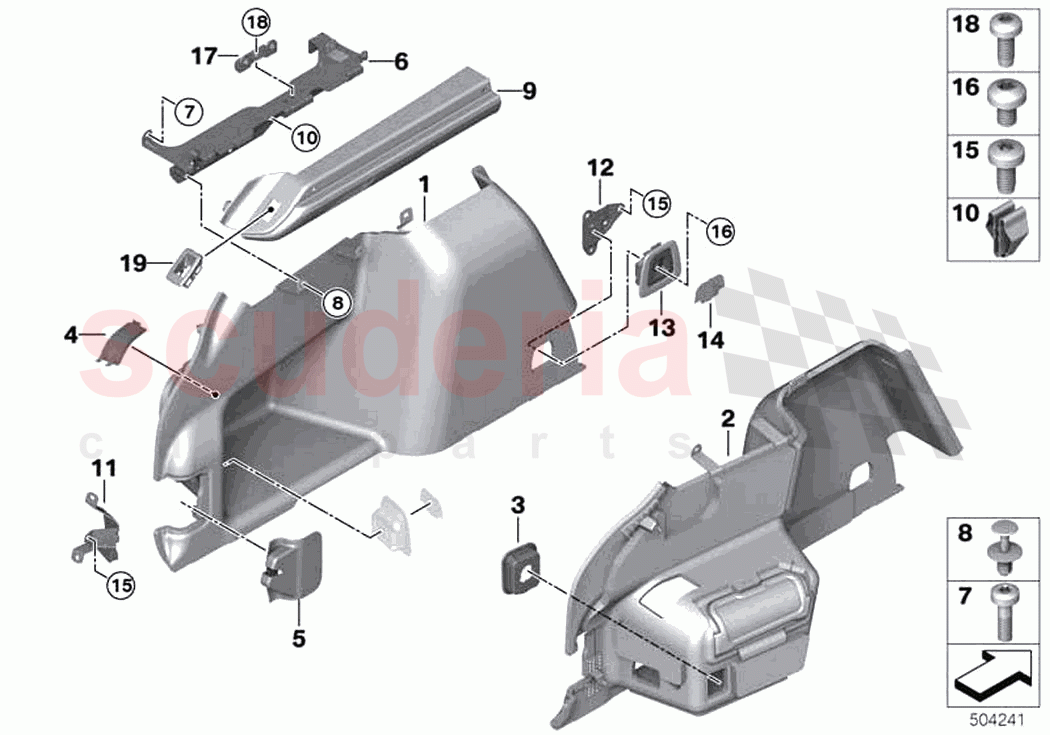

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51478499803	Trunk trim, left	Enquire	To Order
	51478499805	Trunk trim, left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51478499804	Trunk trim panel, right	Enquire	To Order
	51478499806	Trunk trim panel, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51477040621	Socket mount	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51477474327	Covering left	Enquire	To Order
	51477474328	Covering right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51477474333	Trim lock left	Enquire	To Order
	51477474334	Trim lock right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51477449643	Carrier, capping, left	Enquire	To Order
	51477449644	Carrier, capping, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907517	Countersunk screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51471911992	Expanding rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51478499809	Trim panel, capping, luggage comp., left	Enquire	To Order
	51478499810	Trim panel, capping, luggage comp.,right	Enquire	To Order
	51478499807	Trim panel, capping, luggage comp., left	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7147321144	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51477449621	Bracket for rear left lashing eye	Enquire	To Order
	51477449622	Bracket for rear right lashing eye	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51477449623	Holder, lashing eye, front left	Enquire	To Order
	51477449624	Holder, lashing eye, front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51477348517	Lashing eye	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51477361448	Fastening loop cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129908674	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147287157	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51477474272	Holder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149241365	Oval-head screw, self-tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51427479245	Switch trim left	Enquire	To Order
	51427479246	Switch trim right	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	51478499803	Trunk trim, left	51478499803 Trunk trim, left COLOUR NEUTRAL	-	1	Enquire
01	51478499805	Trunk trim, left	51478499805 Trunk trim, left COLOUR NEUTRAL	-	1	Enquire
02	51478499804	Trunk trim panel, right	51478499804 Trunk trim panel, right COLOUR NEUTRAL	-	1	Enquire
02	51478499806	Trunk trim panel, right	51478499806 Trunk trim panel, right COLOUR NEUTRAL	-	1	Enquire
03	51477040621	Socket mount	51477040621 Socket mount	-	1	Enquire
04	51477474327	Covering left	51477474327 Covering left	-	1	Enquire
04	51477474328	Covering right	51477474328 Covering right	-	1	Enquire
05	51477474333	Trim lock left	51477474333 Trim lock left	-	1	Enquire
05	51477474334	Trim lock right	51477474334 Trim lock right	-	1	Enquire
06	51477449643	Carrier, capping, left	51477449643 Carrier, capping, left	-	1	Enquire
06	51477449644	Carrier, capping, right	51477449644 Carrier, capping, right	-	1	Enquire
07	7119907517	Countersunk screw	7119907517 Countersunk screw M6X20-8.8-ZNNIV	-	6	Enquire
08	51471911992	Expanding rivet	51471911992 Expanding rivet D = 8MM	-	6	Enquire
09	51478499809	Trim panel, capping, luggage comp., left	51478499809 Trim panel, capping, luggage comp., left COLOUR NEUTRAL	-	1	Enquire
09	51478499810	Trim panel, capping, luggage comp.,right	51478499810 Trim panel, capping, luggage comp.,right COLOUR NEUTRAL	-	1	Enquire
09	51478499807	Trim panel, capping, luggage comp., left	51478499807 Trim panel, capping, luggage comp., left COLOUR NEUTRAL	-	1	Enquire
09	51478499808	Trim panel, capping, luggage comp.,right	51478499808 Trim panel, capping, luggage comp.,right COLOUR NEUTRAL	-	1	Enquire
09	51477932765	Trim panel, capping, luggage comp., left	51477932765 Trim panel, capping, luggage comp., left COLOUR NEUTRAL	-	1	Enquire
09	51477932766	Trim panel, capping, luggage comp.,right	51477932766 Trim panel, capping, luggage comp.,right COLOUR NEUTRAL	-	1	Enquire
09	51477932761	Trim panel, capping, luggage comp., left	51477932761 Trim panel, capping, luggage comp., left COLOUR NEUTRAL	-	1	Enquire
09	51477932762	Trim panel, capping, luggage comp.,right	51477932762 Trim panel, capping, luggage comp.,right COLOUR NEUTRAL	-	1	Enquire
10	7147321144	Clamp	7147321144 Clamp	-	6	Enquire
11	51477449621	Bracket for rear left lashing eye	51477449621 Bracket for rear left lashing eye	-	1	Enquire
11	51477449622	Bracket for rear right lashing eye	51477449622 Bracket for rear right lashing eye	-	1	Enquire
12	51477449623	Holder, lashing eye, front left	51477449623 Holder, lashing eye, front left	-	1	Enquire
12	51477449624	Holder, lashing eye, front right	51477449624 Holder, lashing eye, front right	-	1	Enquire
13	51477348517	Lashing eye	51477348517 Lashing eye	-	4	Enquire
14	51477361448	Fastening loop cap	51477361448 Fastening loop cap	-	4	Enquire
15	7129908674	Screw	7129908674 Screw V-M8GFX18-SP-10	-	12	Enquire
16	7147287157	Torx-bolt with washer	7147287157 Torx-bolt with washer ISA M8X11	-	4	Enquire
17	51477474272	Holder	51477474272 Holder	-	2	Enquire
18	7149241365	Oval-head screw, self-tapping	7149241365 Oval-head screw, self-tapping M5X12	-	4	Enquire
19	51427479245	Switch trim left	51427479245 Switch trim left	-	1	Enquire
19	51427479246	Switch trim right	51427479246 Switch trim right	-	1	Enquire
