Instrument panel upper part of Rolls Royce Rolls Royce Cullinan RR31(2017-2023)

View All

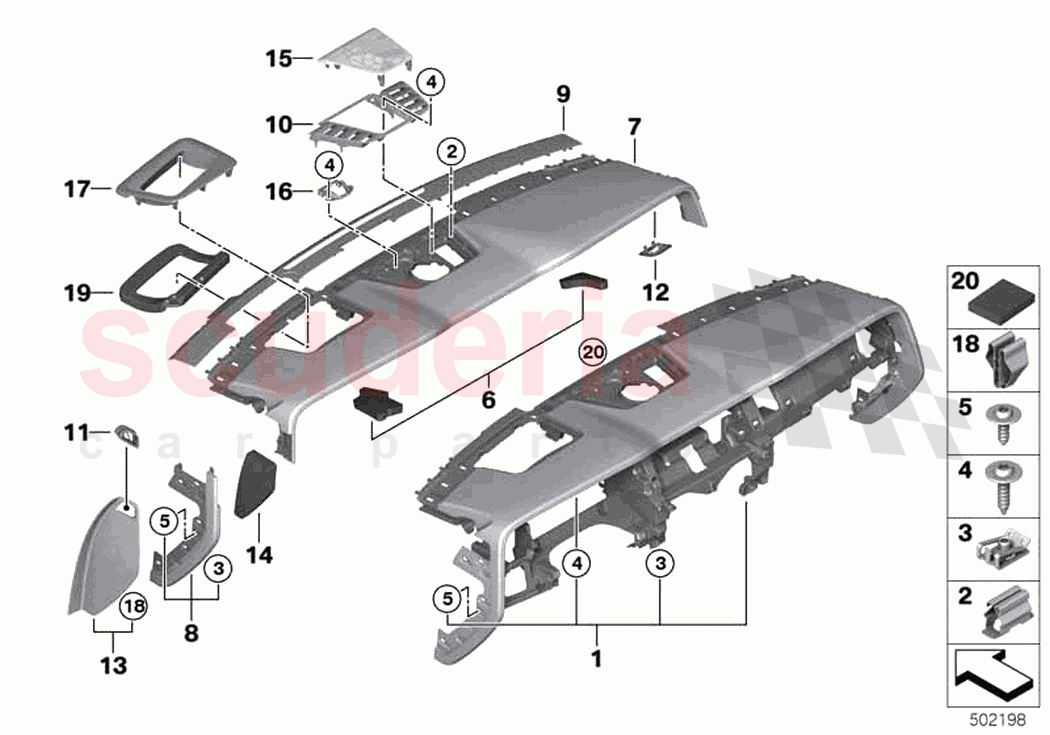

Rolls Royce Cullinan RR31(2017-2023) - Instrument panel upper part

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51459490760	Instrument panel, upper part	Enquire	To Order
	51459490762	Instrument panel, upper part	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147213397	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149496754	C-clip sheet metal nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149197038	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149200941	Oval-head screw with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51452353024	Set felt strip adhesive	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51456835884	Instrument panel top	Enquire	To Order
	51457942126	Instrument panel top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51456803270	Instrument panel top right	Enquire	To Order
	51456803285	Instrument panel top left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51459352428	Trim windscreen defroster	Enquire	To Order
	51459352429	Trim windscreen defroster	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51459458688	Trim for ventilation outlet centre	Enquire	To Order
	51459892825	Trim for ventilation outlet centre	Enquire	To Order
	51459458691	Trim for ventilation outlet centre	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51456803273	Cover, side window defroster, left	Enquire	To Order
	51456803274	Cover, side window defroster, right	Enquire	To Order
	51459892823	Cover, side window defroster, left	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51437040880	Switch cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51456803307	Cover, instrument panel, left	Enquire	To Order
	51456803308	Cover, instrument panel, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51459399130	Sound insulating lateral trim panelrigh	Enquire	To Order
	51459399133	Sound insulating lateral trim panel left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51456999708	Trim, centre speaker	Enquire	To Order
	51459892820	Trim, centre speaker	Enquire	To Order
	51456999711	Trim, centre speaker	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51459349932	Adapter, centre speaker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51459460323	Trim piece for head-up display	Enquire	To Order
	51457910348	Trim piece for head-up display	Enquire	To Order
	51459460324	Trim piece for head-up display	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7147321144	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51459389749	Sound insulation, head-up display	Enquire	To Order
	51459393861	Sound insulation, head-up display	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	51459490760	Instrument panel, upper part	51459490760 Instrument panel, upper part COLOUR NEUTRAL	-	1	Enquire
01	51459490762	Instrument panel, upper part	51459490762 Instrument panel, upper part COLOUR NEUTRAL	-	1	Enquire
02	7147213397	Clamp	7147213397 Clamp	-	13	Enquire
03	7149496754	C-clip sheet metal nut	7149496754 C-clip sheet metal nut	-	12	Enquire
04	7149197038	Fillister head screw	7149197038 Fillister head screw DELTA PT4X16	-	22	Enquire
05	7149200941	Oval-head screw with washer	7149200941 Oval-head screw with washer DELTA PT4X12	-	2	Enquire
06	51452353024	Set felt strip adhesive	51452353024 Set felt strip adhesive	-	2	Enquire
07	51456835884	Instrument panel top	51456835884 Instrument panel top COLOUR NEUTRAL	-	1	Enquire
07	51457942126	Instrument panel top	51457942126 Instrument panel top COLOUR NEUTRAL	-	1	Enquire
08	51456803270	Instrument panel top right	51456803270 Instrument panel top right COLOUR NEUTRAL	-	1	Enquire
08	51456803285	Instrument panel top left	51456803285 Instrument panel top left COLOUR NEUTRAL	-	1	Enquire
09	51459352428	Trim windscreen defroster	51459352428 Trim windscreen defroster	-	1	Enquire
09	51459352429	Trim windscreen defroster	51459352429 Trim windscreen defroster	-	1	Enquire
10	51459458688	Trim for ventilation outlet centre	51459458688 Trim for ventilation outlet centre BLACK	-	1	Enquire
10	51459892825	Trim for ventilation outlet centre	51459892825 Trim for ventilation outlet centre HAVANNA	-	1	Enquire
10	51459458691	Trim for ventilation outlet centre	51459458691 Trim for ventilation outlet centre ARDENT RED	-	1	Enquire
10	51459458689	Trim for ventilation outlet centre	51459458689 Trim for ventilation outlet centre NAVY BLUE	-	1	Enquire
10	51459458690	Trim for ventilation outlet centre	51459458690 Trim for ventilation outlet centre DARK SPICE	-	1	Enquire
10	51459458692	Trim for ventilation outlet centre	51459458692 Trim for ventilation outlet centre SCIVARO GREY	-	1	Enquire
11	51456803273	Cover, side window defroster, left	51456803273 Cover, side window defroster, left BLACK	-	1	Enquire
11	51456803274	Cover, side window defroster, right	51456803274 Cover, side window defroster, right BLACK	-	1	Enquire
11	51459892823	Cover, side window defroster, left	51459892823 Cover, side window defroster, left HAVANNA	-	1	Enquire
11	51459892824	Cover, side window defroster, right	51459892824 Cover, side window defroster, right HAVANNA	-	1	Enquire
11	51459460337	Cover, side window defroster, left	51459460337 Cover, side window defroster, left ARDENT RED	-	1	Enquire
11	51459460338	Cover, side window defroster, right	51459460338 Cover, side window defroster, right ARDENT RED	-	1	Enquire
11	51459460333	Cover, side window defroster, left	51459460333 Cover, side window defroster, left NAVY BLUE	-	1	Enquire
11	51459460334	Cover, side window defroster, right	51459460334 Cover, side window defroster, right NAVY BLUE	-	1	Enquire
11	51459460335	Cover, side window defroster, left	51459460335 Cover, side window defroster, left DARK SPICE	-	1	Enquire
11	51459460336	Cover, side window defroster, right	51459460336 Cover, side window defroster, right DARK SPICE	-	1	Enquire
11	51459460339	Cover, side window defroster, left	51459460339 Cover, side window defroster, left SCIVARO GREY	-	1	Enquire
11	51459460340	Cover, side window defroster, right	51459460340 Cover, side window defroster, right SCIVARO GREY	-	1	Enquire
12	51437040880	Switch cover	51437040880 Switch cover	-	3	Enquire
13	51456803307	Cover, instrument panel, left	51456803307 Cover, instrument panel, left COLOUR NEUTRAL	-	1	Enquire
13	51456803308	Cover, instrument panel, right	51456803308 Cover, instrument panel, right COLOUR NEUTRAL	-	1	Enquire
14	51459399130	Sound insulating lateral trim panelrigh	51459399130 Sound insulating lateral trim panelrigh	-	1	Enquire
14	51459399133	Sound insulating lateral trim panel left	51459399133 Sound insulating lateral trim panel left	-	1	Enquire
15	51456999708	Trim, centre speaker	51456999708 Trim, centre speaker BLACK	-	1	Enquire
15	51459892820	Trim, centre speaker	51459892820 Trim, centre speaker HAVANNA	-	1	Enquire
15	51456999711	Trim, centre speaker	51456999711 Trim, centre speaker ARDENT RED	-	1	Enquire
15	51456999709	Trim, centre speaker	51456999709 Trim, centre speaker NAVY BLUE	-	1	Enquire
15	51456999710	Trim, centre speaker	51456999710 Trim, centre speaker DARK SPICE	-	1	Enquire
15	51456999712	Trim, centre speaker	51456999712 Trim, centre speaker SCIVARO GREY	-	1	Enquire
16	51459349932	Adapter, centre speaker	51459349932 Adapter, centre speaker	-	1	Enquire
17	51459460323	Trim piece for head-up display	51459460323 Trim piece for head-up display BLACK	-	1	Enquire
17	51457910348	Trim piece for head-up display	51457910348 Trim piece for head-up display HAVANNA	-	1	Enquire
17	51459460324	Trim piece for head-up display	51459460324 Trim piece for head-up display NAVY BLUE	-	1	Enquire
17	51459460325	Trim piece for head-up display	51459460325 Trim piece for head-up display DARK SPICE	-	1	Enquire
17	51459460327	Trim piece for head-up display	51459460327 Trim piece for head-up display SCIVARO GREY	-	1	Enquire
17	51459460326	Trim piece for head-up display	51459460326 Trim piece for head-up display ARDENT RED	-	1	Enquire
17	51459460328	Trim piece for head-up display	51459460328 Trim piece for head-up display BLACK	-	1	Enquire
17	51457910349	Trim piece for head-up display	51457910349 Trim piece for head-up display HAVANNA	-	1	Enquire
17	51459460330	Trim piece for head-up display	51459460330 Trim piece for head-up display ARDENT RED	-	1	Enquire
17	51459460332	Trim piece for head-up display	51459460332 Trim piece for head-up display NAVY BLUE	-	1	Enquire
17	51459460329	Trim piece for head-up display	51459460329 Trim piece for head-up display DARRK SPICE	-	1	Enquire
17	51459460331	Trim piece for head-up display	51459460331 Trim piece for head-up display SCIVARO GREY	-	1	Enquire
18	7147321144	Clamp	7147321144 Clamp	-	5	Enquire
19	51459389749	Sound insulation, head-up display	51459389749 Sound insulation, head-up display	-	1	Enquire
19	51459393861	Sound insulation, head-up display	51459393861 Sound insulation, head-up display	-	1	Enquire
