Door trim panel front of Rolls Royce Rolls Royce Cullinan RR31(2017-2023)

View All

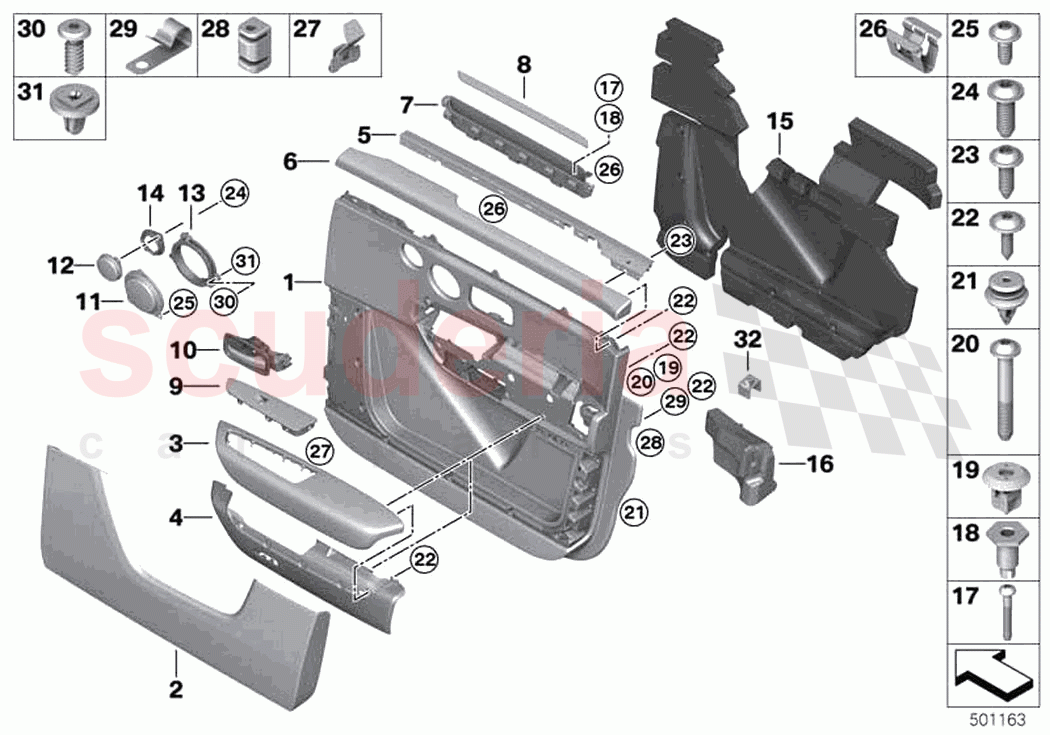

Rolls Royce Cullinan RR31(2017-2023) - Door trim panel front

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51417466931	Door trim panel left	Enquire	To Order
	51417466932	Door trim panel right	Enquire	To Order
	51419109913	Door trim panel left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51417466933	Map pocket, front left	Enquire	To Order
	51417466934	Map pocket, front right	Enquire	To Order
	51409893567	Map pocket, front left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51417466947	Armrest, front left	Enquire	To Order
	51417466948	Armrest, front right	Enquire	To Order
	51417472117	Armrest, front left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51417449129	Armrest bottom front left	Enquire	To Order
	51417449130	Armrest bottom front right	Enquire	To Order
	51417449125	Armrest bottom front left	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51417449157	Capping, outer left	Enquire	To Order
	51417449158	Capping, outer right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417466935	Capping, inner left	Enquire	To Order
	51417466936	Capping, inner right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417462819	Handle recess, left	Enquire	To Order
	51417462820	Handle recess, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51227437291	Insert for handle recess left	Enquire	To Order
	51227437292	Insert for handle recess right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417416643	Trim, switch cluster, left	Enquire	To Order
	51417416644	Trim, switch cluster, left	Enquire	To Order
	51417468042	Trim, switch cluster, right	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51216956873	Handle, door release, front left	Enquire	To Order
	51216956874	Handle, door release, front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51409475178	Speaker cover, mid-range speaker	Enquire	To Order
	51469475179	Speaker cover, mid-range speaker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51427416639	Speaker cover, tweeter	Enquire	To Order
	51467487807	Speaker cover, tweeter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51427405643	Spacer ring, speaker, rear left	Enquire	To Order
	51427405644	Spacer ring, speaker, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51427443803	Mounting for tweeter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51487449107	Fleece left	Enquire	To Order
	51487449108	Fleece right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717448769	Crash pad, left	Enquire	To Order
	51717448770	Crash pad, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207076848	Oval-head screw with anti-rotation lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147220168	Compensator bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147265039	Expanding nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147277470	Torx bolt for plastic material	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417056298	Clip, yellow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147122392	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167072159	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147459065	screw for plastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147151805	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149172157	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417277443	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417943258	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51217231100	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149186707	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65138387414	Expanding nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51415A56CC9	Door handle pin	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	51417466931	Door trim panel left	51417466931 Door trim panel left COLOUR NEUTRAL	-	1	Enquire
01	51417466932	Door trim panel right	51417466932 Door trim panel right COLOUR NEUTRAL	-	1	Enquire
01	51419109913	Door trim panel left	51419109913 Door trim panel left COLOUR NEUTRAL	-	1	Enquire
01	51419109914	Door trim panel right	51419109914 Door trim panel right COLOUR NEUTRAL	-	1	Enquire
02	51417466933	Map pocket, front left	51417466933 Map pocket, front left COLOUR NEUTRAL	-	1	Enquire
02	51417466934	Map pocket, front right	51417466934 Map pocket, front right COLOUR NEUTRAL	-	1	Enquire
02	51409893567	Map pocket, front left	51409893567 Map pocket, front left COLOUR NEUTRAL	-	1	Enquire
02	51409893568	Map pocket, front right	51409893568 Map pocket, front right COLOUR NEUTRAL	-	1	Enquire
03	51417466947	Armrest, front left	51417466947 Armrest, front left COLOUR NEUTRAL	-	1	Enquire
03	51417466948	Armrest, front right	51417466948 Armrest, front right COLOUR NEUTRAL	-	1	Enquire
03	51417472117	Armrest, front left	51417472117 Armrest, front left COLOUR NEUTRAL	-	1	Enquire
03	51417472118	Armrest, front right	51417472118 Armrest, front right COLOUR NEUTRAL	-	1	Enquire
04	51417449129	Armrest bottom front left	51417449129 Armrest bottom front left QUOTE VENEER	-	1	Enquire
04	51417449130	Armrest bottom front right	51417449130 Armrest bottom front right QUOTE VENEER	-	1	Enquire
04	51417449125	Armrest bottom front left	51417449125 Armrest bottom front left QUOTE VENEER	-	1	Enquire
04	51417449126	Armrest bottom front right	51417449126 Armrest bottom front right QUOTE VENEER	-	1	Enquire
04	51417449137	Armrest bottom front left	51417449137 Armrest bottom front left QUOTE VENEER	-	1	Enquire
04	51417449138	Armrest bottom front right	51417449138 Armrest bottom front right QUOTE VENEER	-	1	Enquire
04	51417449135	Armrest bottom front left	51417449135 Armrest bottom front left QUOTE VENEER	-	1	Enquire
04	51417449136	Armrest bottom front right	51417449136 Armrest bottom front right QUOTE VENEER	-	1	Enquire
05	51417449157	Capping, outer left	51417449157 Capping, outer left	-	1	Enquire
05	51417449158	Capping, outer right	51417449158 Capping, outer right	-	1	Enquire
06	51417466935	Capping, inner left	51417466935 Capping, inner left COLOUR NEUTRAL	-	1	Enquire
06	51417466936	Capping, inner right	51417466936 Capping, inner right COLOUR NEUTRAL	-	1	Enquire
07	51417462819	Handle recess, left	51417462819 Handle recess, left	-	1	Enquire
07	51417462820	Handle recess, right	51417462820 Handle recess, right	-	1	Enquire
08	51227437291	Insert for handle recess left	51227437291 Insert for handle recess left COLOUR NEUTRAL	-	1	Enquire
08	51227437292	Insert for handle recess right	51227437292 Insert for handle recess right COLOUR NEUTRAL	-	1	Enquire
09	51417416643	Trim, switch cluster, left	51417416643 Trim, switch cluster, left	-	1	Enquire
09	51417416644	Trim, switch cluster, left	51417416644 Trim, switch cluster, left	-	1	Enquire
09	51417468042	Trim, switch cluster, right	51417468042 Trim, switch cluster, right	-	1	Enquire
09	51417468055	Trim, switch cluster, left	51417468055 Trim, switch cluster, left	-	1	Enquire
10	51216956873	Handle, door release, front left	51216956873 Handle, door release, front left BLUE CHROME	-	1	Enquire
10	51216956874	Handle, door release, front right	51216956874 Handle, door release, front right BLUE CHROME	-	1	Enquire
11	51409475178	Speaker cover, mid-range speaker	51409475178 Speaker cover, mid-range speaker	-	2	Enquire
11	51469475179	Speaker cover, mid-range speaker	51469475179 Speaker cover, mid-range speaker	-	2	Enquire
12	51427416639	Speaker cover, tweeter	51427416639 Speaker cover, tweeter	-	2	Enquire
12	51467487807	Speaker cover, tweeter	51467487807 Speaker cover, tweeter	-	2	Enquire
13	51427405643	Spacer ring, speaker, rear left	51427405643 Spacer ring, speaker, rear left	-	1	Enquire
13	51427405644	Spacer ring, speaker, rear right	51427405644 Spacer ring, speaker, rear right	-	1	Enquire
14	51427443803	Mounting for tweeter	51427443803 Mounting for tweeter	-	1	Enquire
15	51487449107	Fleece left	51487449107 Fleece left	-	1	Enquire
15	51487449108	Fleece right	51487449108 Fleece right	-	1	Enquire
16	51717448769	Crash pad, left	51717448769 Crash pad, left	-	1	Enquire
16	51717448770	Crash pad, right	51717448770 Crash pad, right	-	1	Enquire
17	52207076848	Oval-head screw with anti-rotation lock	52207076848 Oval-head screw with anti-rotation lock ISA M6X40	-	6	Enquire
18	7147220168	Compensator bush	7147220168 Compensator bush	-	6	Enquire
19	7147265039	Expanding nut	7147265039 Expanding nut	-	2	Enquire
20	7147277470	Torx bolt for plastic material	7147277470 Torx bolt for plastic material 5.2X20 ISA	-	2	Enquire
21	51417056298	Clip, yellow	51417056298 Clip, yellow	-	10	Enquire
22	7147122392	Fillister head screw	7147122392 Fillister head screw	-	35	Enquire
23	51167072159	Fillister head screw	51167072159 Fillister head screw ISA 4X14MM	-	11	Enquire
24	7147459065	screw for plastic	7147459065 screw for plastic	-	3	Enquire
25	7147151805	Fillister head screw	7147151805 Fillister head screw	-	2	Enquire
26	7149172157	Clamp	7149172157 Clamp	-	12	Enquire
27	51417277443	Clamp	51417277443 Clamp	-	8	Enquire
28	51417943258	Spacer	51417943258 Spacer	-	5	Enquire
29	51217231100	Clip	51217231100 Clip	-	4	Enquire
30	7149186707	Fillister head screw	7149186707 Fillister head screw	-	6	Enquire
31	65138387414	Expanding nut	65138387414 Expanding nut 7X7 MM	-	6	Enquire
32	51415A56CC9	Door handle pin	51415A56CC9 Door handle pin	-	2	Enquire
