Trims and seals door rear of Rolls Royce Rolls Royce Cullinan RR31(2017-2023)

View All

Rolls Royce Cullinan RR31(2017-2023) - Trims and seals door rear

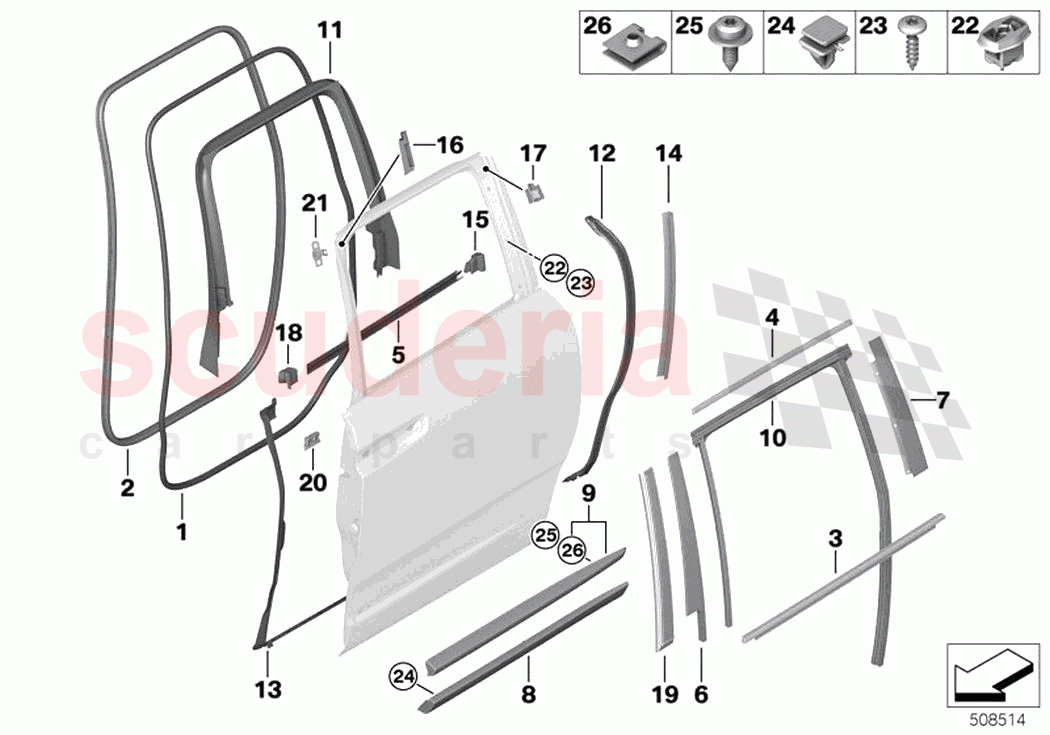

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51137448575	Door weatherstrip, rear left	Enquire	To Order
	51137448576	Door weatherstrip, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137448555	Edge protection, rear left	Enquire	To Order
	51137448556	Edge protection, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51339880999	Waistline cover, rear left	Enquire	To Order
	51339881000	Waistline cover, rear right	Enquire	To Order
	51337932457	Waistline cover, rear left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51137448531	Window frame cover, rear left door	Enquire	To Order
	51137448532	Cover, window frame, right rear door	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137448563	Inner weatherstrip, rear left door	Enquire	To Order
	51137448564	Channel seal, inner, door, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137448535	Cover, column B, door, rear left	Enquire	To Order
	51137448536	Cover, column B, door, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137448539	Cover column C left	Enquire	To Order
	51137448540	Cover column C right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137448583	Protective strip rear left bottom	Enquire	To Order
	51137448584	Protective strip rear right bottom	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51139881003	Side protective strip rear left	Enquire	To Order
	51139881004	Side protective strip rear right	Enquire	To Order
	51137448579	Side protective strip rear left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51137448541	Left rear window guide	Enquire	To Order
	51137448542	Rear right window guide	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51357448965	Cover, window frame, door, rear left	Enquire	To Order
	51357448966	Cover, window frame, rear right	Enquire	To Order
	51357448963	Cover, window frame, door rear left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51137448551	Gasket, door joint, column C,bottom left	Enquire	To Order
	51137448552	Gasket, door joint, column C,bottom rght	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137448549	Sealing of door gap rear left	Enquire	To Order
	51137448550	Sealing of door gap rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137448567	Seal, C-pillar, left	Enquire	To Order
	51137448568	Seal, C-pillar, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51338496221	Sealing, B-column, top left	Enquire	To Order
	51338496222	Sealing, B-column, top right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51338496223	Seal C-pillar top left	Enquire	To Order
	51338496224	Seal C-pillar top right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137448565	Sealing B-pillar rear door left	Enquire	To Order
	51137448566	Sealing B-pillar rear door right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137448529	Cover column B left	Enquire	To Order
	51137448530	Cover column B right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51139492989	Bracket B-pillar bottom	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51337468688	Column B cover bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51337177961	Clip, cover for column B	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147177960	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137269358	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905859	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904221	Body nut	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	51139465437	Adjusting element, left	51139465437 Adjusting element, left	-	1	Enquire
-	7130601661	Expanding nut	7130601661 Expanding nut D=6,7MM	-	2	Enquire
-	7129907533	Screw	7129907533 Screw TS4X10MM	-	2	Enquire
-	51139465438	Adjusting element, right	51139465438 Adjusting element, right	-	1	Enquire
01	51137448575	Door weatherstrip, rear left	51137448575 Door weatherstrip, rear left	-	1	Enquire
01	51137448576	Door weatherstrip, rear right	51137448576 Door weatherstrip, rear right	-	1	Enquire
02	51137448555	Edge protection, rear left	51137448555 Edge protection, rear left	-	1	Enquire
02	51137448556	Edge protection, rear right	51137448556 Edge protection, rear right	-	1	Enquire
03	51339880999	Waistline cover, rear left	51339880999 Waistline cover, rear left BLACK BADGE	-	1	Enquire
03	51339881000	Waistline cover, rear right	51339881000 Waistline cover, rear right BLACK BADGE	-	1	Enquire
03	51337932457	Waistline cover, rear left	51337932457 Waistline cover, rear left	-	1	Enquire
03	51337932458	Waistline cover, rear right	51337932458 Waistline cover, rear right	-	1	Enquire
04	51137448531	Window frame cover, rear left door	51137448531 Window frame cover, rear left door	-	1	Enquire
04	51137448532	Cover, window frame, right rear door	51137448532 Cover, window frame, right rear door	-	1	Enquire
05	51137448563	Inner weatherstrip, rear left door	51137448563 Inner weatherstrip, rear left door	-	1	Enquire
05	51137448564	Channel seal, inner, door, rear right	51137448564 Channel seal, inner, door, rear right	-	1	Enquire
06	51137448535	Cover, column B, door, rear left	51137448535 Cover, column B, door, rear left	-	1	Enquire
06	51137448536	Cover, column B, door, rear right	51137448536 Cover, column B, door, rear right	-	1	Enquire
07	51137448539	Cover column C left	51137448539 Cover column C left	-	1	Enquire
07	51137448540	Cover column C right	51137448540 Cover column C right	-	1	Enquire
08	51137448583	Protective strip rear left bottom	51137448583 Protective strip rear left bottom	-	1	Enquire
08	51137448584	Protective strip rear right bottom	51137448584 Protective strip rear right bottom	-	1	Enquire
09	51139881003	Side protective strip rear left	51139881003 Side protective strip rear left BLACK BADGE	-	1	Enquire
09	51139881004	Side protective strip rear right	51139881004 Side protective strip rear right BLACK BADGE	-	1	Enquire
09	51137448579	Side protective strip rear left	51137448579 Side protective strip rear left	-	1	Enquire
09	51137448580	Side protective strip rear right	51137448580 Side protective strip rear right	-	1	Enquire
10	51137448541	Left rear window guide	51137448541 Left rear window guide	-	1	Enquire
10	51137448542	Rear right window guide	51137448542 Rear right window guide	-	1	Enquire
11	51357448965	Cover, window frame, door, rear left	51357448965 Cover, window frame, door, rear left	-	1	Enquire
11	51357448966	Cover, window frame, rear right	51357448966 Cover, window frame, rear right	-	1	Enquire
11	51357448963	Cover, window frame, door rear left	51357448963 Cover, window frame, door rear left	-	1	Enquire
11	51357448964	Cover, window frame, door, rear right	51357448964 Cover, window frame, door, rear right	-	1	Enquire
12	51137448551	Gasket, door joint, column C,bottom left	51137448551 Gasket, door joint, column C,bottom left	-	1	Enquire
12	51137448552	Gasket, door joint, column C,bottom rght	51137448552 Gasket, door joint, column C,bottom rght	-	1	Enquire
13	51137448549	Sealing of door gap rear left	51137448549 Sealing of door gap rear left	-	1	Enquire
13	51137448550	Sealing of door gap rear right	51137448550 Sealing of door gap rear right	-	1	Enquire
15	51137448567	Seal, C-pillar, left	51137448567 Seal, C-pillar, left	-	1	Enquire
15	51137448568	Seal, C-pillar, right	51137448568 Seal, C-pillar, right	-	1	Enquire
16	51338496221	Sealing, B-column, top left	51338496221 Sealing, B-column, top left	-	1	Enquire
16	51338496222	Sealing, B-column, top right	51338496222 Sealing, B-column, top right	-	1	Enquire
17	51338496223	Seal C-pillar top left	51338496223 Seal C-pillar top left	-	1	Enquire
17	51338496224	Seal C-pillar top right	51338496224 Seal C-pillar top right	-	1	Enquire
18	51137448565	Sealing B-pillar rear door left	51137448565 Sealing B-pillar rear door left	-	1	Enquire
18	51137448566	Sealing B-pillar rear door right	51137448566 Sealing B-pillar rear door right	-	1	Enquire
19	51137448529	Cover column B left	51137448529 Cover column B left	-	1	Enquire
19	51137448530	Cover column B right	51137448530 Cover column B right	-	1	Enquire
20	51139492989	Bracket B-pillar bottom	51139492989 Bracket B-pillar bottom	-	2	Enquire
21	51337468688	Column B cover bracket	51337468688 Column B cover bracket	-	2	Enquire
22	51337177961	Clip, cover for column B	51337177961 Clip, cover for column B	-	12	Enquire
23	7147177960	Fillister head screw	7147177960 Fillister head screw 4X16	-	12	Enquire
24	51137269358	Clip	51137269358 Clip	-	8	Enquire
25	7119905859	Screw	7119905859 Screw 4,2X13	-	2	Enquire
26	7129904221	Body nut	7129904221 Body nut ST4,2-3-ZNS3	-	2	Enquire
