Trims And Seals Door Front

Rolls Royce Cullinan RR31(2017-2023)

Find Your Part

Rolls Royce Cullinan RR31(2017-2023) - Trims and seals door front

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51137448577 Door sealing front left Enquire To Order
51137448578 Door sealing front right Enquire To Order
Photo Part No Description Price (each) Stock
51137448557 Edge protection, front left Enquire To Order
51137448558 Edge protection, front right Enquire To Order
Photo Part No Description Price (each) Stock
51137448581 Side protective strip front left Enquire To Order
51137448582 Side protective strip front right Enquire To Order
51139881001 Side protective strip front left Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
51137448585 Protective strip front left bottom Enquire To Order
51137448586 Bumper strip front right bottom Enquire To Order
Photo Part No Description Price (each) Stock
51337932455 Shaft cover front door left Enquire To Order
51337932456 Shaft cover front door right Enquire To Order
51339880997 Shaft cover front door left Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
51137448533 Window frame cover, front left door Enquire To Order
51137448534 Window frame cover, front right door Enquire To Order
Photo Part No Description Price (each) Stock
51137448545 Front left window guide Enquire To Order
51137448546 Front right window guide Enquire To Order
Photo Part No Description Price (each) Stock
51137448569 Channel sealing,inside,door, front left Enquire To Order
51137448570 Channel sealing,inside,door, front right Enquire To Order
Photo Part No Description Price (each) Stock
51137448537 Cover, column B, door, front left Enquire To Order
51137448538 Cover, column B, door, front right Enquire To Order
Photo Part No Description Price (each) Stock
51337448967 Cover, window frame, door, front left Enquire To Order
51337448968 Cover, window frame, door, front right Enquire To Order
Photo Part No Description Price (each) Stock
51338496219 Sealing B-pillar front door top left Enquire To Order
51338496220 Sealing B-pillar front door top right Enquire To Order
Photo Part No Description Price (each) Stock
51137448573 Sealing, B-column, bottom left Enquire To Order
51137448574 Sealing, B-column, bottom right Enquire To Order
Photo Part No Description Price (each) Stock
51137448527 Cover, column A left Enquire To Order
51137448528 Cover, column A right Enquire To Order
Photo Part No Description Price (each) Stock
51137448525 Seal, A-pillar, left Enquire To Order
51137448526 Seal, A-pillar, right Enquire To Order
Photo Part No Description Price (each) Stock
51137448571 Sealing A-pillar left inner Enquire To Order
51137448572 Sealing A-pillar right inner Enquire To Order
Photo Part No Description Price (each) Stock
51139464279 Acoustic foam part, left Enquire To Order
51139464280 Acoustic foam part, right Enquire To Order
Photo Part No Description Price (each) Stock
51337932453 Trim strip, side frame, front left Enquire To Order
51337932454 Moulding, side frame, front right Enquire To Order
51339880995 Trim strip, side frame, front left Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
51767448553 Sealing of door gap front left Enquire To Order
51767448554 Sealing of door gap front right Enquire To Order
Photo Part No Description Price (each) Stock
51137480967 Holder, C-pillar, left Enquire To Order
51137480968 Holder, C-pillar, right Enquire To Order
Photo Part No Description Price (each) Stock
7147177960 Fillister head screw Enquire To Order
Photo Part No Description Price (each) Stock
51337177961 Clip, cover for column B Enquire To Order
Photo Part No Description Price (each) Stock
7129907271 Fillister head screw Enquire To Order
Photo Part No Description Price (each) Stock
51127020321 Expanding nut Enquire To Order
Photo Part No Description Price (each) Stock
65139907503 Screw Enquire To Order
Photo Part No Description Price (each) Stock
7119908707 Countersunk screw Enquire To Order
Photo Part No Description Price (each) Stock
7149172157 Clamp Enquire To Order
Photo Part No Description Price (each) Stock
7129904221 Body nut Enquire To Order
Photo Part No Description Price (each) Stock
51767464509 Bracket, B-pillar bottom left Enquire To Order
51767464510 Bracket, B-pillar bottom right Enquire To Order
Photo Part No Description Price (each) Stock
51767450681 Sealing, B-column, bottom left Enquire To Order
51767450682 Sealing, B-column, bottom right Enquire To Order
Photo Part No Description Price (each) Stock
7119905544 Hex nut with plate Enquire To Order
Photo Part No Description Price (each) Stock
51717444391 Crash block left top front Enquire To Order
51717444392 Crash block right top front Enquire To Order
Photo Part No Description Price (each) Stock
7129907264 Screw Enquire To Order
Photo Part No Description Price (each) Stock
51337953925 Clip, moulding, side frame Enquire To Order
51339449671 Side frame trim strip clip Enquire To Order
51339449672 Side frame trim strip clip Enquire To Order
Photo Part No Description Price (each) Stock
51338492977 Clip side frame rear Enquire To Order
51339449673 Clip side frame rear Enquire To Order
51339449674 Clip side frame rear Enquire To Order
Photo Part No Description Price (each) Stock
7119907353 Screw, self tapping Enquire To Order
View All

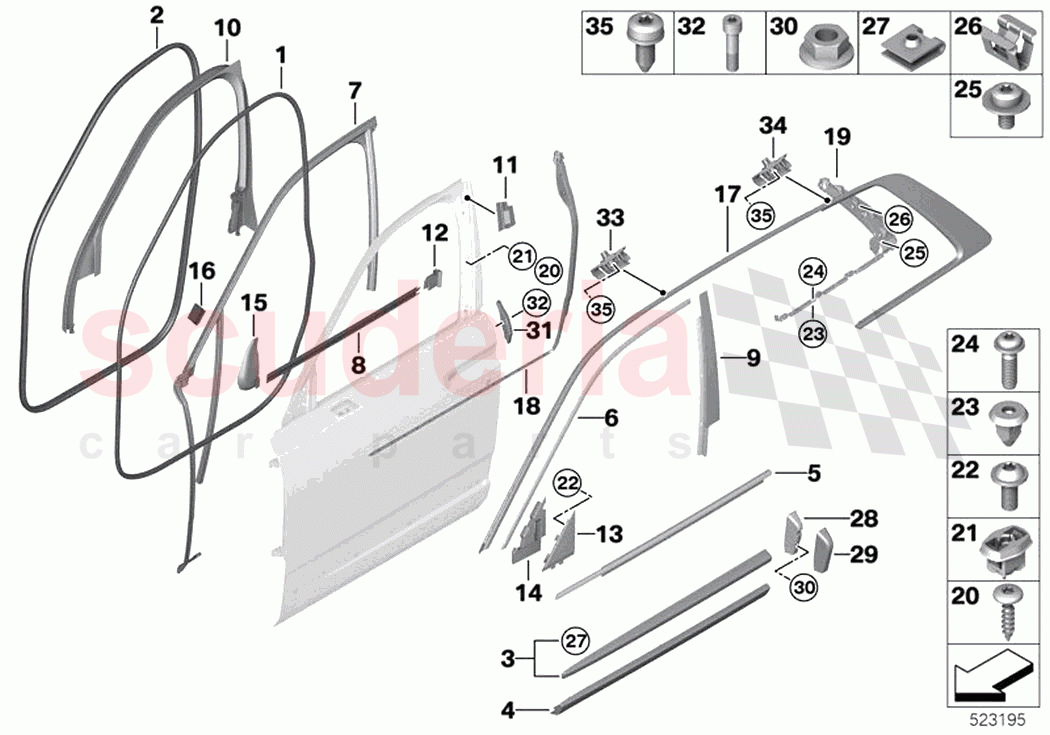

Trims and seals door front of Rolls Royce Rolls Royce Cullinan RR31(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 51137448577
Door sealing front left 		- 1 Enquire
01 51137448578
Door sealing front right 		- 1 Enquire
02 51137448557
Edge protection, front left 		- 1 Enquire
02 51137448558
Edge protection, front right 		- 1 Enquire
03 51137448581
Side protective strip front left 		- 1 Enquire
03 51137448582
Side protective strip front right 		- 1 Enquire
03 51139881001
Side protective strip front left
BLACK BADGE 		- 1 Enquire
03 51139881002
Side protective strip front right
BLACK BADGE 		- 1 Enquire
04 51137448585
Protective strip front left bottom 		- 1 Enquire
04 51137448586
Bumper strip front right bottom 		- 1 Enquire
05 51337932455
Shaft cover front door left 		- 1 Enquire
05 51337932456
Shaft cover front door right 		- 1 Enquire
05 51339880997
Shaft cover front door left
BLACK BADGE 		- 1 Enquire
05 51339880998
Shaft cover front door right
BLACK BADGE 		- 1 Enquire
06 51137448533
Window frame cover, front left door 		- 1 Enquire
06 51137448534
Window frame cover, front right door 		- 1 Enquire
07 51137448545
Front left window guide 		- 1 Enquire
07 51137448546
Front right window guide 		- 1 Enquire
08 51137448569
Channel sealing,inside,door, front left 		- 1 Enquire
08 51137448570
Channel sealing,inside,door, front right 		- 1 Enquire
09 51137448537
Cover, column B, door, front left 		- 1 Enquire
09 51137448538
Cover, column B, door, front right 		- 1 Enquire
10 51337448967
Cover, window frame, door, front left 		- 1 Enquire
10 51337448968
Cover, window frame, door, front right 		- 1 Enquire
11 51338496219
Sealing B-pillar front door top left 		- 1 Enquire
11 51338496220
Sealing B-pillar front door top right 		- 1 Enquire
12 51137448573
Sealing, B-column, bottom left 		- 1 Enquire
12 51137448574
Sealing, B-column, bottom right 		- 1 Enquire
13 51137448527
Cover, column A left 		- 1 Enquire
13 51137448528
Cover, column A right 		- 1 Enquire
14 51137448525
Seal, A-pillar, left 		- 1 Enquire
14 51137448526
Seal, A-pillar, right 		- 1 Enquire
15 51137448571
Sealing A-pillar left inner 		- 1 Enquire
15 51137448572
Sealing A-pillar right inner 		- 1 Enquire
16 51139464279
Acoustic foam part, left 		- 1 Enquire
16 51139464280
Acoustic foam part, right 		- 1 Enquire
17 51337932453
Trim strip, side frame, front left 		- 1 Enquire
17 51337932454
Moulding, side frame, front right 		- 1 Enquire
17 51339880995
Trim strip, side frame, front left
BLACK BADGE 		- 1 Enquire
17 51339880996
Moulding, side frame, front right
BLACK BADGE 		- 1 Enquire
18 51767448553
Sealing of door gap front left 		- 1 Enquire
18 51767448554
Sealing of door gap front right 		- 1 Enquire
19 51137480967
Holder, C-pillar, left 		- 1 Enquire
19 51137480968
Holder, C-pillar, right 		- 1 Enquire
20 7147177960
Fillister head screw
4X16 		- 6 Enquire
21 51337177961
Clip, cover for column B 		- 6 Enquire
22 7129907271
Fillister head screw
M4X10-8.8-ZNNIV 		- 6 Enquire
23 51127020321
Expanding nut
8X8 MM 		- 10 Enquire
24 65139907503
Screw
VS-TS5X16-R 		- 10 Enquire
25 7119908707
Countersunk screw
M5X10 		- 8 Enquire
26 7149172157
Clamp 		- 10 Enquire
27 7129904221
Body nut
ST4,2-3-ZNS3 		- 2 Enquire
28 51767464509
Bracket, B-pillar bottom left 		- 1 Enquire
28 51767464510
Bracket, B-pillar bottom right 		- 1 Enquire
29 51767450681
Sealing, B-column, bottom left 		- 1 Enquire
29 51767450682
Sealing, B-column, bottom right 		- 1 Enquire
30 7119905544
Hex nut with plate
M6-8-ZNNIV SI 		- 4 Enquire
31 51717444391
Crash block left top front 		- 1 Enquire
31 51717444392
Crash block right top front 		- 1 Enquire
32 7129907264
Screw
M6X25 		- 2 Enquire
33 51337953925
Clip, moulding, side frame
#NAME? 		- 16 Enquire
33 51339449671
Side frame trim strip clip
+ 1 FR / ORANGE 		- 16 Enquire
33 51339449672
Side frame trim strip clip
- 1 FR / BROWN 		- 16 Enquire
34 51338492977
Clip side frame rear
#NAME? 		- 8 Enquire
34 51339449673
Clip side frame rear
#NAME? 		- 8 Enquire
34 51339449674
Clip side frame rear
#NAME? 		- 8 Enquire
35 7119907353
Screw, self tapping
ST4,8X13 ZNS3 		- 24 Enquire
