McLaren Ultimate Series McLaren Elva - 31 - COOLING SYSTEM - 31.4 - LOW TEMPERATURE CIRCUIT & PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

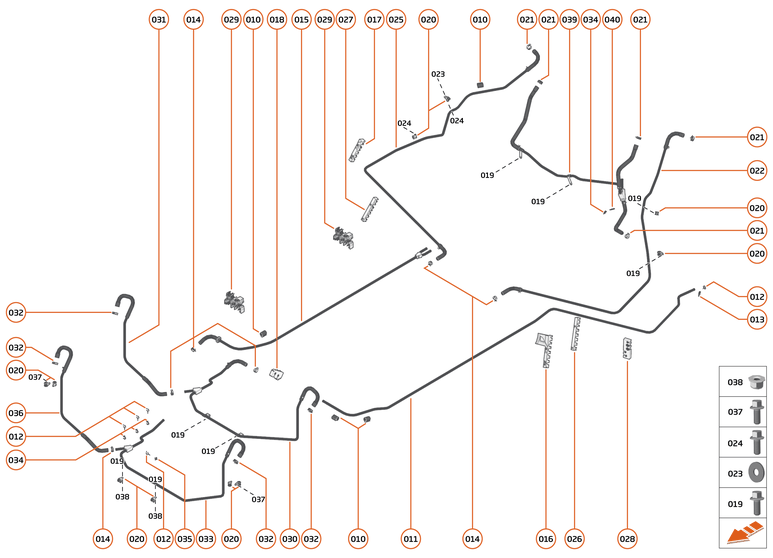

31 - COOLING SYSTEM - 31.4 - LOW TEMPERATURE CIRCUIT & PIPES of McLaren McLaren Ultimate Series McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA357
PIPE PROTECTOR
Row ID: ID__00RA357_ContPgHS; 		- 4 Enquire
011 14L0068CP
HOSE - LTR CIRCUIT - FEED - CENTRE
Row ID: ID__14L0068CP_ContPgHS; 		- 1 Enquire
012 00RB034
CLIP - 14-15MM - MALE
Row ID: ID__00RB034_ContPgHS; 		- 5 Enquire
013 00RB007
CLIP - 18-20MM - FEMALE
Row ID: ID__00RB007_ContPgHS; 		- 1 Enquire
014 00RB201
CLAMP - SPRING BAND - 21X12
Row ID: ID__00RB201_ContPgHS; 		- 6 Enquire
015 14L0069CP
HOSE - LTR CIRCUIT - RETURN - CENTRE
Row ID: ID__14L0069CP_ContPgHS; 		- 1 Enquire
016 15LA038CP
CLIP - CHASSIX TUNNES
Row ID: ID__15LA038CP_ContPgHS; 		- 1 Enquire
017 14L0151CP
PIPE CLIP - 8 WAY
Row ID: ID__14L0151CP_ContPgHS; 		- 1 Enquire
018 14LA022CP
CLIP - 4WAY - RH
Row ID: ID__14LA022CP_ContPgHS; 		- 1 Enquire
019 00RA313
SCREW - M6X16 - HEX - SILVER
Row ID: ID__00RA313_ContPgHS; 		- 6 Enquire
020 00RB191
P-CLIP - 14X15
Row ID: ID__00RB191_ContPgHS; 		- 10 Enquire
021 00RB202
CLAMP - SPRING BAND - 23X12
Row ID: ID__00RB202_ContPgHS; 		- 5 Enquire
022 15L0055CP
HOSE - TUNNEL TO WCAC - LH
Row ID: ID__15L0055CP_ContPgHS; 		- 1 Enquire
023 00RC113
SPACER - NYLON - 6.6X17.45X1.05
Row ID: ID__00RC113_ContPgHS; 		- 1 Enquire
024 00RA083
SCREW - M6X20 - FLANGE HEX
Row ID: ID__00RA083_ContPgHS; 		- 2 Enquire
025 15LA063CP
HOSE - TUNNEL TO WCAC - RH
Row ID: ID__15LA063CP_ContPgHS; 		- 1 Enquire
026 15LA068CP
PIPE CLIP-RR-LH-EXTENDED
Row ID: ID__15LA068CP_ContPgHS; 		- 1 Enquire
027 13L0211CP
PIPE CLIP - REAR - RIGHT
Row ID: ID__13L0211CP_ContPgHS; 		- 1 Enquire
028 13L0224CP
PIPE CLIP - 5 WAY
Row ID: ID__13L0224CP_ContPgHS; 		- 1 Enquire
029 14L0125CP
CLIP - TUNNEL - 12 WAY
Row ID: ID__14L0125CP_ContPgHS; 		- 2 Enquire
030 26LA044SP
HOSE-TUNNEL-TO-LTR LH
Row ID: ID__26LA044SP_ContPgHS; 		- 1 Enquire
031 26LA094SP
HOSE-TUNNEL-TO-LTR RH
Row ID: ID__26LA094SP_ContPgHS; 		- 1 Enquire
032 00RB233
CLMP-SPRGBAND-LO PRO-25X12-STL
Row ID: ID__00RB233_ContPgHS; 		- 4 Enquire
033 26LA042SP
HOSE-LTR LH-TO-TUNNEL
Row ID: ID__26LA042SP_ContPgHS; 		- 1 Enquire
034 00RB032
CLIP - 13-14MM - FEMALE
Row ID: ID__00RB032_ContPgHS; 		- 4 Enquire
035 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE
Row ID: ID__00RG019_ContPgHS; 		- 1 Enquire
036 26LA093SP
HOSE-LTR RH-TO-TUNNEL
Row ID: ID__26LA093SP_ContPgHS; 		- 1 Enquire
037 00RX001
BOLT - M5X16 - HEX
Row ID: ID__00RX001_ContPgHS; 		- 2 Enquire
038 00RA011
NUT-HEX HEAD-FLANGE-M6-8
Row ID: ID__00RA011_ContPgHS; 		- 2 Enquire
039 15L0059CP
HOSE - WCAC TO PUMP
Row ID: ID__15L0059CP_ContPgHS; 		- 1 Enquire
040 00RG018
SWIVEL CLIP - 22-24MM -MALE
Row ID: ID__00RG018_ContPgHS; 		- 1 Enquire
