25 - NVH - HEAT INSULATION - 25.2 - INSULATION - VEHICLE MOUNTED of McLaren McLaren Ultimate Series McLaren Elva

View All

McLaren Ultimate Series McLaren Elva - 25 - NVH - HEAT INSULATION - 25.2 - INSULATION - VEHICLE MOUNTED

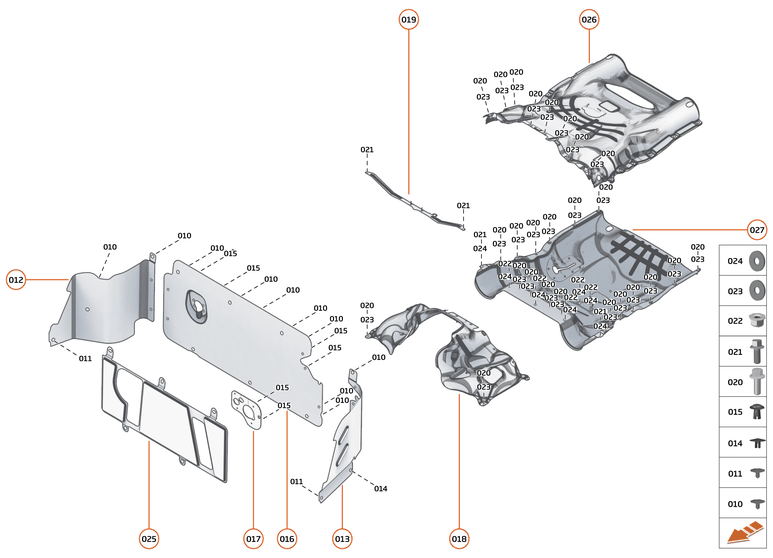

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID__00RA087_ContPgHS;	-	1	Enquire
010	00RG003	FIRTREE 7.2X15X24	00RG003 FIRTREE 7.2X15X24 Row ID: ID__00RG003_ContPgHS;	-	9	Enquire
011	00RG054	CLIP - FIRTREE - 8X14	00RG054 CLIP - FIRTREE - 8X14 Row ID: ID__00RG054_ContPgHS;	-	2	Enquire
012	14E0066CP	HEATSHIELD - BULKHEAD - RH	14E0066CP HEATSHIELD - BULKHEAD - RH Row ID: ID__14E0066CP_ContPgHS;	-	1	Enquire
013	15EA014CP	HEATSHIELD - BULKHEAD - LH	15EA014CP HEATSHIELD - BULKHEAD - LH Row ID: ID__15EA014CP_ContPgHS;	-	1	Enquire
014	00RM005	ANIXTER RIVET - BLACK	00RM005 ANIXTER RIVET - BLACK Row ID: ID__00RM005_ContPgHS;	-	1	Enquire
015	00RA146	SCRIVET - DIA 8 X 14	00RA146 SCRIVET - DIA 8 X 14 Row ID: ID__00RA146_ContPgHS;	-	7	Enquire
016	14E0074CP	NVH - BULKHEAD - CENTRE	14E0074CP NVH - BULKHEAD - CENTRE Row ID: ID__14E0074CP_ContPgHS;	-	1	Enquire
016	14E0025CP	HEATSHIELD - BULKHEAD - CENTRE - HEATSHIELD CTR-BULKHEAD	14E0025CP HEATSHIELD - BULKHEAD - CENTRE - HEATSHIELD CTR-BULKHEAD Row ID: ID__14E0025CP_ContPgHS;	-	1	Enquire
017	14H0083CP	GASKET - BULKHEAD	14H0083CP GASKET - BULKHEAD Row ID: ID__14H0083CP_ContPgHS;	-	1	Enquire
018	26EA041SP	HEATSHIELD UPR FR - MUFFLER	26EA041SP HEATSHIELD UPR FR - MUFFLER Row ID: ID__26EA041SP_ContPgHS;	-	1	Enquire
019	26EA040SP	BRKT LWR HEATSHIELD MUFFLER	26EA040SP BRKT LWR HEATSHIELD MUFFLER Row ID: ID__26EA040SP_ContPgHS;	-	1	Enquire
020	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	26	Enquire
021	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID__00RA064_ContPgHS;	-	4	Enquire
022	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID__00RA582_ContPgHS;	-	5	Enquire
023	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Row ID: ID__00RC077_ContPgHS;	-	26	Enquire
024	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2 Row ID: ID__00RC017_ContPgHS;	-	7	Enquire
026	26EA045SP	HEATSHIELD UPPER REAR - MUFFLER NO VALVES	26EA045SP HEATSHIELD UPPER REAR - MUFFLER NO VALVES Row ID: ID__26EA045SP_ContPgHS;	-	1	Enquire
027	26EA043SP	HEATSHIELD LOWER - MUFFLER	26EA043SP HEATSHIELD LOWER - MUFFLER Row ID: ID__26EA043SP_ContPgHS;	-	1	Enquire
