McLaren Ultimate Series McLaren Elva - 26 - AIR INDUCTION SYSTEMS - AIS - 26.1 - AIS - LOW PRESSURE SYSTEM

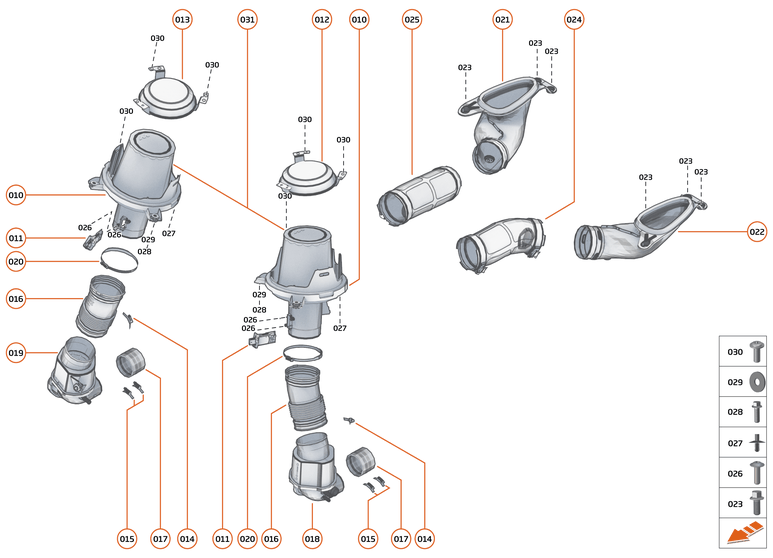

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15FA346CP	AIR FILTER HOUSING	15FA346CP AIR FILTER HOUSING Row ID: ID__15FA346CP_ContPgHS;	-	2	Enquire
011	14F0362CP	SENSOR - MASS AIR FLOW	14F0362CP SENSOR - MASS AIR FLOW Row ID: ID__14F0362CP_ContPgHS;	-	2	Enquire
012	26FA206SP	ASSY - AIR FILTER RETAINER - LH	26FA206SP ASSY - AIR FILTER RETAINER - LH Row ID: ID__26FA206SP_ContPgHS;	-	1	Enquire
013	26FA220SP	ASSY - AIR FILTER RETAINER - RH	26FA220SP ASSY - AIR FILTER RETAINER - RH Row ID: ID__26FA220SP_ContPgHS;	-	1	Enquire
014	00RB031	CLAMP - HOSE - 90-110	00RB031 CLAMP - HOSE - 90-110 Row ID: ID__00RB031_ContPgHS;	-	2	Enquire
015	00RB030	HOSE CLAMP - 60-80 - NORMA TORRO	00RB030 HOSE CLAMP - 60-80 - NORMA TORRO Row ID: ID__00RB030_ContPgHS;	-	4	Enquire
016	15FA028CP	TUBE - CLEAR AIR DUCT	15FA028CP TUBE - CLEAR AIR DUCT Row ID: ID__15FA028CP_ContPgHS;	-	2	Enquire
017	15FA188CP	COUPLING SLEEVE - CLEAN AIR DUCT	15FA188CP COUPLING SLEEVE - CLEAN AIR DUCT Row ID: ID__15FA188CP_ContPgHS;	-	2	Enquire
018	15FA192CP	RESONATOR - CLEAN AIR DUCT - LH	15FA192CP RESONATOR - CLEAN AIR DUCT - LH Row ID: ID__15FA192CP_ContPgHS;	-	1	Enquire
019	15FA193CP	RESONATOR - CLEAN AIR DUCT - RH	15FA193CP RESONATOR - CLEAN AIR DUCT - RH Row ID: ID__15FA193CP_ContPgHS;	-	1	Enquire
020	00RB228	CLMP-HOSE-WORM DR CT-110X9-SS-	00RB228 CLMP-HOSE-WORM DR CT-110X9-SS- Row ID: ID__00RB228_ContPgHS;	-	2	Enquire
021	26FA091SP	ASSY - DAD TO POROUS - RH	26FA091SP ASSY - DAD TO POROUS - RH Row ID: ID__26FA091SP_ContPgHS;	-	1	Enquire
022	26FA090SP	ASSY - DAD TO POROUS - LH	26FA090SP ASSY - DAD TO POROUS - LH Row ID: ID__26FA090SP_ContPgHS;	-	1	Enquire
023	00RA689	BTN HD FL-M6X12-SS BLACK TORX - BTN HD FL-M6X12-SS BLACK TORX	00RA689 BTN HD FL-M6X12-SS BLACK TORX - BTN HD FL-M6X12-SS BLACK TORX Row ID: ID__00RA689_ContPgHS;	-	6	Enquire
024	26FA103SP	ASSY - FRAME - POROUS DUCT LH	26FA103SP ASSY - FRAME - POROUS DUCT LH Row ID: ID__26FA103SP_ContPgHS;	-	1	Enquire
025	26FA104SP	ASSY - FRAME - POROUS DUCT RH	26FA104SP ASSY - FRAME - POROUS DUCT RH Row ID: ID__26FA104SP_ContPgHS;	-	1	Enquire
026	00RA363	SCREW - TORX - 4X12	00RA363 SCREW - TORX - 4X12 Row ID: ID__00RA363_ContPgHS;	-	4	Enquire
027	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Row ID: ID__00RG019_ContPgHS;	-	2	Enquire
028	00RA581	BOLT - HEX HEAD - FLANGE - M6X30	00RA581 BOLT - HEX HEAD - FLANGE - M6X30 Row ID: ID__00RA581_ContPgHS;	-	2	Enquire
029	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID__00RC043_ContPgHS;	-	2	Enquire
030	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID__00RA468_ContPgHS;	-	6	Enquire
031	26FA246SP	AIR FILTER IN STOCK	26FA246SP AIR FILTER AIR FILTER; Row ID: ID__26FA246SP_ContPgHS; IN STOCK	$182.79	2
