27 - Acoustic System - 27.1 - Exhaust Sound Generator (Esg)

McLaren Ultimate Series McLaren Elva

Find Your Part

McLaren Ultimate Series McLaren Elva - 27 - ACOUSTIC SYSTEM - 27.1 - EXHAUST SOUND GENERATOR (ESG)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

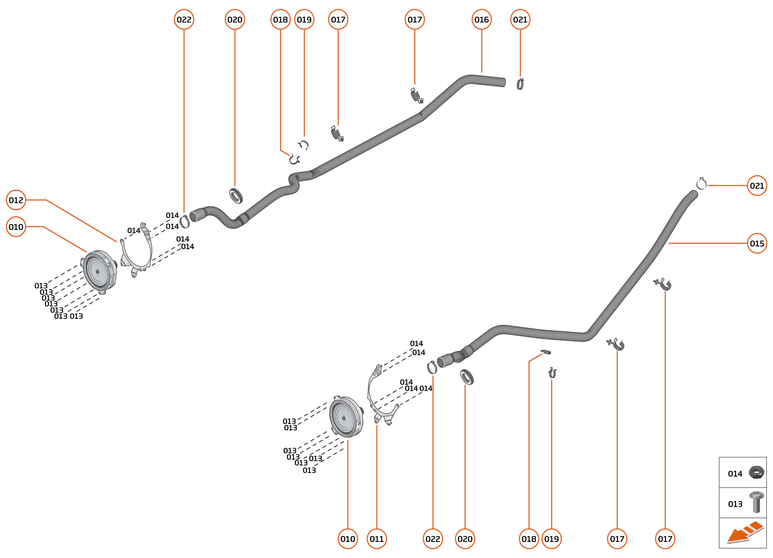

27 - ACOUSTIC SYSTEM - 27.1 - EXHAUST SOUND GENERATOR (ESG) of McLaren McLaren Ultimate Series McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16HA283CP
ESG SYMPOSER
Row ID: ID__16HA283CP_ContPgHS; 		- 2 Enquire
011 26HA055SP
BRACKET - ESG SYMPOSER - LH
Row ID: ID__26HA055SP_ContPgHS; 		- 1 Enquire
012 26HA059SP
BRACKET - ESG SYMPOSER - RH
Row ID: ID__26HA059SP_ContPgHS; 		- 1 Enquire
013 00RA451
SCREW - M4X16 - BUTTON - FLANGED - BLACK
Row ID: ID__00RA451_ContPgHS; 		- 14 Enquire
014 00RA185
HEX NUT - M4 - PLAIN
Row ID: ID__00RA185_ContPgHS; 		- 10 Enquire
015 26HA060SP
HOSE - ESG - LH - RR
Row ID: ID__26HA060SP_ContPgHS; 		- 1 Enquire
016 26HA061SP
HOSE - ESG - RH - RR
Row ID: ID__26HA061SP_ContPgHS; 		- 1 Enquire
017 00RG017
Firtree C Clip - 25-27mm
Row ID: ID__00RG017_ContPgHS; 		- 4 Enquire
018 00RG020
Swivel Clip - 20-24.5mm - Female
Row ID: ID__00RG020_ContPgHS; 		- 2 Enquire
019 00RG018
SWIVEL CLIP - 22-24MM -MALE
Row ID: ID__00RG018_ContPgHS; 		- 2 Enquire
020 00RG047
GROMMET - OPEN - 38.1
Row ID: ID__00RG047_ContPgHS; 		- 2 Enquire
021 00RB154
Hose Clamp - Oetiker - 27.1
Row ID: ID__00RB154_ContPgHS; 		- 2 Enquire
022 00RB222
CLAMP-STEPLESS EAR-OETIKER-31.
Row ID: ID__00RB222_ContPgHS; 		- 2 Enquire
